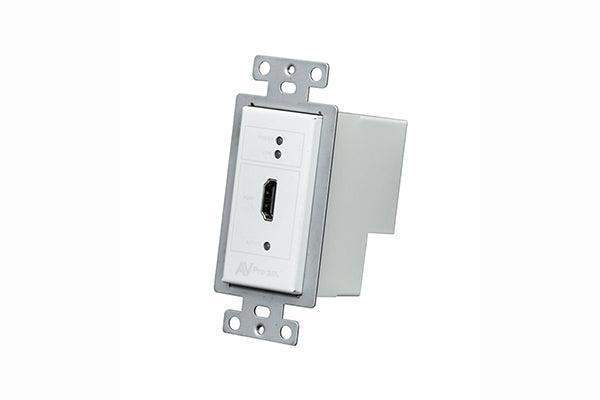

AVPro Edge AC-CXWP-HDMO-T HDMI Wall Plate Transmitter via HDBaseT

Overview

The AVPro Edge AC-CXWP-HDMO-T is a single-gang HDBaseT wall plate transmitter that accepts an HDMI source and extends it over a single CAT-6A cable to a compatible HDBaseT receiver. Part of the ConferX professional AV product line, it is designed for conference rooms, classrooms, and corporate meeting spaces where a clean, permanent HDMI connection point is required at the table or wall—without the need for local power or visible cable runs to the display.

Description

The AC-CXWP-HDMO-T installs into any standard single-gang Decora mud ring and connects via a straight-in rear RJ45 jack to the CAT-6A infrastructure run to the receiver location. HDMI auto-sensing means the wall plate activates the moment a source is connected—no configuration or user input needed. Paired with a compatible receiver such as the AC-EX70-444-RNE-P or AC-EX100-UHD-R, the unit delivers 1080p signals up to 100 meters (330 ft) and 4K signals up to 70 meters (230 ft). PoE power is sourced from the receiver, so no electrical outlet is required at the wall plate installation point.

The transmitter supports HDCP 2.2 and earlier, passes HDR 4:2:2 12-bit content, and handles the full range of uncompressed and lossless audio formats including Dolby TrueHD, DTS-HD Master Audio, and Atmos. ESD protection up to 7kV is integrated on all inputs and outputs. A 10-year warranty is standard for the ConferX product line.

Key Features

• HDMI 2.0 (a/b) input with automatic signal sensing
• HDBaseT output over single CAT-6A cable (no HDMI cable to the display)
• 1080p up to 100 meters (330 ft); 4K up to 70 meters (230 ft) with compatible receiver
• 4K 30Hz 4:4:4 and 4K 60Hz 4:2:0 HDMI resolution support
• HDR 4:2:2 12-bit and HDCP 2.2 compliance
• PoE-powered from receiver — no local power outlet at wall plate required
• CEC passthrough for display power management
• Audio: PCM 2ch/5.1/7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio, Atmos
• ESD protection up to 7kV on all inputs and outputs
• Single-gang Decora form factor — fits standard US electrical boxes and mud rings
• Straight-in rear RJ45 for low-profile, clean wall installation
• Cascade-capable for extended distance runs
• 10-year AVPro Edge ConferX warranty

Typical Applications

• Corporate conference rooms requiring a permanent, clean HDMI input at the conference table or presentation wall
• Classrooms and lecture halls where instructor laptops or media players connect to ceiling-mounted projectors via HDBaseT
• Huddle rooms and collaboration spaces with a single display fed from a fixed HDMI connection point
• Hotel meeting rooms, ballrooms, and event spaces requiring distributed HDMI presentation points
• House of worship auditoriums with front-of-stage HDMI input feeding production displays
• Control rooms and broadcast environments connecting local HDMI sources to remote displays over structured cabling

Technical Specs

Competitor Comparison

FAQ

What is the difference between the AC-CXWP-HDMO-T and the AC-CXWP-VGA-T?

The AC-CXWP-HDMO-T is an HDMI-only wall plate transmitter, ideal for rooms where all sources use HDMI. The AC-CXWP-VGA-T adds a VGA input for environments where older VGA sources must also be accommodated. If your installation has no legacy VGA devices, the HDMO-T provides a cleaner, simpler connection point.

Does the AC-CXWP-HDMO-T require a local power outlet at the wall plate?

No. Power is delivered via PoE from the paired HDBaseT receiver. No electrical outlet is required at the transmitter location, which simplifies both new construction and retrofit installations.

What receiver should be paired with the AC-CXWP-HDMO-T for 4K?

For 4K HDBaseT operation, pair with the AVPro Edge AC-EX70-444-RNE-P or AC-EX100-UHD-R. These receivers provide the PoE power and HDBaseT signal processing required for full 4K performance at distance.

Can the unit be cascaded for longer runs?

Yes. The AC-CXWP-HDMO-T supports cascading with compatible HDBaseT extenders for installations requiring signal runs beyond standard HDBaseT distances.

What is the CAT cable requirement?

CAT-6A is required for 4K at 70 meters (230 ft). At 1080p, runs up to 100 meters (330 ft) are supported on CAT-6A. CAT-5e is not recommended for 4K distance runs.
