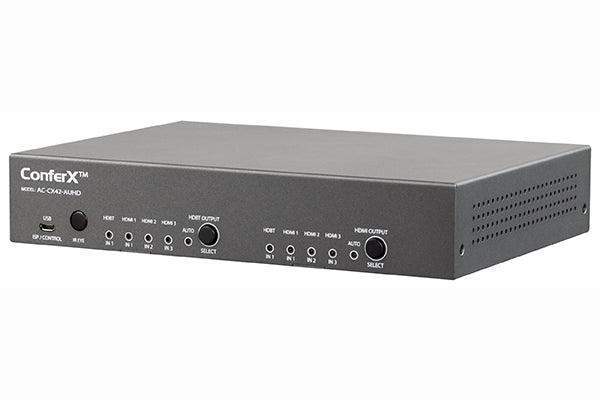

AVPro Edge AC-CX42-AUHD Four Input, Two Output Video Matrix Switcher from ConferX with HDMI and HDBaseT Inputs and Outputs

Product Overview

The AVPro Edge AC-CX42-AUHD is a compact 4x2 matrix switcher from the ConferX line, purpose-built for conference rooms, classrooms, and collaborative meeting spaces. It accepts four video inputs — two HDMI and two HDBaseT — and routes them to two outputs: one HDMI and one HDBaseT, allowing simultaneous local and remote display coverage. Auto-switching mode detects active sources and changes inputs automatically, reducing the need for manual control in high-traffic rooms. Built-in support for RS-232, IR, and CEC provides full integration with room control systems.

Product Description

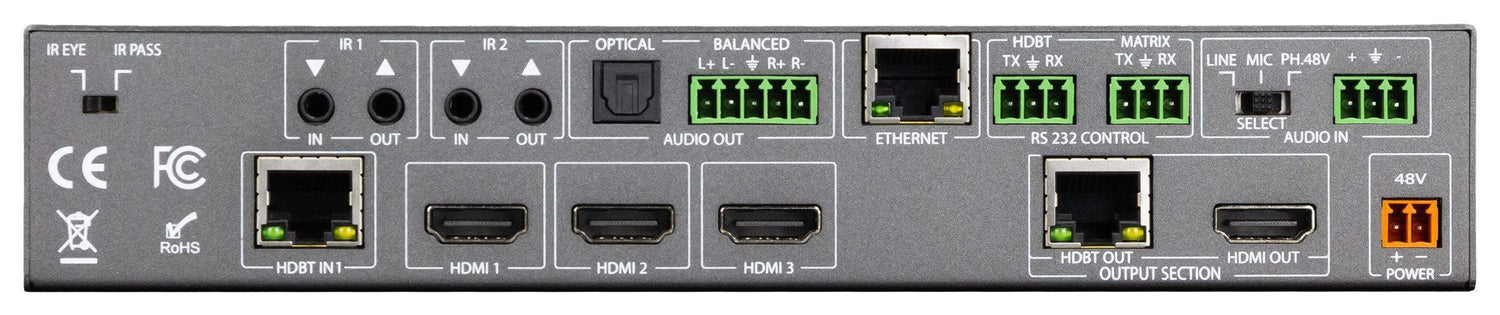

The AC-CX42-AUHD combines a mixed HDMI/HDBaseT input stage with an HDMI plus HDBaseT output stage, giving installers flexibility to connect both short-run HDMI sources and long-run HDBaseT transmitters in the same matrix. The HDBaseT output extends video up to 100 meters over a single Cat5e/6 cable, eliminating the need for a separate extender in rooms where the display is mounted at a distance. Video is delivered at up to 4K UHD at 60Hz with 4:2:0 chroma subsampling and HDCP 2.2 compliance. Audio de-embedding is included, allowing the audio feed to be broken out to a separate amplifier or DSP without additional hardware. The ConferX platform is designed for straightforward deployment: units are pre-configured for common room types and can be customized through RS-232, IR, or front-panel controls.

Key Features

• 4x2 Matrix Architecture — Four inputs and two independent outputs allow any source to be routed to either display simultaneously.
• Mixed HDMI and HDBaseT I/O — Accepts local HDMI sources and remote HDBaseT transmitters; outputs to both local HDMI and distant HDBaseT displays in the same unit.
• 4K UHD 60Hz Support — Delivers 4K video at 60Hz (4:2:0) for compatibility with current display standards.
• HDCP 2.2 Compliant — Handles protected content from streaming devices, Blu-ray players, and cable/satellite boxes without decryption errors.
• HDBaseT Output to 100 Meters — Routes video and audio to a display up to 328 feet away over a single Cat5e/6 cable, eliminating the need for a separate extender.
• Auto-Switching — Detects newly active sources and switches automatically, reducing AV support calls in unmanaged spaces.
• Audio De-Embedding — Breaks out audio independently for connection to room amplifiers, sound bars, or DSP units.
• Multiple Control Options — Supports RS-232, IR, CEC, and front-panel switching for integration with any control system or standalone use.

Typical Applications

• Conference rooms requiring local laptop HDMI input plus remote HDBT sources from a rack or ceiling
• Classrooms with a local teacher station and a remote collaborative display or projector
• Training rooms and huddle spaces where auto-switching simplifies presenter changeover
• Corporate AV systems where the display is more than 15 feet from the source rack

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Can the AC-CX42-AUHD be controlled without a third-party control system?
Yes. The unit supports front-panel input selection and CEC pass-through, allowing basic control directly from a connected display or remote without any external control system.

Does the HDBaseT output require a compatible receiver at the display end?
Yes. An HDBaseT receiver (sold separately) is required at the display end of the Cat5e/6 run to convert the signal back to HDMI for the display.

Is 4K 4:4:4 supported?
The AC-CX42-AUHD supports 4K UHD at 60Hz with 4:2:0 chroma subsampling. For full 4:4:4 at 4K60, an 18Gbps ICT-based extender platform such as the AXION or AC-EX series would be more appropriate.

What happens if two sources become active at the same time in auto-switch mode?
The unit prioritizes the most recently active input. Switching priority can also be configured manually via RS-232 commands.
