AVPro Edge AC-AXION-X Customizable Video Distribution System

Product Overview

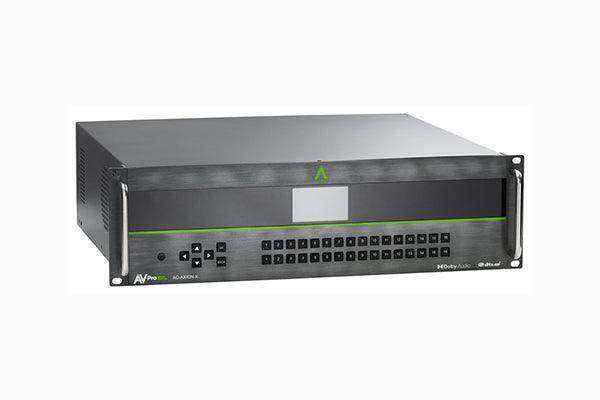

The AVPro Edge AC-AXION-X is a fully modular, customizable HDMI matrix switcher designed for large-scale commercial AV installations requiring precise control over signal types and counts. Built on a card-based architecture, this configurable AV matrix supports up to 16 inputs and 16 outputs using field-selectable card pairs — HDMI, HDMI with scaling, or HDBaseT — giving integrators the flexibility to match the exact requirements of each project. With native 4K60 4:4:4 at 18Gbps over HDMI 2.0 and optional Dolby Atmos downmixing, the AXION-X handles the most demanding modular video distribution matrix requirements in boardrooms, control rooms, and large commercial installations. Third-party control drivers for Crestron, Control4, RTI, and ELAN are included.

Product Description

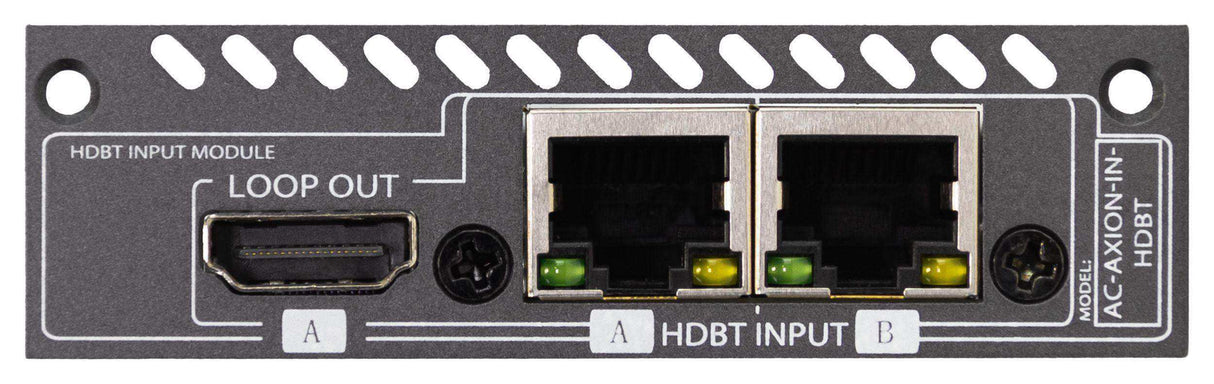

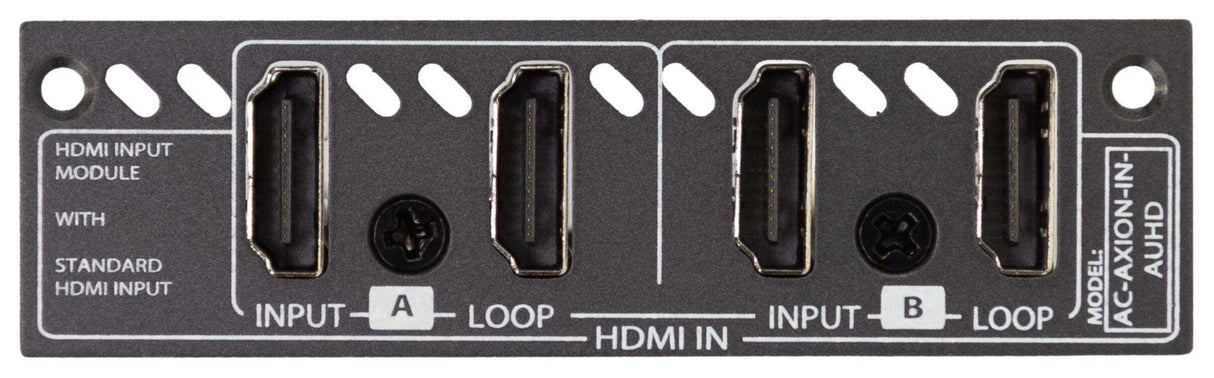

The AC-AXION-X chassis accepts up to 8 card slots, with each slot accepting one input/output card pair — yielding configurations up to 16x16. Available card types include standard HDMI 2.0 (18Gbps), HDMI with MCS (Mission Critical Scaling) output processing, and HDBaseT using ICT (Invisible Compression Technology) for long-distance runs. This design means you only pay for the I/O types you actually need, and the system can be reconfigured as requirements change.

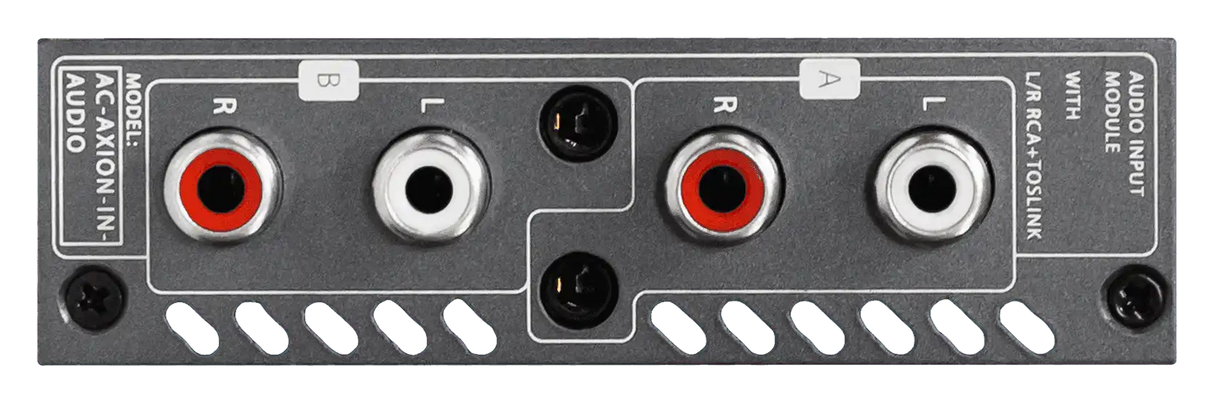

Optional audio downmixing cards add Dolby Atmos and DTS:X decoding per input, with three audio routing modes: bound to input, bound to output, or as an independent audio matrix. Each output supports independent volume control plus dual de-embedding — balanced analog (always 2-channel downmixed) and digital Toslink (7-channel LPCM, Dolby Digital, DTS). The onboard EDID library includes 29 entries with dedicated HDR EDIDs, covering HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK formats at up to 12-bit deep color.

System control is handled through the AEUI (AVPro Edge User Interface), a web-based, mobile-friendly dashboard that provides live diagnostics, routing control, and EDID management from any browser on the same network. The front panel control screen allows direct routing without a laptop. IR, RS-232, and LAN control are all supported natively. Ordering follows a three-step process: select the base chassis, add input/output card pairs, then add optional downmixing cards and HDBaseT endpoint devices as needed.

Key Features

• Modular Card-Based Architecture — Up to 16 inputs and 16 outputs configured via user-selected card pairs; adjust I/O type and count without replacing the chassis.
• HDMI 2.0(a/b) with 18Gbps Bandwidth — Supports 4K60 4:4:4 at full color depth without compression on HDMI card types.
• HDCP 2.3 Compliant — Full compliance through the matrix ensures protected content passes without handshake failures.
• Full HDR Format Support — HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK formats supported at up to 12-bit deep color.
• Optional Dolby Atmos and DTS:X Downmixing — Add downmixing cards per input to decode object-based audio and distribute it over analog or digital outputs.

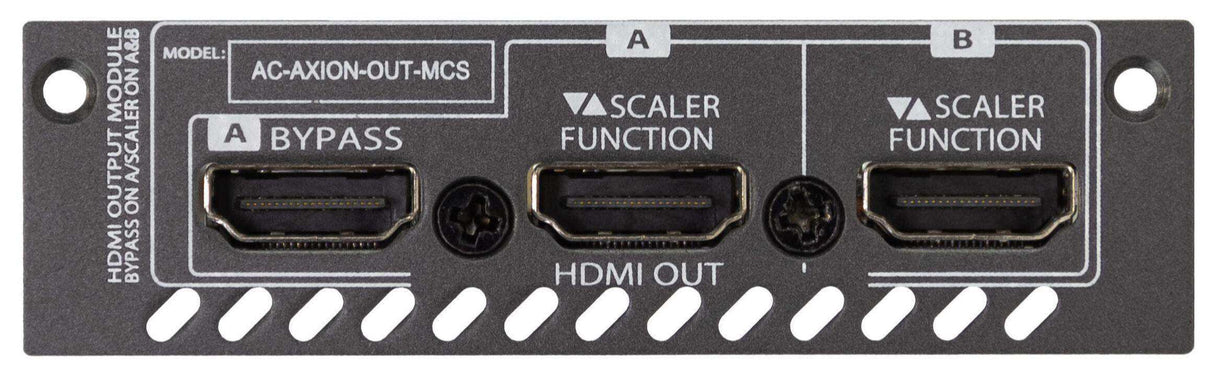

• MCS (Mission Critical Scaling) — Output cards with MCS technology handle resolution scaling on-board, eliminating the need for external scalers at displays.
• ICT HDBaseT Outputs — Invisible Compression Technology on HDBaseT output cards enables long-distance signal distribution without visible quality loss.
• AEUI Web Interface — Browser-based, mobile-friendly control panel provides real-time diagnostics, routing changes, and EDID management from the field.
• 29 Onboard EDIDs — Includes dedicated HDR EDIDs to prevent negotiation issues with displays that misreport capabilities.
• Dual Audio De-embedding — Each output provides balanced analog (2CH) and Toslink digital (7CH LPCM, Dolby Digital, DTS) simultaneously.
• Three Audio Routing Modes — Audio can follow the video input, follow the video output, or operate as an independent audio matrix.
• Third-Party Control Drivers Included — Native drivers for Crestron, Control4, RTI, and ELAN reduce integration time on certified control systems.

Typical Applications

• Corporate boardrooms and executive conference centers requiring mixed HDMI and HDBaseT distribution
• Higher education lecture halls and auditoriums with multiple source and display zones
• Broadcast control rooms and production environments with 4K HDR source management
• Government and military command and control rooms
• Hotel and hospitality AV systems with large display counts
• Large-venue digital signage infrastructure requiring centralized signal management
• System integrator rack builds where exact I/O counts must be matched to a specific design

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How do I order the correct configuration?

Order the AC-AXION-X base chassis first. Then select input/output card pairs in the quantity and type required for your design — each card slot accepts one pair. Add optional audio downmixing cards per input if Dolby Atmos or DTS:X decoding is needed. Finally, add compatible HDBaseT transmitters and receivers for any HDBaseT outputs.

Can I mix HDMI and HDBaseT I/O on the same chassis?

Yes. Each card slot is independent, so you can populate some slots with HDMI cards and others with HDBaseT cards in any combination up to 16 total inputs and 16 total outputs.

What is the maximum cable run for HDBaseT outputs?

HDBaseT outputs using ICT (Invisible Compression Technology) support standard HDBaseT distances — typically up to 100 meters (328 feet) over Category cable when paired with compatible AVPro Edge HDBaseT receivers.

Does the system require a control processor to operate?

No. The AXION-X operates standalone using the AEUI web interface or the onboard front panel display. A control system (Crestron, Control4, RTI, ELAN) is optional for automation integration.

Does the Dolby Atmos downmixing work on all inputs?

Dolby Atmos and DTS:X downmixing is available per input by adding the optional downmixing card for that input slot. It is not a chassis-wide feature — each input requiring downmixing needs its own card.

What HDR formats are supported?

The AC-AXION-X supports HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK formats at up to 12-bit deep color. The 29-entry onboard EDID library includes dedicated HDR EDIDs for reliable display negotiation.

Which third-party control systems have certified drivers?

AVPro Edge provides certified drivers for Crestron, Control4, RTI, and ELAN. These drivers are included with the product and allow the AXION-X to be integrated into existing control system projects without custom programming from scratch.
