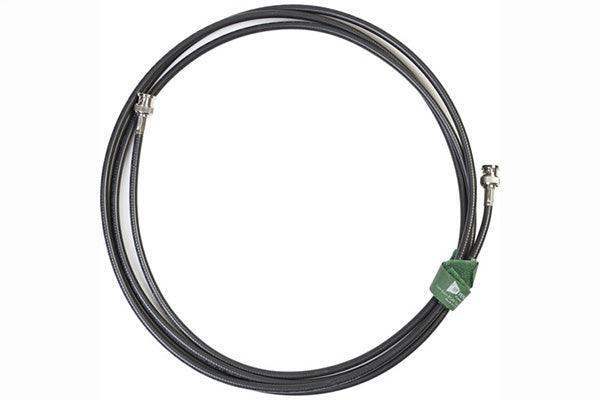

RF Venue RG8X75 – 75 ft Low-Loss RG8X Coaxial Cable, Black

Product Overview

The RF Venue RG8X75 is a 75-foot RG8X coaxial cable suited for medium-distance antenna feed runs in mid-size venues. At 75 feet, it handles the gap between shorter in-room runs and longer cross-venue pulls, covering scenarios such as side-stage antenna positions to front-of-house racks or balcony antenna placements in smaller rooms. It is a common specification length for integrators working in corporate boardrooms, hotel ballrooms, and mid-capacity performance spaces.

Product Description

The RG8X75 is used to feed wireless microphone and IEM antenna signals from a remote antenna position to a receiver rack over a 75-foot run. Double-shielded construction — braid over foil — limits RF interference ingress while keeping the cable manageable for conduit and cable tray routing. At 75 feet, RG8X cable loss is well within the operational range of professional wireless systems without the need for amplification in most cases. Each cable is manufactured in the USA and QC tested on calibrated Agilent network analyzers to confirm RF performance before shipment. BNC male connectors on both ends are compatible with the antenna inputs on professional wireless receivers and antenna distribution systems. The 50Ω impedance is matched throughout for wireless microphone and IEM antenna feed applications.

Key Features

• Double-Shielded Construction — Braid over foil shielding balances low signal loss with flexibility for routing through conduit and cable trays.
• 50Ω Impedance — Matched impedance for wireless microphone and IEM antenna distribution systems.
• BNC Male Connectors — Both ends terminated with BNC male connectors, the standard for professional wireless audio applications.
• Made in USA — Manufactured and QC tested in the USA on calibrated Agilent network analyzers for guaranteed RF performance.
• Low Loss — Premium RG8X construction minimizes signal attenuation over the cable run.

Technical Specifications
