RF Venue COMB8CP-ARCB – 8-Channel IEM Pack with Black CP Architectural Antenna

Product Overview

The RF Venue COMB8CP-ARCB is a complete 8-channel in-ear monitor system bundle pairing the COMBINE8 IEM transmitter combiner with the black CP Architectural Antenna. This is the black-finish variant of the COMB8CP-ARC, designed for permanent installations in dark-interior environments — broadcast studios, theater spaces, and venues where a white antenna enclosure would be visually inconsistent. All RF performance specifications are identical to the white variant; only the antenna housing color and included coaxial cable color differ.

Product Description

The COMB8CP-ARCB delivers the same installed IEM transmitter system as the COMB8CP-ARC with the CP Architectural Antenna in a black enclosure. The black CP Architectural Antenna mounts on walls or ceilings with a pre-drilled rear mounting plate, with the rear-mounted BNC female connector accommodating in-wall or in-ceiling coaxial cable runs for a completely concealed installation. The black enclosure can be painted with standard latex paint for additional color customization.

The CP Architectural Antenna uses circular polarization to maintain consistent IEM signal coverage as performers’ receiver packs rotate, eliminating the polarization dropout that affects linearly polarized transmit antennas. The antenna is designed for flood-coverage IEM transmission rather than directional projection, making it ideal for stages, altars, and performance areas where performers move freely within a defined area.

The COMBINE8 accepts signals from up to eight IEM transmitters of any brand (50 mW or less) via BNC inputs and combines them into a single antenna output. An LED indicator activates when any input exceeds +5 dBm. The included DC Octopus cable provides 12 VDC power to up to 8 compatible IEM transmitters from the COMBINE8, eliminating individual power adapters in the rack. The included coaxial cable is black to match the antenna, maintaining a consistent visual appearance throughout the installation.

Key Features

• CP Architectural Antenna (Black) — Slim-profile circular-polarized antenna for permanent wall or ceiling mounting in dark-interior environments.
• Paintable Black Enclosure — Accepts standard latex paint for exact color-matching to any interior surface.
• Rear-Mounted BNC Connector — Supports in-wall/in-ceiling cable routing for completely concealed wiring.
• COMBINE8 8-Channel IEM Combiner — Combines up to 8 IEM transmitter signals into one antenna output; max +18 dBm (60 mW) per input.
• DC Octopus Power Distribution — Powers up to 8 IEM transmitters from the COMBINE8 via included 8-connector cable.
• Circular Polarization — Consistent IEM coverage regardless of performer orientation.
• Black Cable Included — 25' black RG8X coaxial cable color-matched to the black antenna.
• Brand-Agnostic — Compatible with any IEM transmitter at 50 mW or less in the UHF TV band.

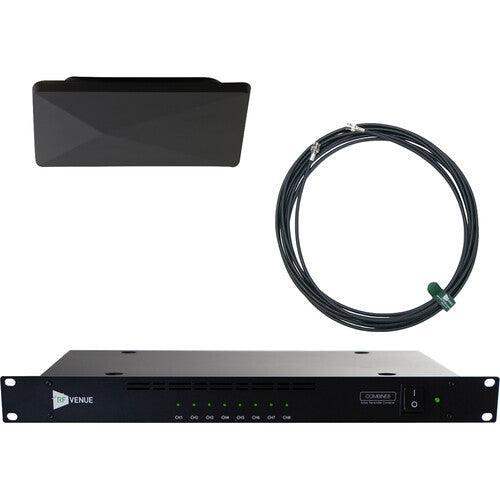

What's in the Box

• 1x CP Architectural Antenna (Black) with rear-mount wall/ceiling plate and BNC rear connector
• 1x COMBINE8 8-Channel IEM Transmitter Combiner
• 1x 25' RG8X coaxial cable (black)
• 8x BNC jumper cables
• 1x DC Octopus 8-Connector Power Distribution Cable
• 1x AC power cable

Typical Applications

Suitable for:

• Broadcast studios and television production environments with black-finish hardware requirements
• Theaters and black-box performance spaces with dark-interior aesthetics
• Houses of worship with dark ceiling or wall surfaces
• Auditoriums with stage-black color schemes in the performance area
• Commercial venues requiring concealed IEM antenna infrastructure in dark environments

Technical Specifications

Frequently Asked Questions

What is the difference between COMB8CP-ARCB and COMB8CP-ARC?

The COMB8CP-ARCB includes the black CP Architectural Antenna and a black coaxial cable. The COMB8CP-ARC includes the white CP Architectural Antenna and white coaxial cable. All electronic components, RF specifications, and bundle contents are otherwise identical.

Can this bundle be used with any IEM brand?

Yes. The COMBINE8 is compatible with any IEM transmitter operating at 50 mW or less in the 470–608 MHz band (USA/CAN), regardless of manufacturer.

Is in-wall cable routing possible with the black CP Architectural Antenna?

Yes. The rear-mounted BNC female connector allows the coaxial cable to run through the wall or ceiling behind the mounting plate, enabling a completely concealed installation.

Does the black enclosure affect RF performance?

No. The antenna enclosure color is purely cosmetic and does not affect RF performance. The circularly polarized antenna element inside the black enclosure is identical to the white version.

Can the black enclosure be painted a different color?

Yes. The enclosure accepts standard latex paint. It can be painted to match any interior wall or ceiling color as needed.

What warranty covers this product?

RF Venue components are covered by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty and support.
