Product Overview

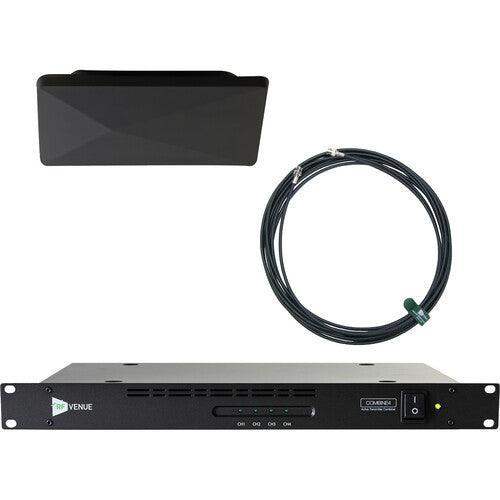

The RF Venue COMB4CP-ARCB is a complete 4-channel in-ear monitor combining pack featuring the COMBINE4 IEM transmitter combiner, the black CP Architectural antenna, and a 25-foot black RG8X coaxial cable. Designed for permanent commercial AV installations in dark-finish environments, this IEM combiner pack consolidates up to four in-ear monitor transmitter signals onto a single architecturally integrated antenna. The black CP Architectural antenna mounts flush against a wall or ceiling and accepts standard paint, making it suitable for venues with dark walls, exposed ceilings, or black-finish AV hardware specifications.
Product Description
The COMB4CP-ARCB is the black-finish counterpart to the COMB4CP-ARC. It pairs the black CP Architectural antenna with the COMBINE4 active IEM combiner and a 25-foot black RG8X coaxial cable. The CP Architectural antenna is a circularly polarized, wall- or ceiling-mountable antenna with a slim, paintable black enclosure designed to blend into dark architectural environments — exposed brick, dark ceilings, black-finish AV installations, and theatrical spaces.
The COMBINE4 is a 1RU rack-mount active combiner accepting up to four IEM transmitter antenna feeds at its BNC inputs, routing the combined signal through the single CP Architectural antenna. DC pass-through ports power up to four connected IEM transmitters, reducing power supply complexity in the rack. The CP Architectural antenna's circular polarization ensures consistent IEM signal delivery regardless of the body pack receiver's orientation on a moving performer. The 25-foot black cable provides sufficient reach from the equipment rack to the wall or ceiling-mounted antenna position while maintaining visual consistency with the black finish.
Compatible with all major UHF IEM transmitter brands, the COMB4CP-ARCB is an ideal solution for houses of worship, performing arts centers, corporate boardrooms, and broadcast studios where a black antenna finish is specified. For the white-finish version, see the COMB4CP-ARC.
Key Features
- Black CP Architectural Antenna — Circularly polarized, wall/ceiling-mount antenna with slim, paintable black enclosure for dark-finish installations and theatrical environments.
- 4-Channel IEM Combining — COMBINE4 consolidates up to four IEM transmitter antenna feeds into a single antenna output, reducing RF congestion on stage.
- Circular Polarization — Transmits across all polarization planes, maintaining consistent IEM signal for performers in any body orientation.
- 1RU Rack-Mount COMBINE4 — Installs in a standard equipment rack alongside IEM transmitters for an organized, professional installation.
- DC Power Pass-Through — Powers up to four IEM transmitters via DC jacks, simplifying rack power wiring.
- 25' Black RG8X Cable Included — Black cable matches antenna finish; routes cleanly in dark-finish installation environments.
- Paintable Enclosure — Antenna housing accepts non-metallic paint for custom color matching to any interior finish.
- Universal Brand Compatibility — Compatible with all UHF IEM transmitters in the 400–800 MHz range.
Typical Applications
Suitable for:
- House of worship with dark-finish interiors and permanently installed IEM systems
- Auditorium, theater, and performing arts center IEM installations
- Corporate boardroom with black-finish AV hardware specifications
- Broadcast studio permanent IEM antenna installations
- Commercial AV projects specifying black hardware finishes
Technical Specifications
| Bundle Contents | (1) CP Architectural Antenna (black), (1) COMBINE4 IEM Combiner, (1) 25' Black RG8X Coaxial Cable (BNC) |
| Antenna Type | Circularly polarized, wall/ceiling-mount |
| Antenna Finish | Black (paintable) |
| Frequency Range | 400–800 MHz (UHF) |
| COMBINE4 Form Factor | 1RU full-width rack-mount |
| IEM Transmitter Inputs | 4 x BNC |
| Antenna Output | 1 x BNC |
| DC Power Output | Up to 4 IEM transmitters via DC pass-through |
| Cable Length | 25 ft (RG8X, black) |
| Compatibility | All major UHF IEM transmitter brands |
Frequently Asked Questions
What is the difference between COMB4CP-ARCB and COMB4CP-ARC?
The COMB4CP-ARCB includes the black-finish CP Architectural antenna with a 25' black cable; the COMB4CP-ARC includes the white-finish version with a 25' white cable. Both packs are functionally identical — the selection depends on the installation environment's color scheme.
Can the black CP Architectural antenna be painted to match surrounding surfaces?
Yes. The antenna enclosure accepts non-metallic paint. Metallic paint should be avoided as it can degrade RF performance.
What is the maximum number of IEM transmitters the COMBINE4 supports?
The COMBINE4 supports up to four IEM transmitter antenna feeds. For systems with more than four IEM channels, additional COMBINE4 units or the COMBINE6 HDR should be used.
Is the CP Architectural antenna suitable for wireless microphone reception?
No. The CP Architectural antenna and COMBINE4 are designed for IEM transmit applications. For wireless microphone receive applications, RF Venue's Diversity Architectural Antenna (D-ARC/D-ARCB) is the correct product.
Does the COMBINE4 require an external power supply?
The COMBINE4 connects directly to AC line voltage and includes an internal power supply. It does not require a separate wall wart or power brick.
Where can I purchase the COMB4CP-ARCB?
The RF Venue COMB4CP-ARCB is available through Creation Networks at creationnetworks.net.
