RF Venue DFIND9 – Diversity Fin Antenna and DISTRO9 HDR 9-Channel Pack

Product Overview

The RF Venue DFIND9 is a complete wireless microphone antenna upgrade bundle pairing the black Diversity Fin antenna (with stand mount bracket and padded cover) with the DISTRO9 HDR 9-channel antenna distribution system. The Diversity Fin uses a patented cross-polarized hybrid design to capture wireless microphone signals from performers in any orientation, reducing polarization dropout. With the DISTRO9 HDR, a single Diversity Fin can supply up to 9 diversity wireless microphone channels, with cascade capability extending to 17 channels in 2 RU. This bundle is the most direct path to professional wireless microphone RF performance for live sound, house of worship, and touring applications.

Product Description

The Diversity Fin combines two antenna elements in one housing: a vertically polarized log-periodic directional array (LPDA) and a horizontally polarized dipole mounted at a right angle. This patented cross-polarized design captures wireless microphone signals regardless of transmitter body pack orientation, addressing one of the most common sources of signal dropout in live wireless deployments where performers move continuously.

At 300 mm wide and 370 mm tall, the Diversity Fin is compact enough for placement on an antenna stand at the front of a stage or at the front-of-house position. The included padded cover protects the antenna during transport, and the stand mount bracket provides standard microphone stand compatibility. The frequency range extends from 470 to 928 MHz, covering UHF TV band and beyond, with 1.8 dBd gain across the operating range.

The DISTRO9 HDR receives the antenna signals and distributes them to up to 9 wireless microphone receivers. Its proprietary gain structure delivers over 60 dB of dynamic range, significantly outperforming passive splitter-based distribution in high-channel-count wireless environments. Two zone inputs allow the DISTRO9 HDR to receive signals from antennas at different locations in the venue for large-space or multi-room coverage. The ETL listing makes the DISTRO9 HDR compliant with municipal and government bid specifications.

The bundle includes all interconnect cabling — 25-foot main runs from antenna to rack, 1.5-foot and 2-foot short jumpers between the distribution system and receivers, and the DC power kit for powering wireless receivers through the coaxial cable.

Key Features

• Patented Cross-Polarized Diversity Fin Antenna — LPDA + dipole hybrid captures both vertical and horizontal polarization from a single antenna position.
• Black Stand Mount Configuration — Includes padded carry cover and standard microphone stand mount bracket for portable and semi-permanent deployment.
• Wide Frequency Coverage — Diversity Fin operates 470–928 MHz, supporting UHF TV band and adjacent spectrum.
• DISTRO9 HDR 9-Channel Distribution — 1RU rackmount, over 60 dB dynamic range, two zone inputs, ETL listed.
• Cascade to 17 Channels — Add a second DISTRO9 HDR for 17 wireless mic channels in 2 RU from a single antenna pair.
• DC Power for Receivers — DC-KIT-D9 included for powering compatible wireless receivers via coaxial cable.
• Complete Cabling Included — 25' RG8X antenna cables, 1.5' and 2' interconnects, and DC power distribution all in the bundle.
• ETL Listed — DISTRO9 HDR meets certification requirements for government, institutional, and specification-driven projects.

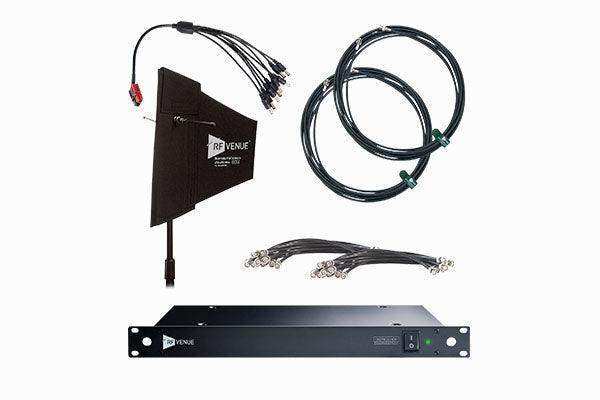

What's in the Box

• 1x Diversity Fin Antenna (Black) with padded cover and stand mount bracket
• 1x DISTRO9 HDR 9-Channel Antenna Distribution System with AC power cord
• 2x 25' RG8X BNC coaxial cables
• 10x 1.5' RG8X BNC interconnect cables
• 10x 2' RG8X BNC interconnect cables
• 1x DC-KIT-D9 DC Power Distribution Kit for DISTRO9

Typical Applications

Suitable for:

• Live performance venues with performers moving freely on stage
• Houses of worship with dynamic wireless microphone use across large sanctuaries
• Touring productions requiring portable antenna deployment at each venue
• Auditoriums and multi-purpose rooms with up to 9 wireless microphone channels
• Government and institutional facilities with ETL listing requirements
• Conference centers hosting large-format events with roving presenters

Technical Specifications

Frequently Asked Questions

Why does the Diversity Fin outperform a standard LPDA paddle antenna?

Traditional LPDA paddle antennas capture only one polarization of the RF signal. Body pack transmitters change orientation as performers move, causing polarization mismatch between the transmitter and a single-polarization antenna. The Diversity Fin captures both vertical and horizontal polarizations simultaneously from its patented LPDA + dipole design, eliminating this class of dropout.

Can the Diversity Fin supply more than 9 channels?

Yes. By cascading a second DISTRO9 HDR, a single Diversity Fin can supply up to 17 wireless microphone channels in 2 RU. RF Venue documentation notes the antenna can supply up to 81 receivers with appropriate distribution infrastructure.

Is the DFIND9 appropriate for permanent installation or portable use only?

The stand mount version (DFIND9) is designed for portable deployment on microphone stands. For permanent wall-mount installation, the DFINBD9 (black wall mount) or DFINWD9 (white wall mount) versions are available.

Does the bundle include everything needed to connect to wireless receivers?

Yes. The bundle includes 25-foot antenna cables, short interconnect cables for rack connections, and the DC power kit. Only the wireless microphone receivers themselves are not included.

Is this compatible with any wireless microphone brand?

Yes. The DISTRO9 HDR and Diversity Fin are compatible with any wireless microphone system with 50-ohm BNC antenna connections operating in the 470–698 MHz UHF band (and 470–928 MHz for the antenna).

What warranty covers this bundle?

RF Venue products are backed by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for support.
