RF Venue DFINBDISTRO4 – 4-Channel Wireless Mic Pack, Black Wall-Mount Fin Antenna

Product Overview

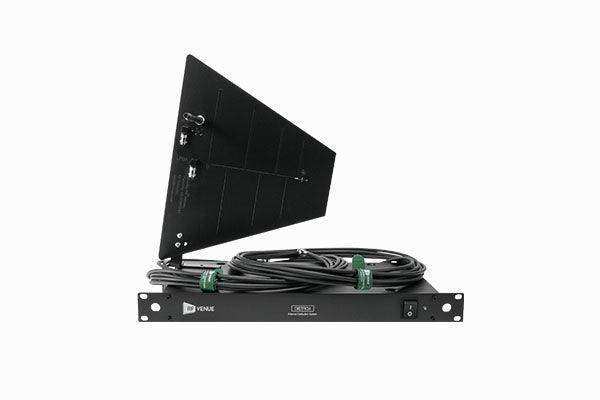

The RF Venue DFINBDISTRO4 is a complete 4-channel wireless microphone antenna distribution pack featuring the black wall-mount Diversity Fin antenna (DFINB), the DISTRO4 4-channel UHF distribution system, and all required cables. Designed for permanent AV installations in dark-finish environments, this pack provides professional wireless microphone antenna performance with a wall-mounted black antenna profile. The Diversity Fin's patented cross-polarized design covers 120 degrees horizontally with typical range over 300 feet, while the DISTRO4 distributes the signal to up to four wireless receiver channels with 12VDC power output.

Product Description

The DFINBDISTRO4 pairs the DFINB — the black permanent-install version of RF Venue's Diversity Fin antenna — with the DISTRO4 active antenna distributor. The DFINB ships with a black wall-mount bracket for clean, fixed-installation mounting, distinguishing it from the standard DFIN which uses a stand-mount bracket for touring flexibility. The Diversity Fin uses RF Venue's patented orthogonal polarization diversity design: an LPDA element for vertically polarized signals and a dipole element for horizontally polarized signals, combined in a single unit. A single DFINB provides both A and B diversity feeds, eliminating the need for two separate antennas.

The DISTRO4 is a 1RU active rack-mount antenna distribution system that splits the A and B signals from the DFINB to up to four wireless receiver channels with 12VDC receiver power distribution. The cascade output allows connection to additional distributor units for larger systems. The bundle includes two 25-foot BNC cables, ten 1.5-foot BNC jumper cables, four DC jumper cables, and an AC power cord — everything needed for a complete installation.

Compatible with all UHF wireless microphone receivers in the 470–698 MHz range, the DFINBDISTRO4 suits houses of worship, conference rooms, auditoriums, and any permanent installation with dark-finish hardware requirements.

Key Features

• Black Wall-Mount Diversity Fin Antenna — DFINB permanent-install version with black wall-mount bracket for clean fixed installations.
• Patented Cross-Polarized Design — LPDA and dipole elements at 90° capture both polarization planes in one unit, reducing orientation-based wireless dropouts.
• 120° Horizontal Coverage — Directional pattern for stage-wing or FOH placement with typical range exceeding 300 feet.
• DISTRO4 Included — Active 1RU 4-channel antenna distributor with 12VDC receiver power and cascade port.
• 12VDC Power Distribution — Powers up to four wireless receivers via DC jumper cables.
• Complete Black Cable Set — Two 25' BNC cables, 10 x 1.5' BNC jumpers, 4 x DC jumpers, and AC power cord.
• Single Antenna Replaces Two — One DFINB provides both A and B diversity feeds for the entire receiver chain.
• Universal Compatibility — Works with all UHF wireless microphone receivers in the 470–698 MHz range.

Typical Applications

Suitable for:

• House of worship with permanent wall-mounted wireless microphone antenna systems
• Conference room and boardroom wireless audio installations
• Auditorium and performing arts center productions
• Government and corporate meeting spaces with dark-finish AV specifications
• Training room and multi-purpose room fixed AV installations

Technical Specifications

Frequently Asked Questions

What is the difference between DFINBDISTRO4 and DFINDISTRO4?

DFINBDISTRO4 includes the DFINB with a black wall-mount bracket for permanent installations; DFINDISTRO4 includes the standard DFIN with a padded cover and stand-mount bracket for touring or flexible deployment. Both packs use the same Diversity Fin antenna element with identical RF performance.

How does DFINBDISTRO4 compare to DFINBD5?

DFINBDISTRO4 includes the DISTRO4 (4-channel, 1RU); DFINBD5 includes the DISTRO5 HDR (5-channel, half-rack) with HDR technology. The DFINBD5 supports one additional channel and offers improved dynamic range.

Where can I purchase the DFINBDISTRO4?

Available through Creation Networks at creationnetworks.net.
