RF Venue DFINBD9 – Black Wall Mount Diversity Fin and DISTRO9 HDR Pack

Product Overview

The RF Venue DFINBD9 is a complete wireless microphone antenna upgrade bundle pairing the black Diversity Fin antenna with a black wall mount bracket and the DISTRO9 HDR 9-channel antenna distribution system. This is the permanently installed, wall-mount variant of the DFIND9 stand-mount bundle, designed for fixed AV installations where the antenna will be mounted on a wall rather than placed on a stand. The Diversity Fin’s patented cross-polarized design captures wireless microphone signals from performers in any orientation, and the DISTRO9 HDR distributes signal to up to 9 diversity channels with ETL-listed, high-dynamic-range performance.

Product Description

The DFINBD9 is the preferred choice for AV integrators installing wireless microphone RF infrastructure as a permanent, fixed system in black-interior venues. The black Diversity Fin Antenna mounts directly to a wall surface via the included black wall mount bracket, providing a clean, permanent installation that eliminates microphone stand clutter in the venue.

The Diversity Fin’s patented cross-polarized design combines a vertically polarized LPDA element with a horizontally polarized dipole mounted orthogonally. This hybrid approach ensures consistent signal capture regardless of whether a performer’s body pack transmitter is oriented vertically or horizontally, directly reducing the polarization dropout common with single-polarization antennas. Operating from 470 to 928 MHz, it covers the full UHF TV band and adjacent spectrum used by most professional wireless systems.

The DISTRO9 HDR receives the two diversity antenna signals from the Diversity Fin and distributes them to up to 9 wireless microphone receiver channels. Its proprietary amplifier circuitry delivers over 60 dB of dynamic range, a significant improvement over passive splitter-based systems. Two zone antenna inputs allow the DISTRO9 HDR to serve large venues or multi-room spaces with antennas at different locations. The ETL listing satisfies certification requirements for government, institutional, and specification-driven commercial projects.

All bundle cabling is included: 25-foot RG8X runs from the wall-mounted antenna to the equipment rack, short interconnect cables for distribution to receivers, and the DC power kit for powering wireless receivers directly through the coaxial cable.

Key Features

• Black Wall Mount Configuration — Diversity Fin included with black wall mount bracket for permanent, fixed AV installation; no stand required.
• Patented Cross-Polarized Design — LPDA + dipole hybrid captures both vertical and horizontal polarization from a single antenna position.
• 470–928 MHz Coverage — Supports UHF TV band and adjacent spectrum for current and next-generation wireless systems.
• DISTRO9 HDR 9-Channel Distribution — 1RU rackmount, over 60 dB dynamic range, two zone inputs, ETL listed.
• Cascade to 17 Channels — Add a second DISTRO9 HDR for 17 channels in 2 RU from the same antenna.
• DC Power for Receivers — DC-KIT-D9 powers compatible wireless receivers through the distribution system.
• Complete Cabling Included — All RG8X antenna runs and interconnect cables provided.
• ETL Listed — Meets certification requirements for government and institutional specifications.

What's in the Box

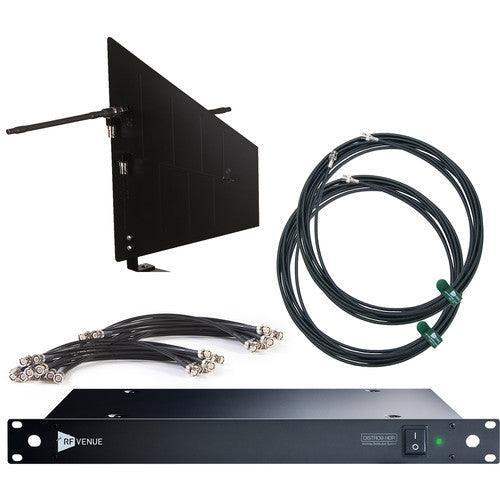

• 1x Diversity Fin Antenna (Black) with black wall mount bracket
• 1x DISTRO9 HDR 9-Channel Antenna Distribution System with AC power cord
• 2x 25' RG8X BNC coaxial cables
• 10x 1.5' RG8X BNC interconnect cables
• 10x 2' RG8X BNC interconnect cables
• 1x DC-KIT-D9 DC Power Distribution Kit for DISTRO9

Typical Applications

Suitable for:

• Permanently installed AV systems in auditoriums and performing arts centers
• Houses of worship with wall-mounted antenna infrastructure
• Broadcast studios with black-finish equipment requirements
• Theaters and black-box performance spaces
• Government and institutional facilities requiring ETL-listed components
• Corporate conference rooms with fixed wireless microphone infrastructure

Technical Specifications

Frequently Asked Questions

What is the difference between DFINBD9 and DFIND9?

The DFIND9 includes the Diversity Fin with a stand mount bracket for portable or semi-permanent deployment on a microphone stand. The DFINBD9 includes the same antenna with a black wall mount bracket for permanent installation on walls in black-interior environments. The DFINWD9 is the white wall mount version.

Can the wall mount bracket support different wall types?

The included black wall mount bracket is designed for standard drywall, masonry, and wood stud installations. For specific mounting requirements in specialty surfaces, consult the installation documentation or contact Creation Networks for guidance.

Is this compatible with any wireless microphone brand?

Yes. The DISTRO9 HDR and Diversity Fin work with any wireless microphone system with 50-ohm BNC antenna connections operating in the UHF TV band.

Can I cascade a second DISTRO9 HDR to this system?

Yes. Any output on the DISTRO9 HDR can feed a second unit, providing up to 17 wireless microphone channels in 2 RU without a second antenna pair.

Does the bundle include DC power distribution for wireless receivers?

Yes. The DC-KIT-D9 is included to power compatible wireless receivers through the distribution system connections.

What warranty covers this product?

RF Venue products are covered by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for support.
