RF Venue D-OMNID9 – Diversity Omni Antenna and DISTRO9 HDR 9-Channel Pack

Product Overview

The RF Venue D-OMNID9 is a complete wireless microphone antenna upgrade bundle pairing the Diversity Omni Antenna with the DISTRO9 HDR 9-channel antenna distribution system. The Diversity Omni provides 360-degree omnidirectional wireless microphone coverage from two antennas on a single stand, capturing both vertical and horizontal polarizations to eliminate common signal dropouts. Combined with the DISTRO9 HDR’s high-dynamic-range distribution across 9 channels, this bundle is the standard solution for venues where performers move throughout the entire space and directional coverage is insufficient.

Product Description

Traditional directional LPDA paddle antennas provide coverage in a forward-facing arc but require careful aiming and are less effective when performers are behind or to the side of the antenna. The Diversity Omni Antenna solves this with omnidirectional RF coverage: two antenna elements on a single stand capture signals from all directions within a typical 100-foot radius. The dual-element design simultaneously captures both vertically and horizontally polarized signals, addressing the polarization dropout caused by performer movement.

The Diversity Omni is compact at 105 mm long by 204 mm tall, and weighs only 187 g (6.6 oz), making it lightweight for stand mounting. It operates from 470 to 698 MHz across the UHF TV band. A weather-resistant Cordura nylon cover is included for outdoor installations. The antenna is ETL-listed.

The DISTRO9 HDR receives the two diversity signals from the Diversity Omni and distributes them to up to 9 wireless microphone receiver channels. Its proprietary gain structure delivers over 60 dB of dynamic range, a significant improvement over passive splitter-based systems that suffer from noise figure degradation at high channel counts. Two zone antenna inputs allow coverage of large spaces or multiple rooms from a single distribution unit. Cascading a second DISTRO9 HDR via any output extends the system to 17 channels in 2 RU. The DISTRO9 HDR is ETL listed and supports VHF, UHF, and 900 MHz frequency bands.

The bundle includes all cables for connecting the antenna to the distribution system and the receivers, plus the DC power kit for supplying power to up to 9 compatible wireless receivers through the coaxial cable connections.

Key Features

• 360° Omnidirectional Coverage — Typical coverage range up to 100 feet from center in all directions; no directional aiming required.
• Dual-Polarization Design — Two antenna elements on one stand capture both vertical and horizontal polarization to minimize dropout from performer movement.
• Outdoor-Ready — Weather-resistant Cordura nylon cover included; suitable for outdoor mounted installations.
• Compact and Lightweight — 105 × 204 mm, 187 g; easy to position on a microphone stand in any venue layout.
• DISTRO9 HDR 9-Channel Distribution — 1RU rackmount, over 60 dB dynamic range, two zone inputs, ETL listed.
• Cascade to 17 Channels — Connect a second DISTRO9 HDR for 17 wireless mic channels in 2 RU.
• DC Power for Receivers — DC-KIT-D9 powers compatible wireless receivers through the distribution system.
• ETL Listed — DISTRO9 HDR meets certification requirements for institutional and government projects.

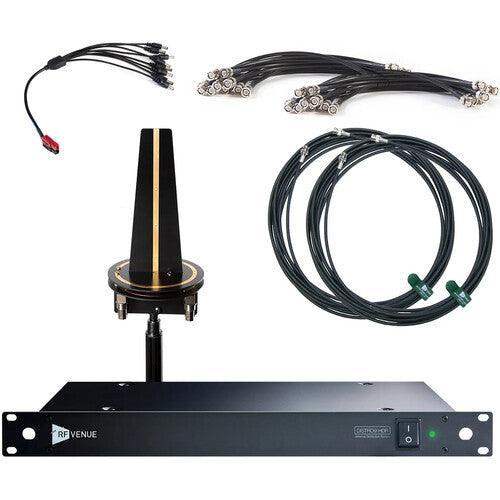

What's in the Box

• 1x Diversity Omni Antenna (with Cordura nylon cover)
• 1x DISTRO9 HDR 9-Channel Antenna Distribution System with AC power cord
• 2x 25' RG8X BNC coaxial cables
• 10x 1.5' RG8X BNC interconnect cables
• 10x 2' RG8X BNC interconnect cables
• 1x DC-KIT-D9 DC Power Distribution Kit for DISTRO9

Typical Applications

Suitable for:

• Auditoriums and conference rooms where performers or presenters move throughout the entire space
• Houses of worship with large sanctuaries and multiple wireless microphone users across the full stage area
• Outdoor event venues and covered amphitheaters
• Training rooms and lecture halls with roving presenters
• Government and institutional facilities requiring omnidirectional coverage with ETL-listed components
• All-hands rooms and corporate event spaces with distributed presenter movement

Technical Specifications

Frequently Asked Questions

When should I choose the Diversity Omni over a Diversity Fin or Diversity Architectural Antenna?

The Diversity Omni is the best choice when performers move throughout the entire venue and you need RF coverage in all directions from a central point. The Diversity Fin is a better choice when performers are concentrated in a defined area in front of the antenna (such as a stage). The Diversity Architectural Antenna is best for fixed conference room or boardroom installations where a discreet wall or ceiling mount is required.

Can the Diversity Omni be used outdoors permanently?

The Diversity Omni is designed for both portable and permanent outdoor installation. The included Cordura nylon weather-resistant cover protects the antenna from environmental exposure. For permanent outdoor installations, ensure the stand and mounting surface are appropriate for the environment.

What is the maximum number of channels this bundle supports?

The DISTRO9 HDR supports 9 diversity wireless microphone channels. Cascading a second DISTRO9 HDR extends the system to 17 channels in 2 RU from the same antenna. RF Venue documentation notes the system can supply up to 20 dB better dynamic range than competing units in high-channel-count deployments.

Is the system compatible with my current wireless microphone brand?

Yes. The Diversity Omni and DISTRO9 HDR are compatible with any wireless microphone system with 50-ohm BNC antenna connections operating in the UHF TV band (470–698 MHz).

Does the DC-KIT-D9 replace individual power adapters for my receivers?

Yes. The DC-KIT-D9 delivers power from the DISTRO9 HDR to compatible wireless receivers through the coaxial cable connections, eliminating the need for individual wall warts at each receiver in the rack.

What warranty covers this product?

RF Venue products are covered by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty and support.
