RF Venue D-OMNI – Diversity Omni Antenna for Wireless Microphones

Product Overview

The RF Venue D-OMNI is a dual-element omnidirectional diversity antenna designed for wireless microphone deployments requiring 360-degree coverage. Building on the polarization diversity principle of the Diversity Fin, the D-OMNI combines two antenna elements on a single stand to capture both vertical and horizontal polarizations from all directions simultaneously. With a 360-degree coverage pattern and typical range up to 100 feet from the antenna's central placement point, the D-OMNI suits conference rooms, multi-zone deployments, smaller spaces, and outdoor environments where a directional antenna cannot be effectively aimed.

Product Description

Where the Diversity Fin and Diversity Architectural Antenna are directional — providing broad-sector coverage focused toward a defined stage or performance zone — the D-OMNI provides omnidirectional coverage from a centrally-placed antenna. This makes it the right tool for situations where talent moves throughout the entire room, multi-zone setups where a single antenna must cover activity in multiple adjacent areas, or outdoor applications where the transmitter's position relative to the antenna is unpredictable.

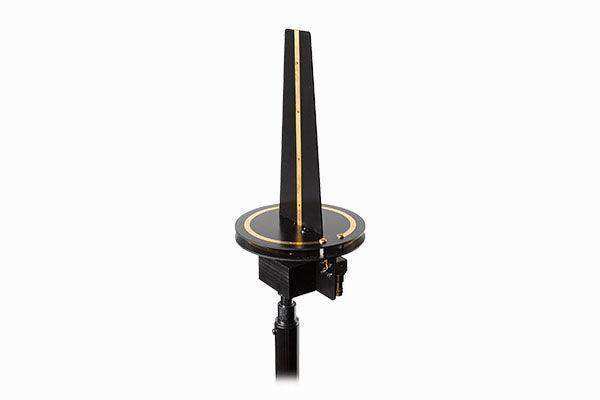

The D-OMNI's two antenna elements are mounted on a single stand assembly and connect to separate A and B BNC output jacks, feeding into a diversity receiver or antenna distribution system (DISTRO4, DISTRO5 HDR). Placed centrally in the coverage area, the D-OMNI provides consistent signal from all directions. Coverage is 360 degrees with typical range up to 100 feet from the antenna center. The D-OMNI includes a stand mount and a weather-resistant cover, making it suitable for mild outdoor use as well as indoor deployments.

Compatible with all major UHF wireless microphone receivers in the 470–616 MHz range, the D-OMNI is suitable for conference rooms, huddle spaces, houses of worship with roaming talent, multi-purpose rooms, and outdoor event spaces. For complete distribution packs including the D-OMNI, see the D-OMNIDISTRO4 (4-channel with DISTRO4) or D-OMNID5 (5-channel with DISTRO5 HDR).

Key Features

• 360° Omnidirectional Coverage — Full-circle pattern for environments where talent moves throughout the space or cannot be positioned in a defined zone.
• Dual-Polarization Diversity — Two elements capture vertical and horizontal polarizations simultaneously, reducing orientation-based dropouts.
• Centrally-Placed Deployment — Designed to be placed at the center of the coverage area for uniform signal distribution in all directions.
• Up to 100 Feet Range — Typical coverage radius from the antenna's central placement point.
• Weather-Resistant Cover Included — Suitable for mild outdoor applications and indoor environments.
• Stand Mount Included — Deploys on a standard stand or surface for flexible central placement.
• Universal Compatibility — Works with all major UHF wireless microphone receivers in the 470–616 MHz range.

Typical Applications

Suitable for:

• Conference room and huddle room with roaming presenters
• Multi-purpose room and all-hands room wireless audio systems
• House of worship with talent moving throughout the space
• Outdoor event spaces where directional antenna aiming is impractical
• Multi-zone wireless microphone systems requiring central antenna placement

Technical Specifications

Frequently Asked Questions

When should I choose D-OMNI over the DFIN or D-ARC?

Choose D-OMNI when performers or speakers move throughout the entire room without a defined stage direction, or when a central antenna placement is required for multi-zone coverage. Choose DFIN or D-ARC when talent is in a defined zone and the antenna can be aimed for greater directional range (300+ feet vs. 100 feet for D-OMNI).

What is the coverage radius of the D-OMNI?

Typical range is up to 100 feet from the antenna's central placement point. Range depends on transmitter power level, the RF noise floor, and the number of competing signals in the environment.

Does the orientation of the D-OMNI matter?

No. The 360-degree omnidirectional pattern means the antenna can be oriented in any direction without affecting coverage.

Can the D-OMNI be used outdoors?

The D-OMNI includes a weather-resistant cover and is suitable for mild outdoor use. For exposure to significant rain, wind, or harsh environmental conditions, verify the installation design with your system integrator.

What distribution systems are compatible with the D-OMNI?

The D-OMNI's BNC A and B outputs connect to any compatible distribution system including RF Venue DISTRO4, DISTRO5 HDR, DISTRO9 HDR, and third-party distributors. For complete bundles, see D-OMNIDISTRO4 or D-OMNID5.
