RF Venue D-ARCD9 – Diversity Architectural Antenna and DISTRO9 HDR Pack

Product Overview

The RF Venue D-ARCD9 is a complete wireless microphone antenna system bundle pairing the white Diversity Architectural Antenna with the DISTRO9 HDR 9-channel antenna distribution system. This turnkey kit provides everything needed to upgrade a wireless microphone installation with a discreet, wall- or ceiling-mounted antenna and a high-performance distribution system supporting up to 9 diversity channels. It is designed for AV integrators who need professional RF performance with minimal visual impact in commercial spaces.

Product Description

The D-ARCD9 solves a common challenge in installed AV: deploying high-performance wireless microphone antennas in spaces where traditional paddle or whip antennas are visually unacceptable. The Diversity Architectural Antenna (D-ARC) uses a patent-pending dual-feed design to deliver both A and B diversity connections from a single slim-profile enclosure that mounts flush to walls or ceilings. The paintable white housing blends into any interior and can be color-matched with standard latex paint.

The D-ARC provides a 140-degree conical coverage pattern with 3 dBd gain and a typical range of up to 200 feet, making it well-suited for conference rooms, boardrooms, multi-purpose spaces, and houses of worship. Unlike traditional setups requiring two separate LPDA paddle antennas for A/B diversity, the D-ARC delivers both channels from a single mounting point via rear-mounted BNC connectors.

The DISTRO9 HDR is a 1RU rackmount antenna distribution system supporting 9 channels of diversity wireless across VHF, UHF, and 900 MHz frequency bands. Its proprietary gain structure provides superior dynamic range compared to passive splitter-based systems, with over 60 dB of dynamic range and third-order intercept points of 15 dBm at VHF and 20+ dBm at UHF. Two zone inputs allow coverage of large areas or multiple rooms from a single distribution unit. Cascade capability allows a second DISTRO9 HDR to be connected for up to 17 channels in 2 RU.

The D-ARCD9 bundle includes all cables required to connect the antenna to the distribution system, including 25-foot and short interconnect RG8X BNC cables, and the DC-Octopus cable for powering up to 9 compatible wireless receivers without wall warts.

Key Features

• Diversity Architectural Antenna (White) — Patent-pending dual-feed design delivers both A and B diversity from a single slim-profile wall or ceiling mount.
• Paintable Enclosure — White housing accepts standard latex paint for color-matching to any interior finish.
• 140° Conical Coverage, 3 dBd Gain — Provides effective wireless microphone coverage up to 200 feet from the antenna position.
• DISTRO9 HDR Distribution System — 9 diversity channels in 1 RU, supporting VHF, UHF, and 900 MHz bands with over 60 dB dynamic range.
• Dual Zone Antenna Inputs — Two zones of antenna input on the DISTRO9 HDR for large venues or multi-room coverage from a single rack unit.
• Cascade to 17 Channels — Connect a second DISTRO9 HDR via any output for up to 17 wireless mic channels in 2 RU.
• DC Power for Receivers — Included DC-Octopus cable powers up to 9 compatible wireless receivers, eliminating individual power supplies.
• Complete Cabling Included — 25' RG8X cables, 1.5' and 2' interconnects, and DC power distribution all included in the bundle.
• ETL Listed — DISTRO9 HDR is ETL certified for compliance with municipal and government bid specifications.

What's in the Box

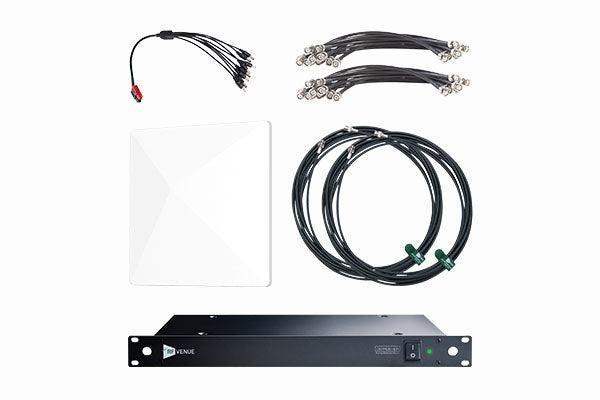

• 1x Diversity Architectural Antenna (White)
• 1x DISTRO9 HDR 9-Channel Antenna Distribution System with AC power cord
• 2x 25' RG8X BNC coaxial cables
• 10x 1.5' RG8X BNC interconnect cables
• 10x 2' RG8X BNC interconnect cables
• 1x DC-Octopus Cable

Typical Applications

Suitable for:

• Boardrooms and executive conference rooms requiring discreet antenna placement
• Houses of worship with distributed wireless microphone systems
• Government spaces and municipal facilities requiring ETL-listed components
• Multi-purpose rooms and training rooms with up to 9 wireless microphone channels
• Commercial meeting spaces where visible antennas are architecturally unacceptable

Technical Specifications

Frequently Asked Questions

Why use the Diversity Architectural Antenna instead of paddle antennas?

The Diversity Architectural Antenna replaces two separate directional paddle antennas with a single slim-profile unit that mounts flush to a wall or ceiling. It provides both A and B diversity connections from one mounting point, reduces visible hardware in the room, and can be painted to blend into any interior. For conference rooms, boardrooms, and houses of worship, this represents a significant aesthetic and installation advantage over traditional paddle antennas.

How many wireless microphone channels can this system support?

The DISTRO9 HDR supports 9 diversity wireless microphone channels from a single unit. By cascading a second DISTRO9 HDR, up to 17 channels can be supported in 2 RU of rack space. The Diversity Architectural Antenna can supply sufficient RF signal for this full channel count.

Can I use this system with wireless microphones from other manufacturers?

Yes. The DISTRO9 HDR and Diversity Architectural Antenna are compatible with any wireless microphone system operating in the 470–698 MHz UHF TV band with standard 50-ohm BNC antenna connections.

Does the DISTRO9 HDR power my wireless microphone receivers?

Yes, the included DC-Octopus cable allows the DISTRO9 HDR to provide DC power to up to 9 compatible wireless receivers via the coaxial cable connections, eliminating the need for individual wall warts at each receiver.

Is the D-ARCBD9 the same bundle with a black antenna?

Yes. The D-ARCBD9 is the identical bundle but includes the Black Diversity Architectural Antenna instead of white. All other components and specifications are the same.

What is the warranty on this product?

RF Venue products are covered by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty and support information.
