RF Venue D-ARCBDISTRO4 – 4-Channel Wireless Mic Pack, Black Architectural Antenna

Product Overview

The RF Venue D-ARCBDISTRO4 is a complete 4-channel wireless microphone antenna distribution pack featuring the black Diversity Architectural Antenna, the DISTRO4 4-channel UHF antenna distribution system, and all required black cables. Designed for commercial AV integrators, this pack delivers a clean, permanent wireless microphone installation in dark-finish environments — the D-ARCB's slim black profile mounts on walls or ceilings and can be painted to match any dark interior surface, while the DISTRO4 distributes antenna signals to up to four wireless receiver channels with 12VDC power distribution.

Product Description

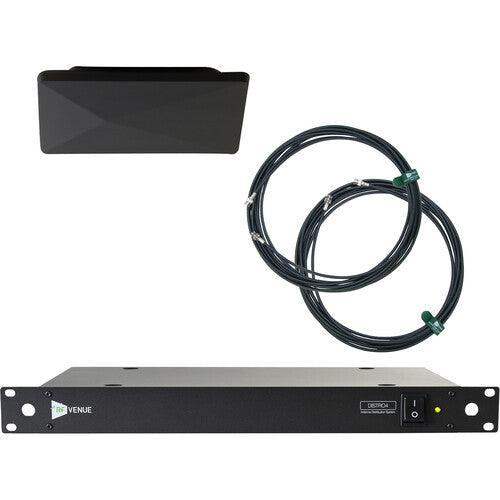

The D-ARCBDISTRO4 is the black-finish counterpart to the D-ARCDISTRO4. It pairs the D-ARCB (black Diversity Architectural Antenna) with the DISTRO4 active distribution system and a complete set of black cables. The D-ARCB features RF Venue's patent-pending dual-feed design, providing both A and B diversity outputs from a single slim antenna — eliminating the need for two separate paddle antennas. Its 140-degree conical pattern provides typical range to 200 feet from stage-wing, FOH, or ceiling positions.

The DISTRO4 is an active 1RU rack-mount antenna splitter that distributes the D-ARCB's A and B antenna signals to up to four wireless receiver channels, with 12VDC power distribution to connected receivers via DC jumper cables. The cascade output supports additional distribution units for larger channel counts. All hardware arrives ready to install: the bundle includes ten 1.5-foot black BNC jumper cables, four DC jumper cables, one AC power cord, and two 25-foot black RG8X coaxial cables.

Compatible with all major UHF wireless microphone receivers in the 470–616 MHz range, the D-ARCBDISTRO4 is an ideal solution for houses of worship, conference rooms, auditoriums, and corporate spaces where dark-finish AV hardware is specified.

Key Features

• Black Diversity Architectural Antenna — Slim, paintable black wall/ceiling-mount profile; dual A/B outputs in one unit replace two traditional paddle antennas.
• 140° Conical Coverage — Broad pattern for stage-wing, FOH, or ceiling placement with typical range to 200 feet.
• DISTRO4 Included — Active 1RU 4-channel antenna distributor with 12VDC power distribution and cascade port.
• 12VDC Power Distribution — Powers up to four connected wireless receivers via DC jumper cables.
• Complete Black Cable Package — Two 25' black RG8X cables, 10 x 1.5' BNC jumpers, 4 x DC jumpers, and AC power cord.
• Cascade Output — DISTRO4 supports additional distribution units for channel count expansion.
• Paintable Enclosure — Antenna accepts non-metallic paint for color matching to any installation environment.
• Universal Compatibility — Works with any UHF wireless microphone receiver in the 470–616 MHz range.

Typical Applications

Suitable for:

• House of worship with dark-finish interior and permanent wireless microphone systems
• Conference room and boardroom wireless audio installations
• Auditorium and performing arts center productions
• Government and corporate meeting spaces with black hardware specifications
• Training room and multi-purpose room fixed AV installations

Technical Specifications

Frequently Asked Questions

What is the difference between D-ARCBDISTRO4 and D-ARCDISTRO4?

D-ARCBDISTRO4 includes the black-finish D-ARCB antenna with black cables; D-ARCDISTRO4 includes the white-finish D-ARC with white cables. Both are functionally identical.

How does this pack differ from the D-ARCBD5?

The D-ARCBDISTRO4 includes the DISTRO4 (4-channel, 1RU) for up to four channels. The D-ARCBD5 includes the DISTRO5 HDR (5-channel, half-rack) with HDR technology for up to five channels and better dynamic range performance.

Can the DISTRO4 cascade to support more receivers?

Yes. The DISTRO4 cascade output connects to additional distributor units for systems requiring more than four wireless receiver channels.

Where can I purchase the D-ARCBDISTRO4?

Available through Creation Networks at creationnetworks.net.
