RF Venue D-ARCBD9 – Black Diversity Architectural Antenna and DISTRO9 HDR Pack

Product Overview

The RF Venue D-ARCBD9 is a complete wireless microphone antenna system bundle pairing the black Diversity Architectural Antenna with the DISTRO9 HDR 9-channel antenna distribution system. This turnkey kit is the black-finish variant of the D-ARCD9, designed for installations where a dark antenna enclosure better matches the interior environment. The bundle includes all cables and hardware needed to deploy up to 9 channels of diversity wireless microphone distribution with a discreet, professionally installed antenna solution.

Product Description

The D-ARCBD9 provides the same high-performance wireless microphone RF system as the D-ARCD9 but with the Black Diversity Architectural Antenna (D-ARCB). The black enclosure is well-suited for darker interior environments, modern commercial spaces, broadcast studios, and theater applications where white hardware would be visually inconsistent.

The Diversity Architectural Antenna uses a patent-pending dual-feed design that delivers both A and B diversity connections from a single wall- or ceiling-mounted unit, replacing the need for two separate directional paddle antennas. The slim-profile enclosure installs flush to surfaces with rear-mounted BNC jacks and can be painted to any color with standard latex paint. It provides 3 dBd gain across a 140-degree conical pattern with a typical coverage range of up to 200 feet.

The DISTRO9 HDR is a 1RU rackmount antenna distribution system with 9 diversity output channels, two zone inputs, and support for VHF, UHF, and 900 MHz frequency bands. It delivers over 60 dB of dynamic range with superior noise performance compared to passive distribution systems. ETL listed for compliance with municipal and government bid specifications. The included DC-Octopus cable allows the DISTRO9 HDR to power up to 9 compatible wireless receivers directly, eliminating individual power supplies at each receiver.

All bundle cables are RF Venue RG8X coaxial, including two 25-foot runs for the main antenna feeds and pre-cut interconnect cables for the distribution system connections.

Key Features

• Diversity Architectural Antenna (Black) — Patent-pending dual-feed design delivers A and B diversity from a single slim-profile wall or ceiling mount; black finish for darker environments.
• Paintable Enclosure — Black housing can be painted with standard latex paint to match any interior color.
• 140° Conical Coverage, 3 dBd Gain — Typical range up to 200 feet, suitable for conference rooms, auditoriums, and houses of worship.
• DISTRO9 HDR Distribution System — 9 diversity channels in 1 RU across VHF, UHF, and 900 MHz with over 60 dB dynamic range.
• Dual Zone Antenna Inputs — Supports large venues or multi-room deployments from a single DISTRO9 HDR.
• Cascade to 17 Channels — Add a second DISTRO9 HDR for up to 17 channels in 2 RU.
• DC Power for Receivers — DC-Octopus cable powers up to 9 compatible wireless receivers from the distribution system.
• Complete Cabling Included — 25' RG8X cables, 1.5' and 2' interconnects, and DC distribution cable included.
• ETL Listed — Meets requirements for municipal, government, and institutional bid specifications.

What's in the Box

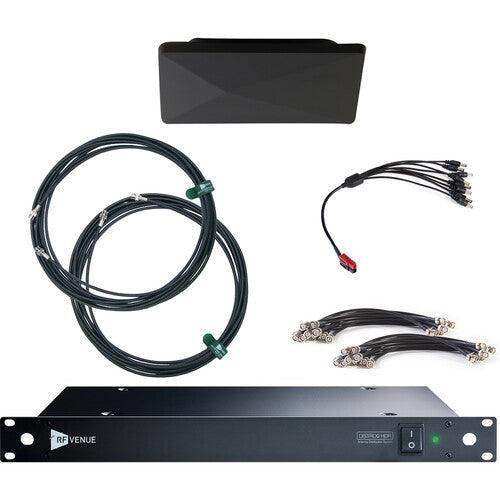

• 1x Diversity Architectural Antenna (Black)
• 1x DISTRO9 HDR 9-Channel Antenna Distribution System with AC power cord
• 2x 25' RG8X BNC coaxial cables
• 10x 1.5' RG8X BNC interconnect cables
• 10x 2' RG8X BNC interconnect cables
• 1x DC-Octopus Cable

Typical Applications

Suitable for:

• Broadcast studios and television production environments requiring dark-finish hardware
• Boardrooms and executive conference rooms with dark interior design
• Houses of worship with dark ceiling or wall surfaces
• Theaters and performing arts spaces with stage-black color schemes
• Government facilities requiring ETL-listed components
• Multi-purpose rooms with up to 9 wireless microphone channels

Technical Specifications

Frequently Asked Questions

What is the difference between the D-ARCBD9 and the D-ARCD9?

The D-ARCBD9 includes the Black Diversity Architectural Antenna while the D-ARCD9 includes the white version. All other components, specifications, and bundle contents are identical. The black version is typically preferred for broadcast studios, theaters, and spaces with dark interior design.

Can the black antenna be painted to a different color?

Yes. The enclosure accepts standard latex paint. While the default finish is black, it can be painted to match any interior color if the installation environment requires a specific finish.

Is this compatible with any wireless microphone brand?

Yes. The bundle works with any wireless microphone system operating in the 470–698 MHz UHF TV band with standard 50-ohm BNC antenna connections.

Does the system expand beyond 9 channels?

Yes. A second DISTRO9 HDR can be cascaded from any output to support up to 17 wireless microphone channels in 2 RU of rack space without requiring a second antenna pair.

What does the DC-Octopus cable do?

The DC-Octopus cable distributes 12 VDC power from the DISTRO9 HDR to up to 9 compatible wireless receiver units, eliminating the need for individual power adapters at each receiver location.

What warranty covers this bundle?

RF Venue products are covered by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for support.
