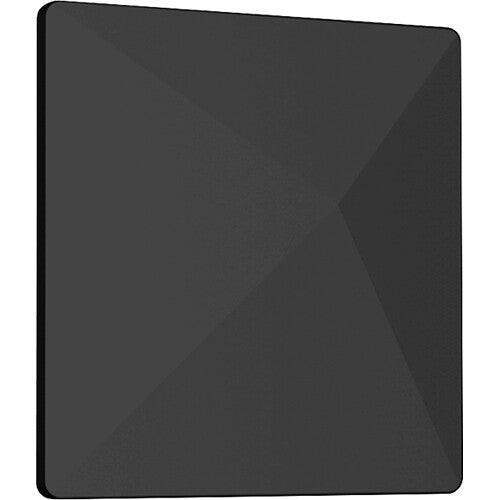

RF Venue D-ARCB – Black Diversity Architectural Antenna for Wireless Microphones

Product Overview

The RF Venue D-ARCB is a black Diversity Architectural Antenna designed for permanent wireless microphone installations in dark-finish environments. Using the same patent-pending dual-feed design as the white D-ARC, the D-ARCB provides both A and B diversity antenna outputs from a single slim black enclosure that mounts flush on any wall or ceiling and accepts non-metallic paint for custom color matching. Coverage is a 140-degree conical pattern with typical range to 200 feet, suitable for stage-wing, front-of-house, or ceiling placement.

Product Description

The D-ARCB is the black-finish counterpart to the white D-ARC. Both are functionally identical in RF performance — the same patent-pending dual-feed antenna design, the same 140-degree conical coverage pattern, the same typical 200-foot range, and the same quick-install rear mounting plate. The D-ARCB is specified for installations in environments where a black antenna finish is appropriate: dark wall installations, exposed ceiling structures, theatrical spaces, and any venue with dark-finish AV hardware specifications.

A single D-ARCB replaces two traditional LPDA paddle antennas, providing both A and B BNC diversity outputs from one installed unit. The slim profile mounts directly against a wall or ceiling surface with minimal protrusion. The pre-drilled rear mounting plate includes multiple hole patterns to suit different mounting substrates. Like the white version, the D-ARCB's enclosure can be painted with non-metallic paint to match any surrounding surface precisely — useful for installations where even the standard black finish needs to be customized to match a specific dark color scheme.

The D-ARCB is compatible with all major UHF wireless microphone systems in the 470–616 MHz range. For complete distribution packs including the D-ARCB, see the D-ARCBDISTRO4 (4-channel with DISTRO4) or D-ARCBD5 (5-channel with DISTRO5 HDR).

Key Features

• Black Finish — Blends into dark interiors, exposed ceilings, and theatrical environments; functionally identical to the white D-ARC.
• Dual-Feed Diversity Design — Patent-pending design provides A and B outputs from a single unit, replacing two traditional paddle antennas.
• Slim Wall/Ceiling-Mount Profile — Low-profile enclosure mounts flush on walls or ceilings with minimal visual footprint.
• Paintable Enclosure — Accepts non-metallic paint for precise color matching to any dark surface.
• 140° Conical Coverage — Effective at stage wings, FOH, or ceiling positions with typical range to 200 feet.
• Quick Installation — Pre-drilled rear mounting plate with multiple hole patterns; installs in minutes.
• Universal Compatibility — Works with all UHF wireless microphone receivers in the 470–616 MHz range.

Typical Applications

Suitable for:

• House of worship with dark-finish interior walls and permanent wireless microphone systems
• Auditorium and theater with exposed dark ceiling structures
• Conference room and boardroom with dark-finish AV specifications
• Government and corporate meeting spaces specifying black hardware
• Multi-purpose room and training room fixed AV installations

Technical Specifications

Frequently Asked Questions

What is the difference between D-ARCB and D-ARC?

The D-ARCB is the black finish version; the D-ARC is identical in white. Both provide the same RF performance, coverage pattern, and range. The choice is purely based on the installation environment's color requirements.

Can the D-ARCB be painted to match a specific dark color?

Yes. The D-ARCB accepts any non-metallic paint, allowing it to be matched precisely to a specific wall or ceiling color. Metallic paints should be avoided.

Does the D-ARCB need two separate cable runs?

Yes. The D-ARCB has two BNC output connectors (A and B) that each require a separate coaxial cable run to the antenna distribution system. Two 25-foot cables are included in the D-ARCBDISTRO4 and D-ARCBD5 bundles.

What distribution systems are compatible with the D-ARCB?

The D-ARCB is compatible with DISTRO4, DISTRO5 HDR, and DISTRO9 HDR. For complete packs, see D-ARCBDISTRO4 or D-ARCBD5.

Where can I purchase the D-ARCB?

Available through Creation Networks at creationnetworks.net.
