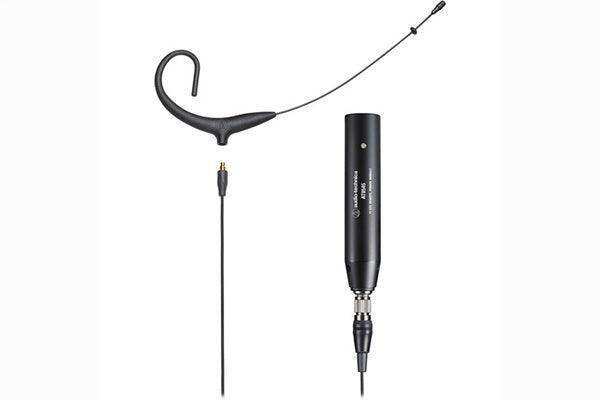

Audio-Technica BP892X MicroSet omnidirectional condenser headworn microphone with 55" detachable cable, includes AT8545 power module (Black)

Product Overview

The Audio-Technica BP892x is a subminiature omnidirectional headworn microphone for presenters, instructors, and worship leaders who need discreet, hands-free speech capture. This wired (black) version ships with the AT8545 power module, making it ready to connect to a mixer or DSP that supplies phantom power. With a 2.6 mm capsule and a flat, extended frequency response, the BP892x is a low-visibility headworn microphone well suited to broadcast studios, auditoriums, and houses of worship.

Product Description

The omnidirectional pattern keeps the talker's level consistent as they turn their head, which is ideal for energetic presenters and performers. The 2.6 mm MicroSet capsule and slim earpiece keep the microphone visually unobtrusive on camera and in the room.

The included AT8545 power module accepts the microphone's cH-style screw-down 4-pin input and provides a 3-pin XLRM output to your AV system, operating on 11V to 52V phantom power. A recessed switch in the module selects flat response or an integral 80 Hz UniSteep high-pass filter to control low-frequency ambient noise.

The 55″ detachable cable simplifies service and replacement. For theatrical and skin-tone applications, the beige BP892x-TH version offers the same capsule terminated for cH-style body-pack transmitters.

Key Features

• Subminiature omnidirectional capsule — A 2.6 mm omnidirectional element keeps level consistent during head movement and stays visually discreet on camera.
• Included AT8545 power module — The module provides a 3-pin XLRM output from the cH input and operates on 11V to 52V phantom power for direct connection to AV systems.
• Switchable UniSteep high-pass filter — A recessed switch selects flat response or an integral 80 Hz roll-off to control low-frequency ambient noise.
• Flat, extended frequency response — The 20–20,000 Hz response captures natural speech and vocals for reinforcement and broadcast.
• Detachable 55″ cable — The detachable cable simplifies maintenance and field replacement in install environments.

Typical Applications

• House of worship
• Auditorium
• Training room
• Broadcast studio
• Conference room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is the BP892x ready to plug into a mixer?

Yes. This wired version includes the AT8545 power module, which outputs a standard 3-pin XLRM connector and operates on 11V to 52V phantom power supplied by your mixer, interface, or DSP.

What is the difference between the BP892x and BP892x-TH?

The BP892x (black) ships with the AT8545 power module for phantom-powered, hardwired use. The BP892x-TH (beige) is terminated for cH-style body-pack transmitters and is intended for theatrical and skin-tone applications.

Why choose omnidirectional over cardioid for headworn use?

Omnidirectional headworn microphones maintain consistent level as the presenter moves their head and are less sensitive to placement, which suits dynamic speakers and performers.

How do I reduce low-frequency noise?

The AT8545 module includes a switch for an integral 80 Hz UniSteep high-pass filter, which attenuates low-frequency ambient noise while preserving speech clarity.

Is the cable replaceable?

Yes. The 55″ cable is detachable, which makes service and replacement straightforward in installed and touring use.

What warranty and support apply?

Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and fitment questions on orders placed with us.
