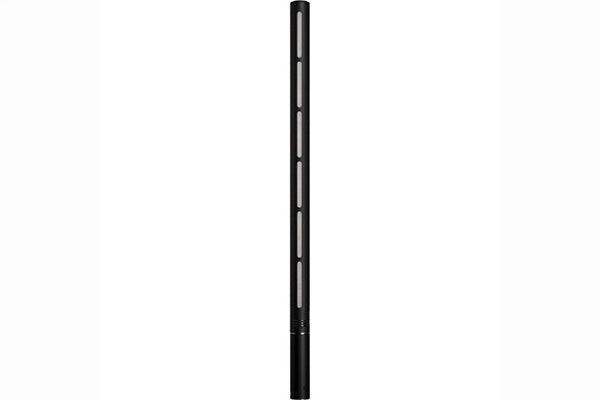

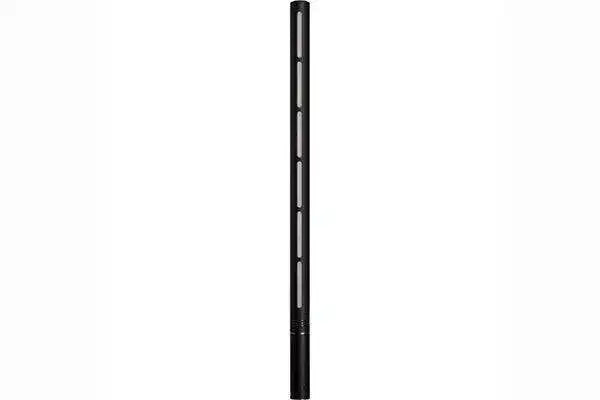

Audio-Technica BP28L Large-diaphragm Line + Gradient Microphone, 22" long

Product Overview

The Audio-Technica BP28L is a large-diaphragm line + gradient condenser shotgun microphone built for long-reach, low-noise pickup in broadcast, film, and theater sound. Its 22.4″ interference-tube body delivers an extremely tight, highly directional pattern that isolates a subject from surrounding noise. This professional shotgun microphone pairs a large-diaphragm element with a patented acoustic port design that keeps directionality consistent across the frequency range.

Product Description

The Audio-Technica BP28L is a large-diaphragm line + gradient condenser microphone engineered for demanding broadcast, film, and live-production audio. The 28 mm large-diaphragm element gives it exceptionally low self-noise for a shotgun, so distant or quiet sources are captured cleanly. At 569 mm (22.4″) long, the BP28L offers the tightest reach in the line for sideline sports, stage, and field work.

A patented acoustic port design maintains the tight polar pattern across the entire frequency range, while transformer-coupled output and a wide 11V–52V phantom power range suit a variety of broadcast and field rigs. Switchable 80 Hz high-pass and 10 dB pad let it handle wind rumble and high-SPL sources without added accessories. For studio and reach applications, compare it with other Audio-Technica microphones at Creation Networks, or browse our full range of professional microphones.

Key Features

• Large-diaphragm shotgun design — A 28 mm large-diaphragm element delivers exceptionally low self-noise for a line + gradient microphone.
• Extra-long reach — The 22.4″ interference tube produces the tightest, most directional pickup in the BP28 line.
• Consistent directionality — A patented acoustic port design maintains the pickup pattern across the full frequency range.
• Switchable HPF and pad — An 80 Hz high-pass filter and 10 dB pad manage low-frequency rumble and high-SPL sources.
• Wide phantom range — Operates on 11V to 52V phantom power for compatibility with broadcast and field equipment.
• Transformer-coupled output — Balanced, transformer-coupled output supports long cable runs in installed and remote setups.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Multi-purpose room

Frequently Asked Questions

Why does the BP28L use a large-diaphragm element?
The 28 mm large-diaphragm element gives the BP28L exceptionally low self-noise for a shotgun, so distant or quiet sources are captured cleanly with long reach.

What power does the BP28L require?
It operates on a wide 11V to 52V phantom power range for compatibility with broadcast and field equipment.

Can it handle loud sources and wind?
Yes. A switchable 80 Hz high-pass filter reduces low-frequency rumble and wind, and a switchable 10 dB pad handles high-SPL sources.

How does the BP28L compare with the BP28?
The BP28L is the longer 22.4″ model with the tightest reach in the line; the BP28 is a 14″ version for tighter spaces and easier boom handling.

Does it use a transformer-coupled output?
Yes. The balanced, transformer-coupled output supports long cable runs in installed and remote setups.

Is warranty and integration support available?
Audio-Technica's manufacturer warranty applies, and Creation Networks supports commercial AV buyers with selection and integration.
