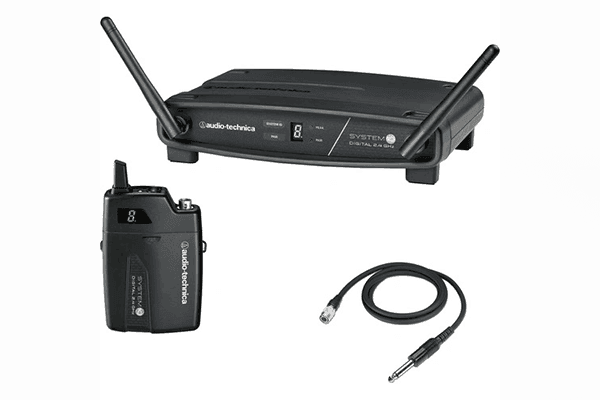

Audio-Technica ATW-1101/L System 10 Digital Wireless System includes: ATW-R1100 receiver and ATW-T1001 UniPak transmitter with MT830cW lavalier microphone, 2.4 GHz

• The System 10 offers full-bandwidth, 24-bit/48 kHz digital audio with none of the audio artifacts associated with analog companding.

Automatic Frequency Selection

• Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing.
• While in use, the system continually monitors activity in the 2.4 GHz Wi-Fi range and automatically switches to a clean frequency to avoid interference if necessary.

Lightweight, Portable Receiver Chassis

• The tabletop receiver chassis features a lightweight, plastic housing designed to let you stack multiple receivers on top of each other for convenience.
• The chassis' front-panel LEDs show pairing statuses and warn you if the transmitter's input level is set too high and causing distortion.
• A System ID number display indicates which transmitter is associated with a given receiver.
• Rear-panel connections include balanced XLR and unbalanced 1/4" output connections as well as an output level control.

Lightweight Bodypack Transmitter

• The transmitter is housed in lightweight, plastic chassis equipped with a Hirose 4-pin locking connector and a belt clip.
• An internal input trim control can be set, using the included screwdriver, to match the sensitivity of your microphone or audio source for distortion-free input.
• With just a quick press, the power switch on the transmitter doubles as a mute function— great for silent instrument swaps. This function can be locked out to prevent an accident.

Pairing Multiple Transmitters

• With this peer-to-peer system, the transmitter can only transmit to one receiver at a time. However, up to 8 transmitters can be paired with the receiver ahead of time. This is useful in situations when you use multiple instruments during a show (one at a time, each with its own bodypack transmitter) and you need them ready to go. All you'll have to do is turn one transmitter off and the next one on.

• Space Diversity: The receiver compares the signal showing up at its two antennas and chooses the strongest one.
• Time Diversity: The transmitter sends the digital signal in two imperceptibly different time slots and compares the two.
• Frequency Diversity: The digital audio is sent over two different frequencies at the same time and the system chooses the cleaner one.

For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.

2.4 GHz Wi-Fi Band

• Unlike traditional analog wireless systems, the System 10 operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.

Presenters

• The low-visibility, miniature MT830cW lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
• The AT831cW mini cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
• The discrete PRO-92cW earset mic provides improved clarity in spoken word applications.

Vocalists/Presenters

• The ATW-T1002 handheld transmitter/mic is available for presenters and performers who prefer the flexibility of a handheld microphone.

Video Conferencing

• The ATW-T1006 boundary transmitter/mic is designed for tabletop use, ideal for applications such as video-conferencing where minimum visibility is required.

Conferences/Boardrooms

• The ATW-T1007 base transmitter can be used with a gooseneck mic on a table for situations where wired mics are impractical.
