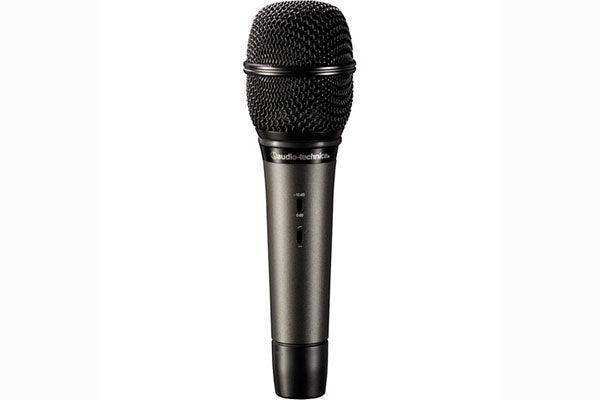

Audio-Technica ATM710 Cardioid condenser handheld microphone

Product Overview

The Audio-Technica ATM710 is an Artist Series cardioid condenser handheld microphone tailored for exacting detail and high-fidelity vocal reproduction. Its condenser design delivers studio-quality clarity on stage, while the cardioid polar pattern reduces pickup from the sides and rear to improve isolation of the desired source. An integral 80 Hz hi-pass filter and switchable 10 dB pad add flexibility for close vocal use and higher SPL handling. It excels in venues with controlled stage volume or in-ear monitoring.

Product Description

The ATM710 is a vocal condenser microphone engineered for clarity in live performance. Its fixed-charge back plate, permanently polarized condenser element delivers remarkable detail across a 40 to 20,000 Hz frequency response. The cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source and supporting gain before feedback on a loud stage. An integral 80 Hz high-pass filter switches the microphone from a flat frequency response to a low-end roll-off that reduces sensitivity to popping in close vocal use.

A switchable 10 dB pad lowers sensitivity to provide higher SPL capability, useful for powerful vocalists and loud sources. Superior anti-shock engineering keeps handling noise low, and a multi-stage grille design offers protection against plosives and sibilance without compromising high-frequency clarity. The microphone operates on 11 to 52V DC phantom power and uses a gold-plated XLRM-type connector with corrosion-resistant contacts. Its rugged, all-metal construction is built for years of trouble-free use in demanding AV environments. You can review this Audio-Technica vocal condenser microphone and related stage audio gear at Creation Networks.

Key Features

• Condenser Vocal Clarity — The condenser design delivers studio-quality performance and high-fidelity, detailed vocal reproduction.
• Cardioid Isolation — The cardioid polar pattern reduces pickup from the sides and rear, improving isolation of the desired source.
• Switchable 80 Hz HPF — The integral 80 Hz high-pass filter switches from flat response to a low-end roll-off that reduces popping in close use.
• Switchable 10 dB Pad — The pad lowers sensitivity to provide higher SPL capability for loud sources.
• Low Handling Noise — Superior anti-shock engineering keeps handling noise low during handheld use.
• Multi-Stage Grille — The grille design protects against plosives and sibilance without compromising high-frequency clarity.
• Gold-Plated XLRM Connector — Corrosion-resistant contacts on the gold-plated XLRM-type connector support reliable signal transfer.
• Rugged All-Metal Build — The all-metal design and construction is built for years of trouble-free use.

Technical Specifications

Specifications sourced from Audio-Technica (audio-technica.com).
