Audio-Technica ATM510 Cardioid dynamic handheld microphone is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Product Overview

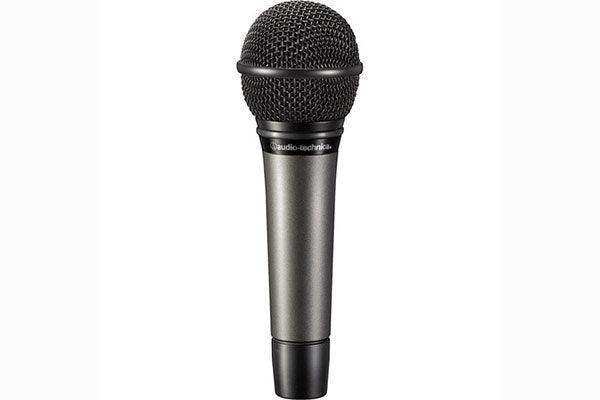

The Audio-Technica ATM510 is a handheld cardioid dynamic microphone built for natural vocal reproduction on stage and at the podium. Its cardioid polar pattern delivers on-axis directivity while rejecting sound from the sides and rear, improving isolation and feedback control. A neodymium rare-earth magnet drives higher output and faster transient response. The all-metal body is built to handle the rigors of touring and live production.
Product Description

The ATM510 is a cardioid dynamic handheld microphone designed for full-range vocal reproduction in houses of worship, concert venues, conferences, and live stage applications. Its cardioid polar pattern concentrates pickup on the sound directly in front of the capsule while attenuating off-axis sources, which improves gain-before-feedback in loud rooms. The dynamic element uses a neodymium rare-earth magnet to raise output level and sharpen transient response, helping vocals cut through a mix. A 90 Hz to 16 kHz frequency response naturally tempers extreme highs and lows for a tone tailored to speech and singing. The multi-stage windscreen guards against plosives, wind noise, and sibilance, while an anti-shock internal mounting system controls handling noise during energetic performances. Rugged all-metal construction makes this Audio-Technica handheld vocal microphone dependable for life on the road, and a Quiet-Flex stand clamp allows silent, flexible positioning when it is mounted. Gold-plated XLR 3-pin contacts resist corrosion for reliable connections over time. The microphone ships with a stand adapter and a soft protective pouch. Compare it against other live vocal microphones at Creation Networks.
Key Features
- Cardioid Polar Pattern — Reduces pickup of sound from the sides and rear to improve isolation and minimize feedback.
- Neodymium Element — A rare-earth magnet delivers improved output level and transient response for vocals that cut through.
- Anti-Shock Mounting — An internal mounting system reduces handling and stage noise during live use.
- Multi-Stage Windscreen — Provides protection against plosives, wind noise, and sibilance without dulling clarity.
- Quiet-Flex Stand Clamp — Allows silent, flexible microphone positioning when stand-mounted.
- All-Metal Construction — Rugged housing stands up to the demands of touring and repeated handling.
- Gold-Plated XLR Contacts — Corrosion-resistant 3-pin connector maintains reliable signal integrity.
Technical Specifications
| Element | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Response | 90-16,000 Hz |
| Open Circuit Sensitivity | -55 dB (1.7 mV) re 1V at 1 Pa |
| Weight | 258 g (9.1 oz) |
| Output Connector | Integral 3-pin XLRM-type |
Specifications sourced from Audio-Technica (audio-technica.com).
