Audio-Technica ATM450 Cardioid side-address condenser stick instrument microphone
Audio-Technica ATM450 Cardioid side-address condenser stick instrument microphone is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Audio-Technica ATM450 Cardioid side-address condenser stick instrum...
Product Overview

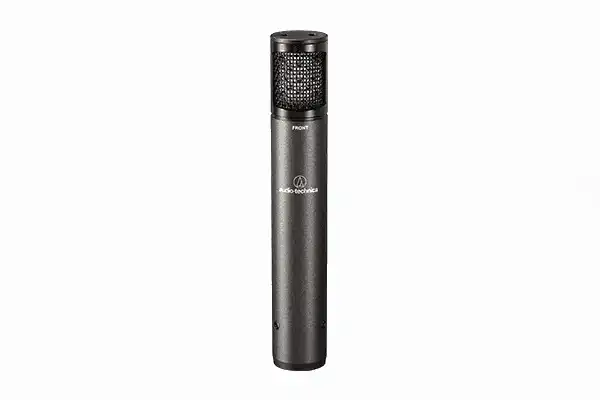

The Audio-Technica ATM450 is a cardioid condenser instrument microphone in a slim side-address stick design that offers flexible placement with minimal obstruction. Its extended, flat frequency response and very high SPL handling make it ideal for live and amplified acoustic instruments, drum overheads, and brass. This professional side-address condenser combines studio clarity with road-ready durability.
Product Description
The Audio-Technica ATM450 places a cardioid capsule with a uniform 120-degree angle of acceptance in a stick body, so it tucks into tight stage positions. It handles up to 152 dB SPL (162 dB with the pad) with a 127 dB dynamic range for the loudest sources.
A switchable 80 Hz high-pass filter and 10 dB pad manage low-frequency rumble and high-SPL sources, and a professional isolation clamp provides secure mounting and mechanical-noise damping. It runs on 11V to 52V phantom power with a balanced XLRM output. Explore more Audio-Technica instrument microphones at Creation Networks.
Key Features
- Side-address stick design — A slim stick body allows flexible placement with minimal obstruction on a crowded stage.
- Very high SPL handling — Handles up to 152 dB SPL (162 dB with the pad), with a 127 dB dynamic range.
- Cardioid pattern — A uniform 120-degree cardioid pattern improves isolation and gain before feedback.
- Switchable filter and pad — An 80 Hz high-pass filter and 10 dB pad manage rumble and loud sources.
- Extended flat response — A 40 Hz to 20,000 Hz response suits amplified acoustic instruments and overheads.

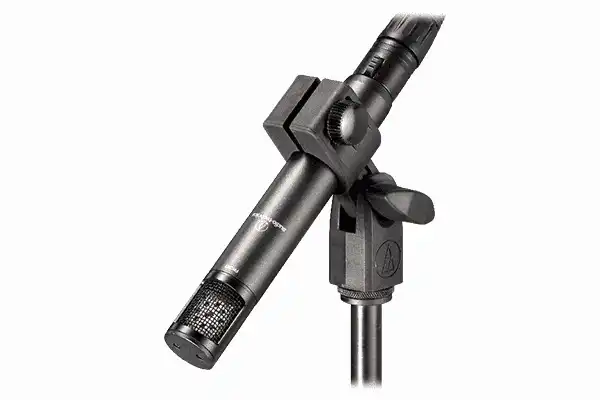

- Isolation clamp included — A professional isolation clamp provides secure mounting and mechanical-noise damping.
Typical Applications
- Auditorium
- House of worship
- Broadcast studio
- Multi-purpose room
Frequently Asked Questions
What is the ATM450 best used for?
Live and amplified acoustic instruments, drum overheads, brass, and other high-SPL sources.
How loud a source can it handle?
Up to 152 dB SPL, or 162 dB with the switchable 10 dB pad, with a 127 dB dynamic range.
What is the polar pattern and response?
Cardioid with a uniform 120-degree acceptance angle and a 40 Hz to 20,000 Hz frequency response.
Does it have a low-cut filter?
Yes. A switchable 80 Hz high-pass filter switches from flat response to low-end roll-off.
What power does it require?
It operates on 11V to 52V phantom power with a balanced XLRM output.
Is warranty and integration support available?
Audio-Technica's manufacturer warranty applies, and Creation Networks supports commercial AV buyers with selection, design, and integration.
Technical Specifications
| Type | Cardioid condenser (side-address stick) |
|---|---|
| Polar pattern | Cardioid, 120-degree acceptance |
| Frequency response | 40–20,000 Hz |
| Maximum SPL | 152 dB (162 dB with pad) |
| Dynamic range | 127 dB |
| Filter / pad | Switchable 80 Hz HPF; 10 dB pad |
| Output | Balanced Lo-Z, 3-pin XLRM |
| Power | 11V to 52V phantom |
| Included | Isolation clamp |
