Audio-Technica AT831B Cardioid Condenser Lavalier Microphone
Audio-Technica AT831B Cardioid Condenser Lavalier Microphone is backordered and will ship as soon as it is back in stock.
Audio-Technica AT831B Cardioid Condenser Lavalier Microphone
Product Overview
The Audio-Technica AT831b is a miniature cardioid condenser lavalier microphone for presenters and lecturers, supplied with an in-line phantom power module for wired use. Its cardioid pattern rejects off-axis sound to improve gain-before-feedback in reinforced conference rooms and houses of worship. It delivers clear, intelligible speech for sound reinforcement and lecture capture.
Product Description

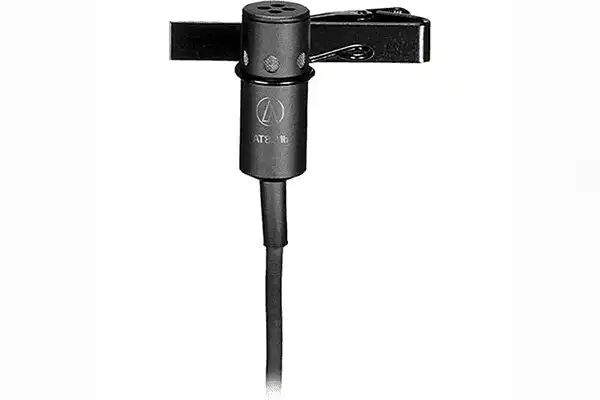

Clipped to a lapel, the AT831b provides a clean speech signal with a directional cardioid pattern that helps control feedback where loudspeakers are active.
Frequency response runs 40–18,000 Hz with a 200 ohm impedance, and an integral 80 Hz high-pass filter controls rumble. The microphone terminates in a TA3F connector to its in-line power module and operates on 11V to 52V phantom power.
For variants terminated for specific wireless transmitters, see the cH-style AT831cH and the UniPak AT831cW.
Key Features
- Cardioid lavalier capsule — A directional pattern rejects off-axis sound to improve gain-before-feedback in reinforced rooms.

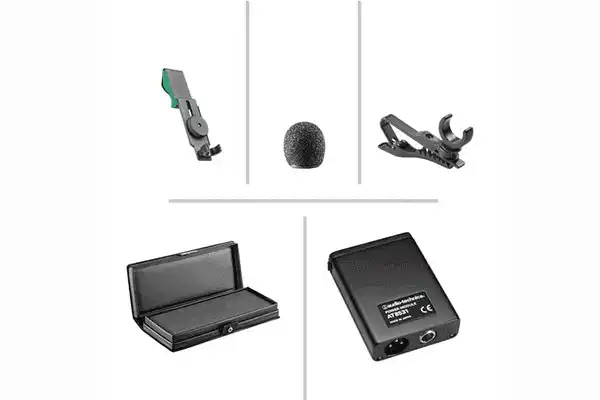

- Included power module — An in-line phantom power module connects the microphone to a standard XLR mixer or DSP input.
- Integral 80 Hz high-pass filter — An integral filter controls rumble and handling noise for clean speech.
- Wide phantom range — Operation on 11V to 52V phantom power suits a broad range of consoles and interfaces.
- Discreet clip-on form — The miniature lavalier mounts unobtrusively on a lapel for presentations and broadcast.
Technical Specifications
| Type | Condenser (lavalier) |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 40–18,000 Hz |
| Impedance | 200 ohms |
| High-pass filter | Integral 80 Hz |
| Termination | TA3F to in-line power module |
| Power | 11V to 52V phantom |
