Audio-Technica AT5040 Side-address studio cardioid condenservocal microphone

Product Overview

The Audio-Technica AT5040 is a side-address studio cardioid condenser microphone designed specifically as a first-choice vocal microphone for professional recording environments. Built around a unique quad rectangular diaphragm assembly, this large-diaphragm studio condenser vocal microphone delivers exceptionally low self-noise at 5 dB SPL, making it one of the quietest microphones available for critical studio vocal tracking. The AT5040 combines wide dynamic range with smooth, controlled high-frequency response — characteristics that make it equally well-suited to broadcast voiceover studios and high-end post-production facilities. Each unit is hand-assembled and individually inspected, placing it firmly in the category of reference-grade large-diaphragm condenser microphones for professional studio recording.

Product Description

At the core of the AT5040 is Audio-Technica's largest-ever capsule assembly: four ultra-thin 2-micron rectangular diaphragms wired together as a single element, providing a combined surface area approximately twice that of a standard one-inch circular diaphragm. This design approach delivers the transient speed and low noise of a small-diaphragm condenser while retaining the warmth and presence typically associated with large-diaphragm studio microphones. The transformer-coupled output contributes to a smooth, musical quality that engineers frequently describe as neutral without being clinical. With a maximum SPL rating of 142 dB and a dynamic range of 137 dB, the AT5040 handles both delicate whispered passages and full-voice performances without distortion or compression artifacts.

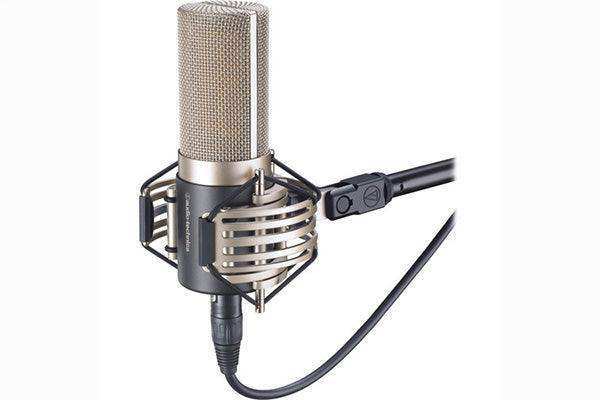

The microphone ships with Audio-Technica's AT8480 shock mount, which uses an advanced internal decoupling system to isolate the capsule from stand-transmitted vibration and low-frequency rumble — particularly useful in live tracking rooms where floor vibration is a concern. The housing is machined aluminum and brass with a matte gray finish that reduces reflectivity under studio lighting. All discrete components are individually selected for matched performance, and each AT5040 comes with a custom hard-shell carrying case. For AV integrators and studio designers specifying a fixed vocal recording chain, the AT5040 connects via a standard 3-pin XLR output and requires standard 48V phantom power, making it compatible with any professional audio interface or mic preamp.

Key Features

• Quad Rectangular Diaphragm Assembly — Four 2-micron ultra-thin diaphragms function as a single element with twice the surface area of a standard 1-inch capsule, yielding low noise and fast transient response.
• 5 dB SPL Self-Noise — Among the lowest noise floors of any microphone on the market, making it suitable for the most detail-sensitive vocal and acoustic recording applications.
• 137 dB Dynamic Range — Handles whispered performances through full-projection vocals without requiring pad switching or gain adjustment mid-session.
• 142 dB Maximum SPL — Accommodates high-output sources in proximity without capsule overload or transient clipping.
• Transformer-Coupled Output — Provides the smooth sonic character associated with classic large-diaphragm studio condensers while maintaining accurate frequency reproduction.
• Advanced Internal Shock Mounting — Capsule assembly is mechanically decoupled from the microphone body, reducing stand-transmitted noise without relying solely on an external shock mount.
• Included AT8480 Shock Mount — Custom-designed suspension mount provides additional isolation and fits standard 5/8-27 threaded stands.
• Hand-Assembled Construction — Every unit is individually inspected and verified before shipping, ensuring matched performance across units in multi-microphone installations.
• Aluminum and Brass Housing — Durable, low-reflectivity matte gray finish withstands long-term studio use and resists electromagnetic interference.
• Standard 48V Phantom Power — Integrates directly with any professional audio interface, mixing console, or standalone preamp without additional power supply.

Typical Applications

• Broadcast studio (radio, podcast, voiceover)
• Professional recording studio vocal tracking
• Post-production and ADR recording
• House of worship spoken word and lead vocal reinforcement recording
• Auditorium and performing arts facility recording
• Multi-purpose room and training room audio recording setups

Technical Specifications

Frequently Asked Questions

What phantom power does the AT5040 require?
The AT5040 requires standard 48V phantom power at 3.8 mA typical draw. It is compatible with any professional preamp, audio interface, or mixing console that provides 48V phantom power on a balanced XLR input.

Does the AT5040 include a shock mount?
Yes. The AT5040 ships with Audio-Technica's AT8480 custom shock mount, designed specifically for this microphone body. The mount accepts standard 5/8"-27 threaded stand adapters common in professional studio and live sound installations.

Is the AT5040 suitable for applications beyond vocal recording?
Yes. While optimized for studio vocal tracking, the AT5040's wide dynamic range and low noise floor make it appropriate for acoustic instruments, voiceover booths, broadcast studios, and any application requiring a reference-grade large-diaphragm condenser.

How does the quad rectangular diaphragm differ from a standard large-diaphragm capsule?
The AT5040 uses four rectangular 2-micron diaphragms wired together as one element, achieving roughly twice the surface area of a conventional 1-inch circular diaphragm. This design lowers the noise floor while preserving fast transient response that a single large capsule can sometimes compromise.

What warranty does the AT5040 carry?
Audio-Technica covers the AT5040 under their 5-Year Limited End User Warranty in the United States. Warranty service is handled through Audio-Technica's authorized service network.

Can the AT5040 be integrated into a fixed studio installation?
Yes. The microphone uses a standard 3-pin XLR output and is compatible with any professional signal chain. For permanent installations, the included shock mount can be fitted to a fixed boom arm or studio mic stand. Contact Creation Networks for studio integration consultation.

What is the maximum SPL the AT5040 can handle?
The AT5040 is rated to 142 dB SPL at 1 kHz at 1% T.H.D., making it suitable for high-output sources placed in close proximity without the need for an external pad.
