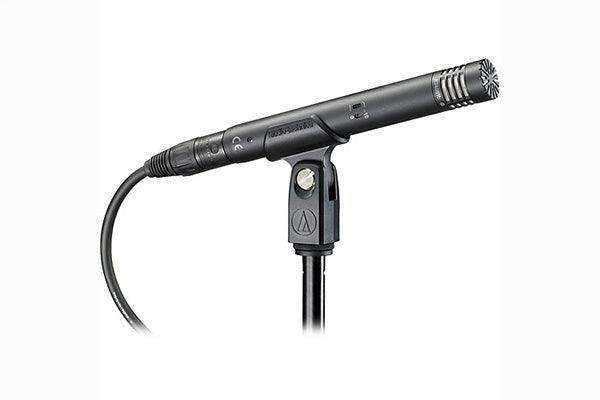

Audio-Technica AT4051B End-address cardioid condenser microphone
Audio-Technica AT4051B End-address cardioid condenser microphone is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Audio-Technica AT4051B End-address cardioid condenser microphone
Product Overview
The Audio-Technica AT4051B is an end-address cardioid condenser microphone built for accurate, detailed capture of acoustic instruments, overheads, and ensembles. Its small-diaphragm design and cardioid pattern make it a precise instrument condenser microphone for broadcast studios, auditoriums, and houses of worship. A switchable 10 dB pad and 80 Hz roll-off adapt it to loud sources and control rumble.
Product Description
The AT4051B delivers fast transient response and a focused cardioid pattern, which suits acoustic guitar, piano, strings, drum overheads, and ensemble capture where detail and off-axis rejection matter. It is part of Audio-Technica's 40 Series of precision studio microphones.
A switchable 80 Hz high-pass filter (12 dB/octave) controls stage rumble and proximity buildup, while a switchable 10 dB pad extends headroom for high-SPL sources. The microphone requires 48V phantom power.
For omnidirectional and hypercardioid coverage in the same family, see the AT4049B omnidirectional and AT4053B hypercardioid condenser microphones.
Key Features
- Cardioid small-diaphragm element — A focused cardioid pattern with fast transient response captures detailed acoustic instruments and overheads.
- Switchable 80 Hz high-pass filter — A 12 dB/octave roll-off controls stage rumble and proximity buildup for clean reproduction.
- Switchable 10 dB pad — The pad extends headroom for high-SPL sources without overloading the input.
- 40 Series precision — The 40 Series design delivers accurate, professional studio reproduction.
- 48V phantom operation — Standard phantom powering integrates with professional consoles, interfaces, and DSP inputs.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
- Multi-purpose room
Technical Specifications
| Type | Externally polarized (DC bias) condenser |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 20–20,000 Hz |
| Low-frequency roll-off | 80 Hz, 12 dB/octave (switchable) |
| Pad | Switchable 10 dB |
| Power | 48V phantom |
| Series | 40 Series studio microphones |
Frequently Asked Questions
What is the AT4051B best used for?
Acoustic guitar, piano, strings, drum overheads, and ensemble capture, where a detailed cardioid small-diaphragm condenser is preferred.
Does it require phantom power?
Yes. It requires 48V phantom power from your console, interface, or DSP.
When should I use the pad and filter?
Engage the 10 dB pad for loud sources to add headroom, and the 80 Hz high-pass filter to reduce rumble and proximity buildup.
How is it different from the AT4053B?
The AT4051B is cardioid; the AT4053B is hypercardioid, offering tighter directionality and more side rejection for louder rooms.
How does it integrate into our system?
It connects on standard 3-pin XLR to a phantom-powered channel on your mixer or DSP.
What warranty applies?
Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and product questions on orders placed with us.
