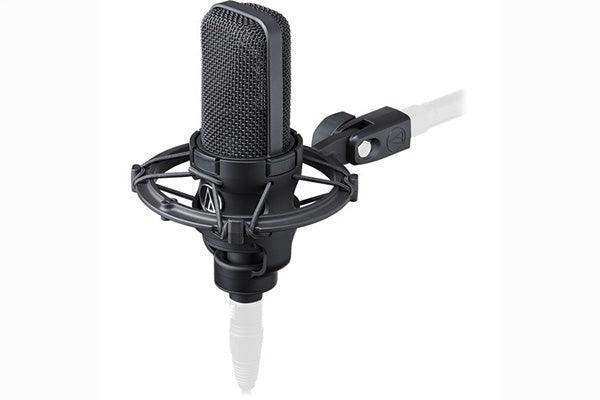

Audio-Technica AT4040 Side-address cardioid condenser microphone
Product Overview
The Audio-Technica AT4040 is a large-diaphragm side-address cardioid condenser microphone known for low noise, wide dynamic range, and high-SPL capability. It is a versatile cardioid condenser microphone for vocals, voiceover, and acoustic instruments in broadcast studios, auditoriums, and houses of worship. A switchable 10 dB pad and 80 Hz high-pass filter adapt it to loud sources and control rumble.
Product Description
The AT4040 delivers a smooth, natural sound with high output sensitivity (25.1 mV) and exceptionally low self-noise, which makes it a dependable choice for detailed vocal and voiceover work. Its cardioid pattern rejects off-axis sound to improve isolation in reinforced rooms.
An integral 80 Hz high-pass filter switches from flat response to a low-end roll-off to control rumble and proximity buildup, while a switchable 10 dB pad raises maximum SPL capability for loud sources. The microphone requires 48V phantom power.
For multi-pattern flexibility, the AT4050 adds omnidirectional and figure-of-eight patterns, and the AT4033A offers another cardioid studio option.
Key Features
- Large-diaphragm side-address element — A natural, detailed cardioid sound suits vocals, voiceover, and acoustic instruments.
- Low noise, wide dynamic range — Exceptionally low self-noise supports quiet, detailed sources with clean results.
- Switchable 80 Hz high-pass filter — An integral filter switches from flat response to a low-end roll-off to control rumble.
- Switchable 10 dB pad — The pad raises maximum SPL capability for close placement on loud sources.
- 48V phantom operation — Standard phantom powering integrates with professional consoles, interfaces, and DSP inputs.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
- Multi-purpose room
Technical Specifications
| Type | Externally polarized (DC bias) condenser |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 20–20,000 Hz |
| Open circuit sensitivity | –32 dB (25.1 mV) re 1V at 1 Pa |
| Impedance | 100 ohms |
| Maximum input SPL | 145 dB SPL, 1 kHz at 1% T.H.D. (155 dB with 10 dB pad) |
| Pad | Switchable 10 dB |
| High-pass filter | Switchable 80 Hz |
| Power | 48V phantom |
| Series | 40 Series studio microphones |
Frequently Asked Questions
What is the AT4040 best used for?
Vocals, voiceover, and acoustic instruments where a natural, low-noise large-diaphragm cardioid condenser is preferred.
Does it require phantom power?
Yes. It requires 48V phantom power from your console, interface, or DSP.
When should I use the pad and filter?
Engage the 10 dB pad for loud sources, and the 80 Hz high-pass filter to control rumble and proximity buildup.
Why choose the AT4040 over the AT4050?
The AT4040 is a fixed-cardioid studio standard; the AT4050 adds omnidirectional and figure-of-eight patterns for more flexibility.
How does it integrate into our system?
It connects on standard 3-pin XLR to a phantom-powered channel on your mixer or DSP.
What warranty applies?
Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and product questions on orders placed with us.
