Audio-Technica AT4021 End-address cardioid condenser microphone
Product Overview

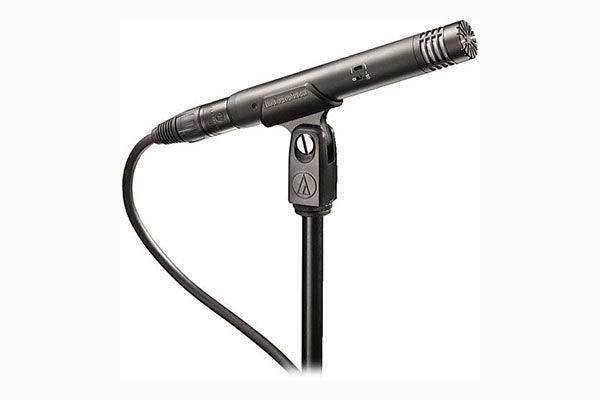

The Audio-Technica AT4021 is an end-address cardioid condenser microphone in a compact pencil form, built for detailed capture of acoustic instruments, overheads, and ensembles. Its cardioid pattern and fast transient response make it a precise cardioid condenser microphone for broadcast studios, auditoriums, and houses of worship. A switchable 10 dB pad extends its high-SPL capability.
Product Description
The AT4021 delivers accurate, transparent reproduction with a focused cardioid pattern that rejects off-axis sound, which suits acoustic guitar, piano, strings, and drum overheads. The pencil body mounts easily on stands and overhead arrays.
Frequency response runs 20–20,000 Hz with a 19.9 mV output sensitivity, and a switchable 10 dB pad raises the maximum SPL capability to 156 dB for loud sources. The microphone requires 48V phantom power.
For an omnidirectional pencil in the same family, see the AT4022; for a matched stereo pair, the AT4041SP studio pack is a complete option.
Key Features
- Cardioid pencil condenser — A focused cardioid pattern with fast transient response captures detailed acoustic instruments and overheads.
- Switchable 10 dB pad — The pad raises the maximum SPL capability to 156 dB for close placement on loud sources.
- Accurate, transparent sound — The 40 Series element delivers detailed, natural reproduction for studio and broadcast.
- Stand- and array-friendly — The compact end-address body mounts easily on stands and overhead arrays.
- 48V phantom operation — Standard phantom powering integrates with professional consoles, interfaces, and DSP inputs.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
- Multi-purpose room
Technical Specifications
| Type | Fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 20–20,000 Hz |
| Open circuit sensitivity | 19.9 mV at 1V, 1 Pa |
| Maximum input SPL | 146 dB SPL (156 dB with 10 dB pad) |
| Pad | Switchable 10 dB |
| Power | 48V phantom |
| Series | 40 Series studio microphones |
Frequently Asked Questions
What is the AT4021 best used for?
Acoustic guitar, piano, strings, drum overheads, and ensemble capture where a detailed cardioid pencil condenser is preferred.
Does it require phantom power?
Yes. It requires 48V phantom power from your console, interface, or DSP.
When should I use the 10 dB pad?
Engage the pad for high-SPL sources; it raises the maximum sound level capability to 156 dB SPL.
How is it different from the AT4022?
The AT4021 is cardioid (directional), while the AT4022 is omnidirectional for natural, open room capture.
How does it integrate into our system?
It connects on standard 3-pin XLR to a phantom-powered channel on your mixer or DSP.
What warranty applies?
Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and product questions on orders placed with us.
