Audio-Technica AE5400 Large-diaphragm cardioid true condenser handheld microphone
Audio-Technica AE5400 Large-diaphragm cardioid true condenser handheld microphone is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Audio-Technica AE5400 Large-diaphragm cardioid true condenser handh...
Product Overview

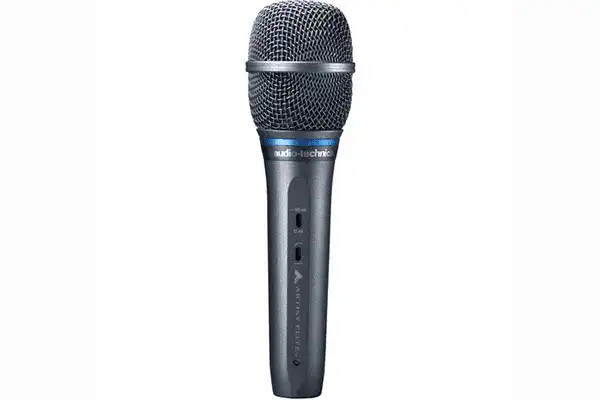

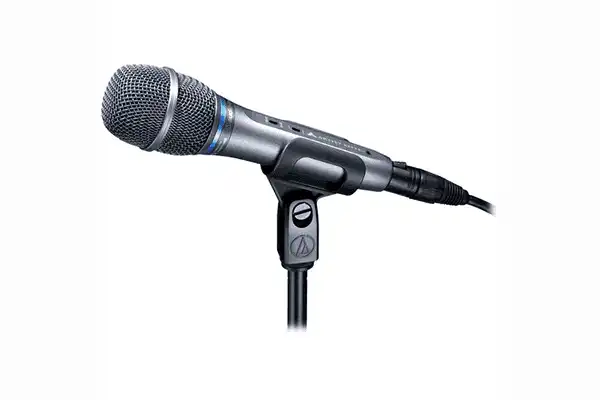

The Audio-Technica AE5400 is a large-diaphragm cardioid condenser handheld microphone built for lead vocals in live sound and installed reinforcement. It uses the same large diaphragm element found in Audio-Technica's AT4047 studio microphone, bringing studio-grade vocal detail to handheld use in houses of worship, auditoriums, and multi-purpose rooms. As a true condenser handheld microphone with a cardioid pattern, it offers clear, present vocal reproduction with strong gain-before-feedback for stage and podium use.
Product Description
The cardioid pattern focuses on the vocalist and rejects off-axis sound, which helps control feedback in reinforced rooms. The large-diaphragm true condenser element captures detail and presence that smaller dynamic handhelds cannot, making it a strong choice for featured vocals and worship leaders.
Two switches let an engineer condition the microphone for the room: a switchable 80 Hz high-pass filter (12 dB/octave) controls proximity buildup and stage rumble, and a 10 dB pad extends headroom for loud sources. With a maximum SPL of 147 dB (157 dB with the pad) and a 133 dB dynamic range, the AE5400 handles high-energy vocal performance.
For AV system integration, the AE5400 connects via standard 3-pin XLR and requires phantom power from your mixer, interface, or DSP. In facilities that also need an instrument condenser, the dual-element AE2500 complements the AE5400 within the same Artist Elite family.
Key Features
- Large-diaphragm true condenser element — The AT4047-derived element delivers studio-grade vocal detail and presence in a handheld form for live use.
- Cardioid polar pattern — Focused pickup rejects off-axis sound to improve gain-before-feedback in reinforced rooms.
- Switchable 80 Hz high-pass filter — A 12 dB/octave roll-off controls proximity buildup and stage rumble for clean vocal reproduction.
- Switchable 10 dB pad — The pad extends headroom to handle high-SPL vocalists without overloading the input.
- High maximum SPL — Handling up to 147 dB (157 dB with the pad) supports loud, dynamic vocal performance.
Typical Applications
- House of worship
- Auditorium
- Broadcast studio
- All-hands room
- Multi-purpose room
Technical Specifications
| Type | Externally polarized (DC bias) true condenser |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 20–20,000 Hz |
| Low-frequency roll-off | 80 Hz, 12 dB/octave (switchable) |
| Open circuit sensitivity | –40 dB (10.0 mV) re 1V at 1 Pa |
| Impedance | 150 ohms |
| Maximum input SPL | 147 dB SPL (157 dB with 10 dB pad) |
| Dynamic range | 133 dB |
| Pad | Switchable 10 dB |
| Output connector | 3-pin XLRM-type |
Frequently Asked Questions
Does the AE5400 need phantom power?
Yes. As a true condenser microphone, the AE5400 requires phantom power (typically 48V) from your mixer, interface, or DSP input.
Why use a condenser handheld instead of a dynamic?
A large-diaphragm condenser like the AE5400 captures more detail and presence than typical dynamic handhelds, which benefits featured vocals and worship leaders, while the cardioid pattern maintains feedback control.
How do the switches help in a live room?
The 80 Hz high-pass filter controls proximity buildup and stage rumble, and the 10 dB pad adds headroom for loud vocalists. Both let you condition the microphone for the specific room.
Can it be used on a wireless system?
The AE5400 is a wired handheld microphone. For Audio-Technica wireless handheld capsules, a different model is required; contact Creation Networks for compatible wireless options.
How does it integrate into our AV system?
It connects on standard 3-pin XLR to a phantom-powered channel on your mixer or DSP, like any professional condenser microphone.
What warranty and support apply?
Audio-Technica provides a limited warranty; refer to their current terms for coverage. Creation Networks supports warranty and product questions on orders placed with us.
