Audio-Technica 2-CH KIT 470T530 2 Channel Remote 1/2 Wave Antenna Kit for Wireless Microphones 470-530 MHz

Product Overview

The Audio-Technica 2-CH KIT 470T530 is a 2-channel remote 1/2-wave antenna kit designed to improve UHF reception for wireless microphone systems operating in the 470 to 530 MHz range. Built for smaller installations, AV media carts, training rooms, and meeting spaces, this remote antenna kit for wireless microphones provides everything needed to relocate antennas away from the rack and reduce signal dropouts. It is a practical solution for integrators specifying a two-channel antenna distribution kit. The kit supports both front-panel and remote mounting for flexible deployment.

Product Description

This 2-channel antenna kit is intended to improve UHF reception for wireless microphone systems by allowing antennas to be mounted remotely or to the front of an equipment rack. Relocating antennas away from metal rack enclosures and toward the coverage area is a common technique for reducing dropouts, and this kit packages the components required to do so. It is well suited to smaller installations such as classrooms, training rooms, and commercial meeting spaces where a clean, reliable RF path is needed.

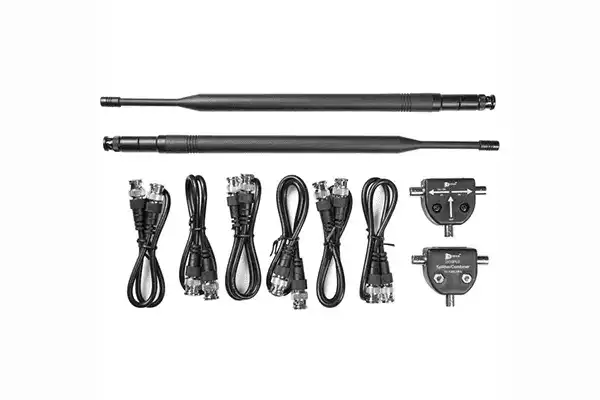

The kit provides two 1/2-wave antennas with BNC pass-through connectors for front-panel mounting, along with bracket hardware for remote mounting on a wall or surface. Six 2-foot coaxial cables are included to connect the antennas to the supplied pair of 2-way splitters and on to any compatible UHF receiver with removable antennas operating in the 470 to 530 MHz band. Because the kit distributes a shared antenna pair across two receiver channels, it helps reduce antenna clutter while supporting consistent reception. Integrators planning a wireless deployment can review compatible receivers and RF distribution components at Creation Networks. The result is a straightforward, rack-friendly approach to improving wireless microphone reliability in the 470 to 530 MHz range.

Key Features

• 470 to 530 MHz Coverage — Matched to wireless microphone systems operating within the 470 to 530 MHz UHF band.
• Two 1/2-Wave Antennas — Includes a pair of 1/2-wave antennas for improved reception over standard receiver-mounted whips.
• Front-Panel Mounting — BNC pass-through connectors allow the antennas to mount to the front of an equipment rack.
• Remote Mounting Hardware — Included bracket hardware supports mounting antennas remotely on a wall or surface.
• Coaxial Cabling — Six 2-foot coaxial cables connect the antennas to the splitters and receivers.
• Two-Way Splitters — A pair of 2-way splitters distributes the antenna pair across two receiver channels.
• Receiver Compatibility — Works with any compatible UHF receiver that has removable antennas.

Typical Applications

• Training rooms running two-channel wireless microphone systems
• Conference rooms and huddle rooms with rack-mounted receivers
• Commercial meeting spaces needing reduced dropouts
• Multi-purpose rooms with antennas mounted toward the coverage area
• House of worship spaces using two wireless channels
• Government and commercial AV carts requiring portable RF distribution

Technical Specifications

Specifications sourced from Audio-Technica (audio-technica.com).

Frequently Asked Questions

What frequency range does this kit support?

The 2-CH KIT 470T530 is matched to wireless microphone systems operating in the 470 to 530 MHz UHF band. Confirm that your receivers fall within this range before specifying the kit.

How many channels does the kit support?

The kit supports two channels by distributing a shared pair of antennas across two receivers using the included pair of 2-way splitters.

How are the antennas mounted?

The antennas can be mounted to the front of an equipment rack using the included BNC pass-through connectors, or remotely on a wall or surface using the supplied bracket hardware.

What is included for cabling?

Six 2-foot coaxial cables are provided to connect the two antennas to the pair of 2-way splitters and on to your receivers.

Which receivers is the kit compatible with?

The kit works with any compatible UHF receiver that has removable antennas and operates within the 470 to 530 MHz range. Contact our team if you need help confirming compatibility with your system.

What warranty and support are available?

This product is supplied through Audio-Technica and covered by the applicable manufacturer warranty. For warranty details or AV system integration guidance, contact the Creation Networks team.
