Audinate Dante AVIO 2x2 USB Type-C I/O Adapter for Dante Audio Network
Product Overview

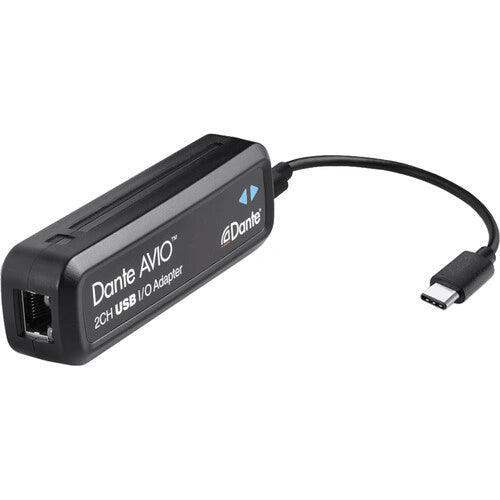

The Audinate Dante AVIO 2x2 USB Type-C adapter connects Mac, Windows, or Linux computers directly to a Dante audio network without drivers or additional software. As a class-compliant USB 2.0 device, it integrates with any audio application immediately upon connection — making it the standard choice for BYOD conference room audio integration and portable Dante network access points. It delivers 2 channels in and 2 channels out at 24-bit/48 kHz, supports AES67 RTP transport, and operates on PoE or USB bus power.
Product Description
Dante AVIO USB-C gives integrators a reliable, permanent drop-point for guest laptops in conference rooms and meeting spaces — connect any USB-C equipped computer and it appears immediately in Dante Controller with no reconfiguration of the existing network. This is particularly useful in multi-use spaces where the primary Dante infrastructure is fixed but the source computer changes between meetings or presenters.
The adapter is powered via an 802.3af PoE switch (Class 1) or from the host computer's USB port, with USB Power Delivery support up to 7.5W. Device latency is configurable at 1, 2, or 5ms through Dante Controller. AES67 RTP transport enables interoperability with non-Dante IP audio systems in mixed-protocol environments. Dante Domain Manager (DDM) support provides IT-level security, role-based access control, and centralized management across enterprise deployments. The sonically-welded ABS enclosure handles repeated handling in both installed and portable applications — a USB-C to USB-C cable is included.
Key Features
- 2x2 Bidirectional USB-C Audio — Delivers 2 channels in and 2 out at 24-bit/48 kHz over a single USB-C connection to any Mac, Windows, or Linux computer.
- No Drivers Required — Class-compliant USB 2.0 operation; compatible with any audio application out of the box on all major operating systems.
- BYOD Conference Room Drop-Point — Fixed Dante endpoint allows visiting laptops to join the audio network without changes to Dante routing or network configuration.
- Automatic Dante Discovery — Device appears in Dante Controller immediately upon connection; no manual setup required.
- AES67 Interoperability — Supports AES67 RTP transport for use alongside non-Dante IP audio devices in mixed-protocol systems.
- Dante Domain Manager Ready — Fully compatible with DDM for IT-level security, auditing, and centralized management across multi-site deployments.
- Flexible Power — Operates on 802.3af PoE (Class 1) or USB bus power; supports USB Power Delivery at 5V/1.5A (7.5W).
- Road-Ready Construction — Sonically-welded ABS enclosure with stress-tested cable assemblies; includes USB-C to USB-C cable.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | ADP-USBC-AU-2X2 |
| Audio Channels | 2 in, 2 out |
| Sample Rate | 48 kHz |
| Bit Depth | 24-bit |
| Connectors | RJ45, USB Type-C |
| USB Standard | Class Compliant USB 2.0 |
| Power | 802.3af PoE Class 1 or USB |
| Power Consumption | <10W (with USB PD); <2W (no power delivery) |
| USB Power Delivery | 5V / 1.5A (7.5W) |
| Dante Device Latency | 1, 2, or 5ms (configurable) |
| Network Transport | Dante Audio over IP, AES67 RTP |
| DDM Compatible | Yes |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
