QSC Attero Tech unDX2IO+ – Dante/AES67 2+2 Input / 2 Output Network Audio Wall Plate

Product Overview

The Attero Tech unDX2IO+ by QSC is a Dante/AES67 network audio wall plate that brings mixed mic/line connectivity to the network at the point of use in conference rooms, hotel ballrooms, and training rooms. As a compact Dante networked audio wall plate, it provides two balanced XLR inputs, two balanced line inputs on depluggable connectors, and two balanced XLR outputs over a single PoE cable. It integrates with Q-SYS or any Dante/AES67 network, making it a flexible Q-SYS audio input wall plate for commercial AV deployment.

Product Description

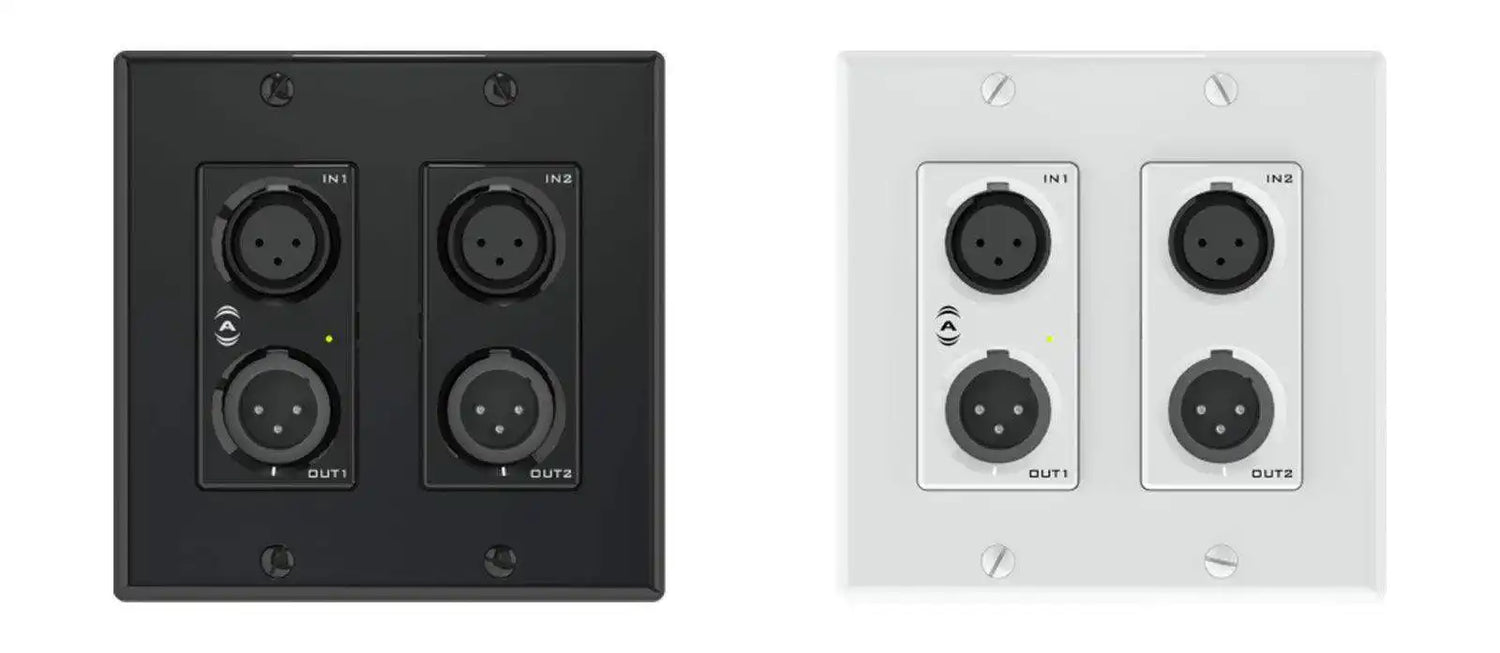

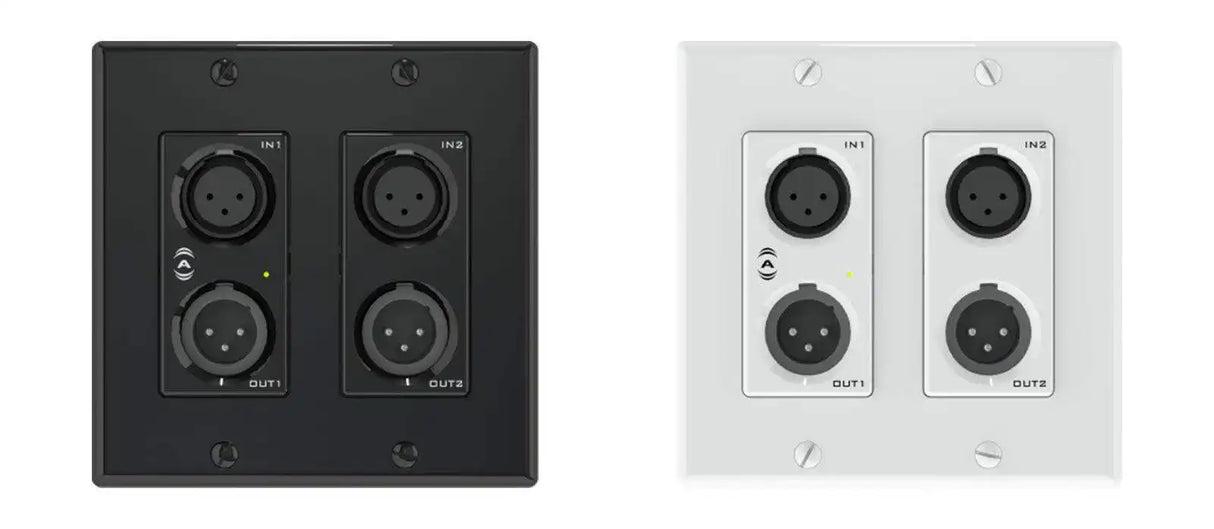

The unDX2IO+ is a cost-effective multi-I/O Dante audio network wall plate featuring two balanced mic/line XLR inputs, two balanced XLR line outputs, and two balanced line inputs on side-mounted depluggable connectors. All inputs and outputs can be used simultaneously and every audio channel is addressed separately on the network. The plate is designed to fit standard dual-gang US junction boxes, mud rings, and old-work brackets, and its PoE capability means a single CAT-5e or better cable carries power, control, and data. Four software-selectable input gains plus +48 V phantom power per channel let the same plate handle dynamic microphones, condenser microphones, and consumer or professional line sources. For AV system integration, the small form factor lets installers co-locate Dante connectivity near analog sources or sinks rather than running long analog cable back to the rack.

Key Features

• Mixed Mic/Line I/O — Two balanced XLR inputs, two balanced line inputs, and two balanced XLR outputs serve both professional and consumer source types from one wall plate.
• Dante and AES67 Networking — Audio transports over standard Ethernet on a single RJ-45 and integrates with Q-SYS or any Dante/AES67 network.
• PoE Powered — A single CAT-5e or better cable supplies power, control, and data via 802.3af PoE, with power consumption under 5 W.
• Four Software-Selectable Gains — Gain settings of -18 dB, -3 dB, +25 dB, and +40 dB accommodate dynamic mics, phantom-powered mics, and common line levels.
• +48 V Phantom Power Per Channel — Independent phantom power supports condenser microphones on each input channel.
• Adjustable Output Gain — Analog output gain is software adjustable from 0 dB to -60 dB plus mute to match any line input equipment.
• Dante Domain Manager Ready — Full Dante Domain Manager support simplifies enterprise network management and AV system integration.

Typical Applications

• Conference room and commercial meeting space input plates
• Hotel ballrooms and convention centers
• Training rooms and education spaces
• Fitness facilities and multi-purpose rooms

Technical Specifications

Frequently Asked Questions

Does the unDX2IO+ work with Q-SYS? Yes. It connects to a Q-SYS system as well as any standard Dante or AES67 network over Ethernet.

How is it powered? The plate is 802.3af PoE compliant, drawing under 5 W, so a single CAT-5e or better cable provides power, control, and data with no local power supply.

What junction box does it fit? The unDX2IO+ is designed to fit all dual-gang US junction boxes, mud rings, and old-work brackets.

Can it support both microphones and consumer line sources? Yes. Four software-selectable gains and per-channel +48 V phantom power handle dynamic and condenser microphones, while the additional balanced line inputs accept consumer and professional line sources.

What about warranty and support? The unDX2IO+ is covered under QSC warranty terms; contact Creation Networks support for help with specification and AV integration.
