Atomos ATOMSHB002 Shinobi 7 – 7" 4K HDR Field Monitor

Product Overview

The Atomos Shinobi 7 is a 7-inch 1000-nit HDR field monitor designed for focus pullers, camera assistants, directors, and video village use on film, television, and commercial productions. Accepting 4Kp60 via HDMI and 4Kp30 via SDI, the Shinobi 7 delivers a large-format, full-featured monitoring experience without an internal recorder, making it a cost-effective solution for setups where recording is handled separately or in-camera. Its comprehensive monitoring toolset covers HDR, false color, waveform, vectorscope, and 3D LUT support at a price point accessible for run-and-gun and multi-monitor setups.

Product Description

The Atomos Shinobi 7 delivers a professional monitoring display in a large 7-inch format sized for shared set use, focus pulling from a distance, and video village setups where the image needs to be visible to multiple crew members simultaneously. The 1000-nit IPS touchscreen supports a wide color gamut and accurate HDR rendering in both HDR10 and HLG, allowing the camera department to evaluate footage in the intended display format on set without returning to a color suite.

The Shinobi 7 accepts 4Kp60 from HDMI 2.0 and 4Kp30 from 3G-SDI, with the SDI input converting to HDMI output for signal routing and monitoring at remote positions. A clean HDMI output passes the full signal through to a downstream recorder, switcher, or additional monitor without interruption. The comprehensive monitoring toolset includes custom 3D LUT support (.cube format), Atomos and ARRI false color, waveform, vectorscope, RGB parade, zebra, focus peaking, pixel magnification, frame guides, SMPTE safe areas, and anamorphic de-squeeze for anamorphic lens use.

The Shinobi 7 is calibration-ready via the Atomos Calibrator app with compatible Calibrite probes, ensuring the panel matches reference HDR standards for accurate monitoring decisions across the production. Audio monitoring is available via HDMI-embedded audio with a 3.5mm headphone output. Dual NP-F/L-series batteries power the unit from the rear battery plates for field operation. The unit can also be powered from a DC input for studio or cart-mounted setups. For crews needing a compact companion monitor, the Atomos Shinobi 5" is also available at Creation Networks alongside the full range of Atomos accessories.

Key Features

• 7-Inch 1000-Nit HDR Touchscreen — IPS panel with HDR10 and HLG support for accurate high dynamic range monitoring on set.
• 4Kp60 HDMI and 4Kp30 SDI Input — Accepts up to 4Kp60 via HDMI 2.0 and 4Kp30 via 3G-SDI for compatibility with a wide range of cameras and signal chains.
• SDI-to-HDMI Signal Conversion — Converts SDI input to HDMI output for flexible signal routing to downstream recorders and monitors.
• Custom 3D LUT Support — Loads .cube LUT files for on-set creative look monitoring and show LUT verification.
• Professional Monitoring Toolset — Atomos and ARRI false color, waveform, vectorscope, RGB parade, zebra, focus peaking, pixel magnification, frame guides, SMPTE safe areas, anamorphic de-squeeze.
• Calibration Ready — Compatible with Atomos Calibrator and Calibrite Display Pro HL for traceable HDR and Rec.709 accuracy verification.
• Clean HDMI Loop Output — Full signal pass-through to downstream equipment without monitor overlay interruption.

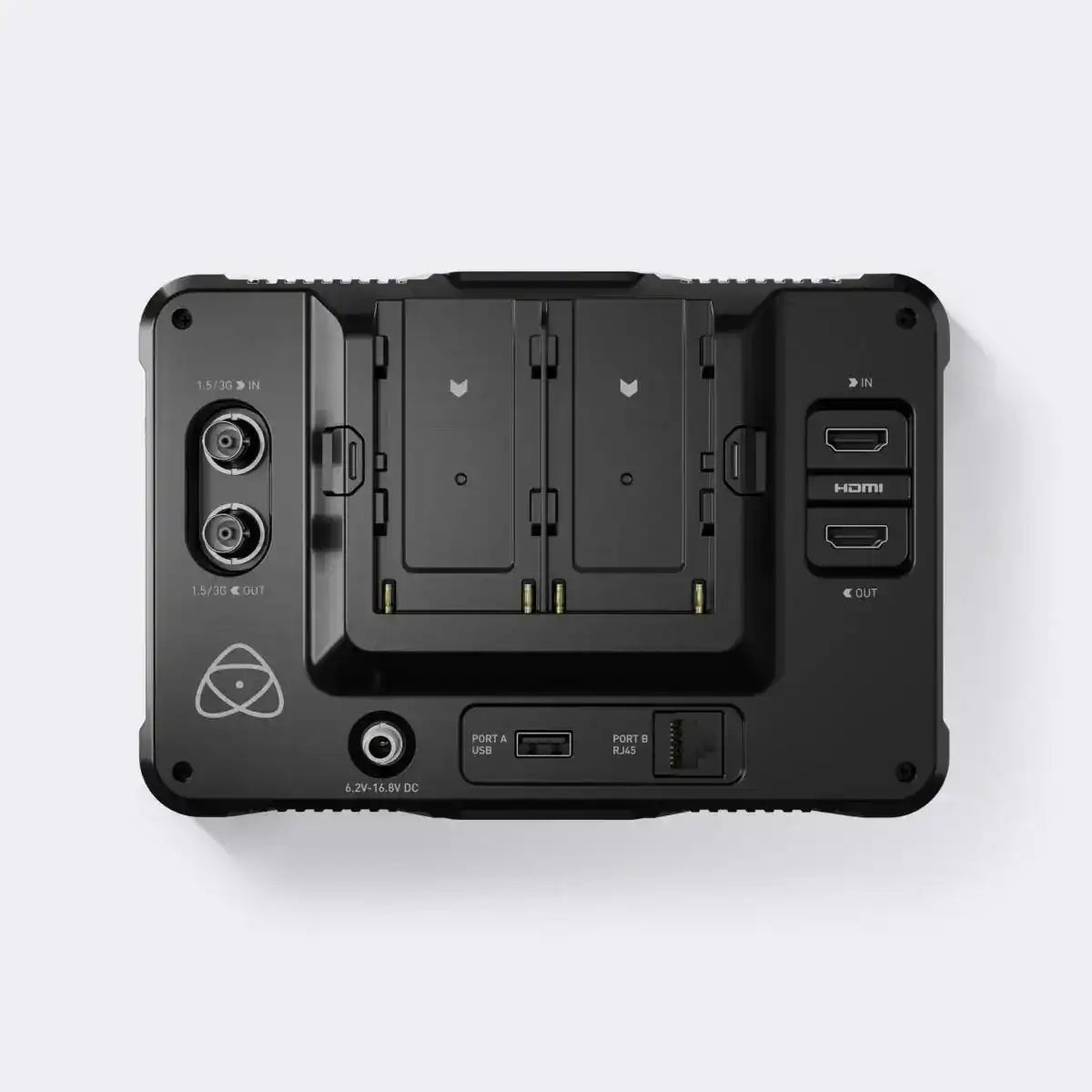

• Dual NP-F Battery Power — Dual L-series battery plates for hot-swap continuous field power, plus DC input for AC/cart use.
• 3.5mm Headphone Output — Monitors HDMI-embedded audio for on-set audio confirmation without a separate audio monitor.

Typical Applications

• Video village director and producer monitoring
• Focus pulling and camera assist on film and television sets
• Broadcast and ENG production field monitoring
• Multi-monitor setups requiring a large-format secondary display
• Corporate AV and event video production monitoring
• Training and educational production setups

Technical Specifications

Frequently Asked Questions

Does the Shinobi 7 record video?
No. The Shinobi 7 is a monitor-only unit. It does not include internal recording capability. For on-camera recording paired with a large-format monitor, see the Atomos Shogun series at Creation Networks.

What is the maximum input resolution of the Shinobi 7?
4Kp60 via HDMI 2.0, and 4Kp30 via 3G-SDI.

Does the Shinobi 7 support HDR monitoring?
Yes. The Shinobi 7 supports HDR10 and HLG display modes along with custom 3D LUT loading for accurate on-set HDR evaluation.

Can I use custom LUTs on the Shinobi 7?
Yes. The Shinobi 7 loads custom 3D LUTs in .cube format for show LUT verification and on-set creative look monitoring.

What batteries does the Shinobi 7 use?
Dual NP-F/L-series battery plates on the rear provide continuous hot-swap field power. A DC input supports AC or cart operation.

Is the Shinobi 7 calibration ready?
Yes. It is compatible with the Atomos Calibrator app and Calibrite Display Pro HL for verified HDR and Rec.709 accuracy.

Does the Shinobi 7 pass signal through for a downstream recorder?
Yes. A clean HDMI output passes the full signal to a downstream recorder, switcher, or additional monitor without overlaying monitor tools on the output.
