Atomos ATOMNJTX01 Ninja TX – 5" 8K ProRes RAW Monitor-Recorder

Product Overview

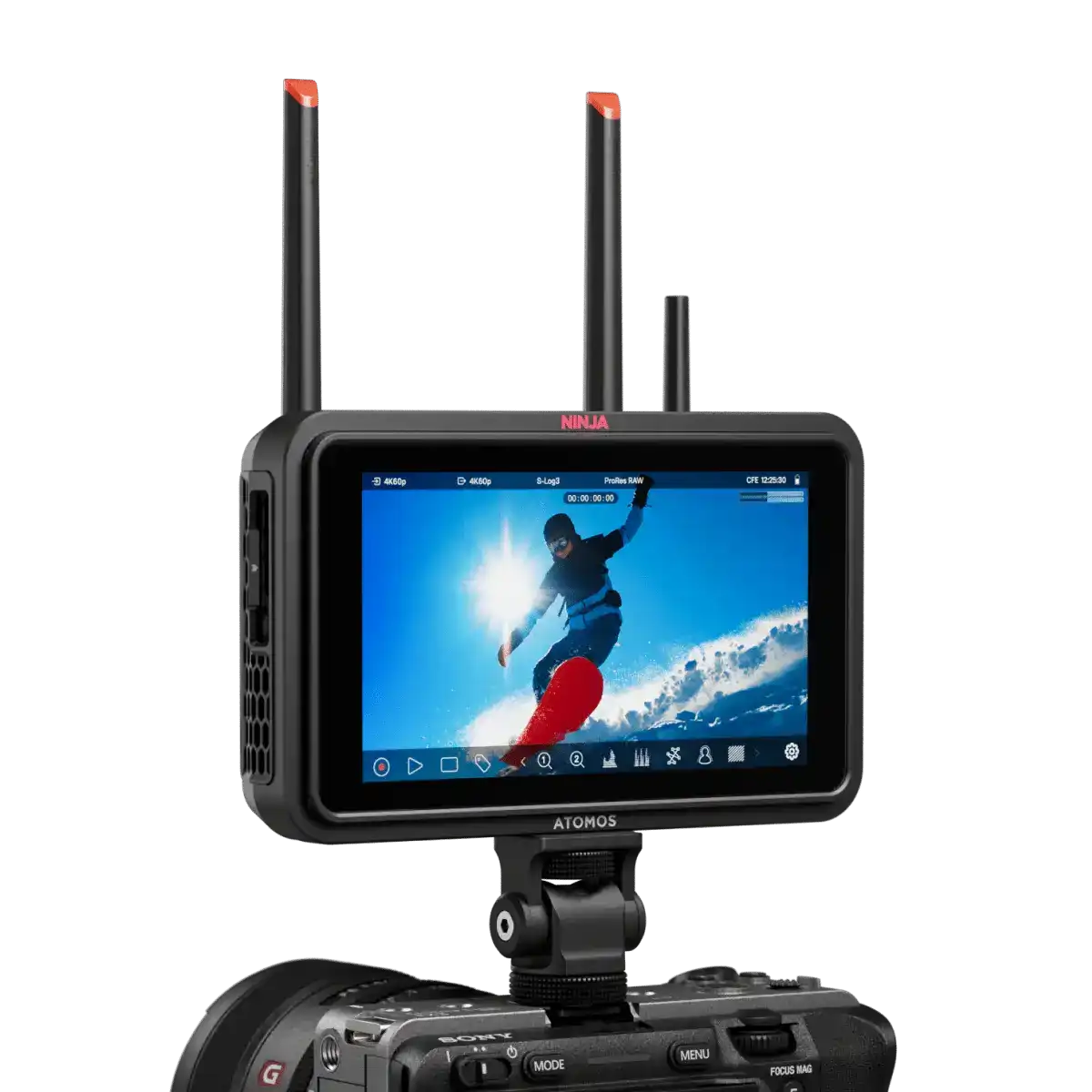

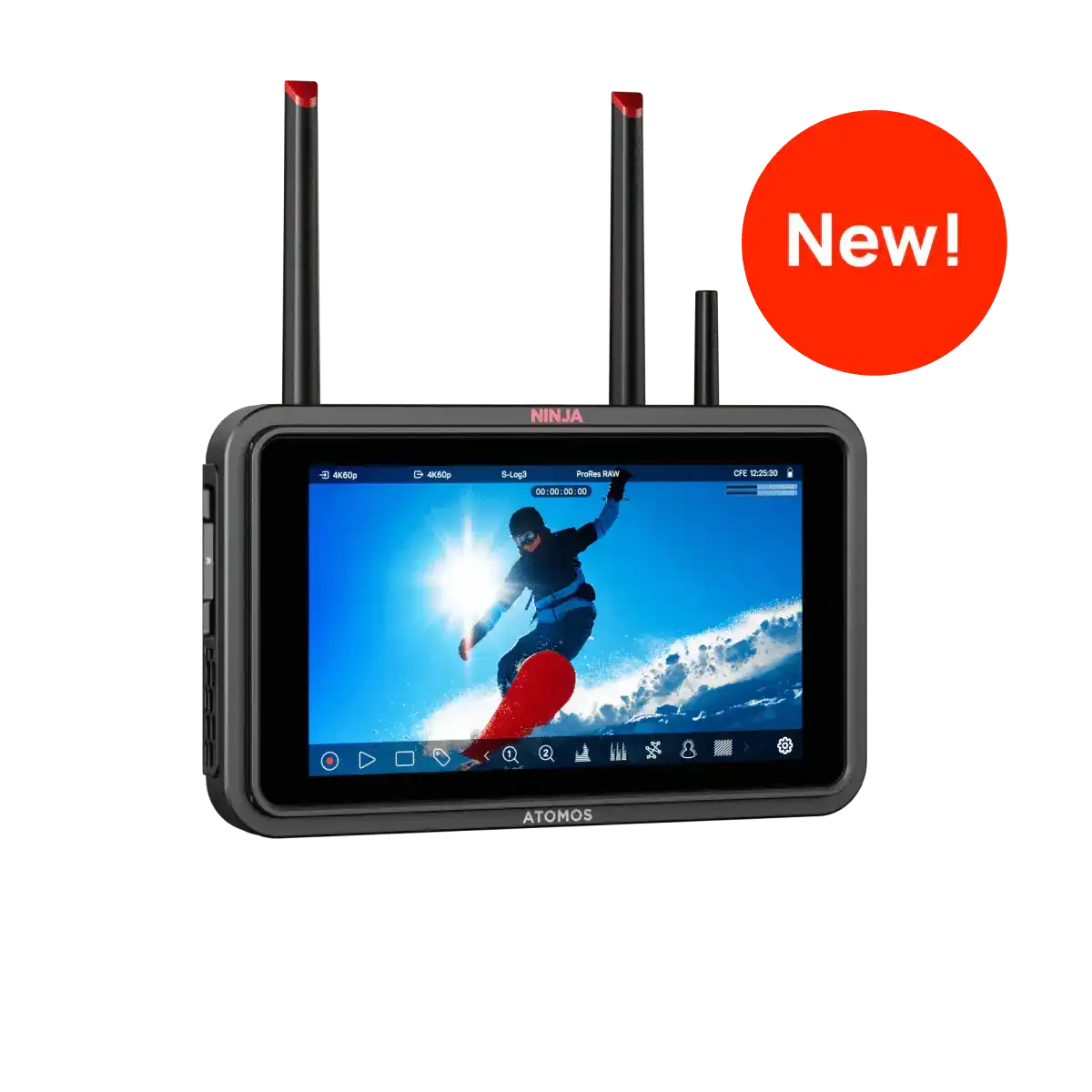

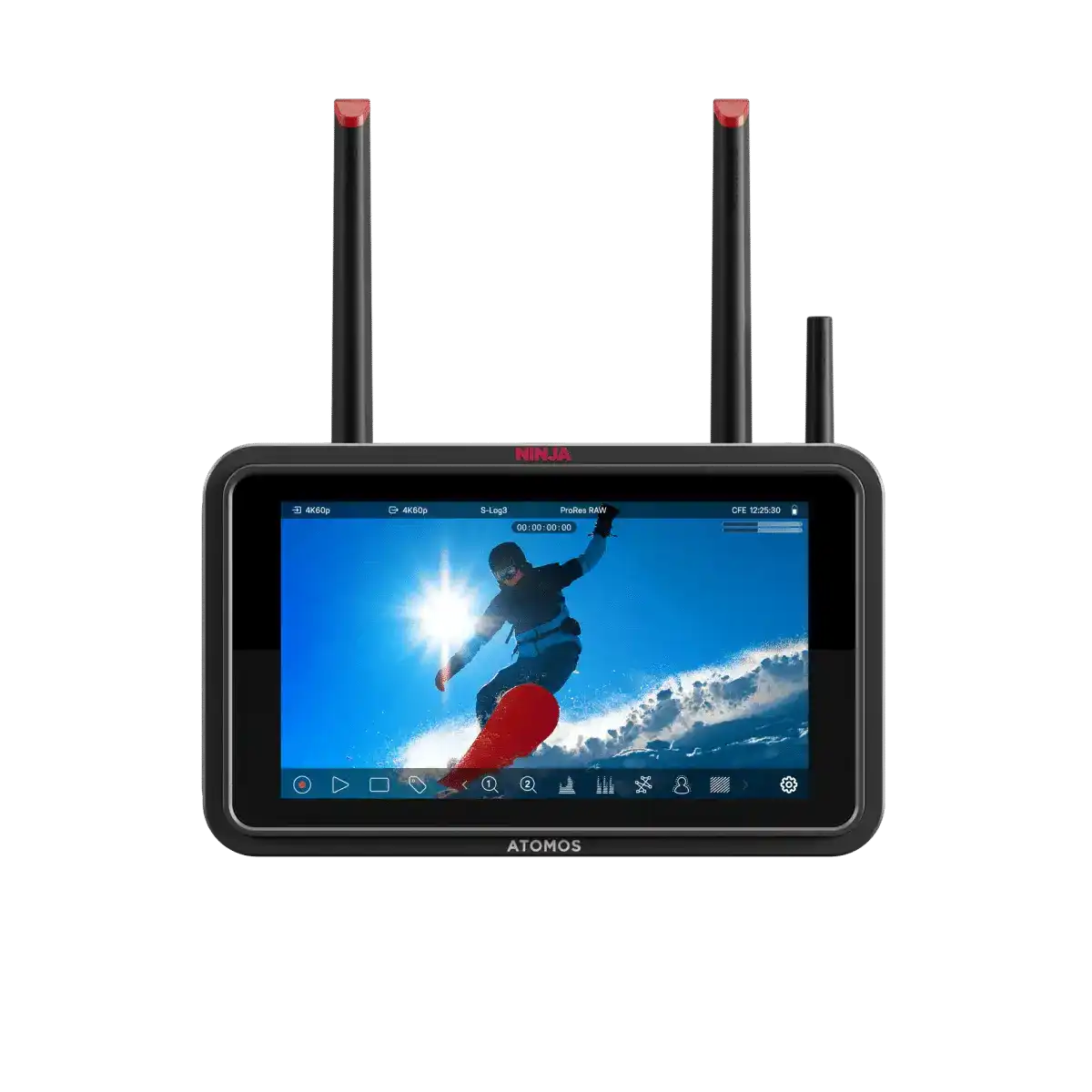

The Atomos Ninja TX is a 5-inch on-camera HDR monitor-recorder that captures Apple ProRes RAW HQ at 8Kp30 and 4Kp120 from HDMI 2.1 sources directly to CFexpress Type B media, while simultaneously streaming finished content to the cloud via Wi-Fi 6E and ATOMOSphere. Designed for solo camera operators, DPs, and journalists who require a compact, high-resolution external recording solution, the Ninja TX delivers 1000-nit HDR monitoring and camera-to-cloud connectivity in a lightweight form factor that mounts directly to any camera hot shoe or cage.

Product Description

The Atomos Ninja TX advances the Ninja line by supporting 8K resolution recording and wireless cloud delivery from a 5-inch touchscreen unit. Built around a 1000-nit HDR panel with full-array local dimming and HDR10/HLG monitoring support, the Ninja TX provides reference-quality on-camera monitoring for the entire dynamic range of modern mirrorless and cinema cameras that output RAW over HDMI 2.1. Apple ProRes RAW HQ at 8Kp30 and 4Kp120 is recorded directly to CFexpress Type B, enabling high-quality acquisition with the flexibility that RAW workflows demand in post-production.

Wi-Fi 6E connectivity with ATOMOSphere integration enables simultaneous record-and-upload workflows, sending content to cloud platforms including Frame.io and Dropbox while the camera is still rolling. For broadcast and live event work, the Ninja TX encodes a simultaneous live stream alongside local recording, removing the need for a separate streaming device. NDI HX3 support distributes the monitor output over a local IP network for remote viewing or integration with NDI-compatible production systems without additional hardware.

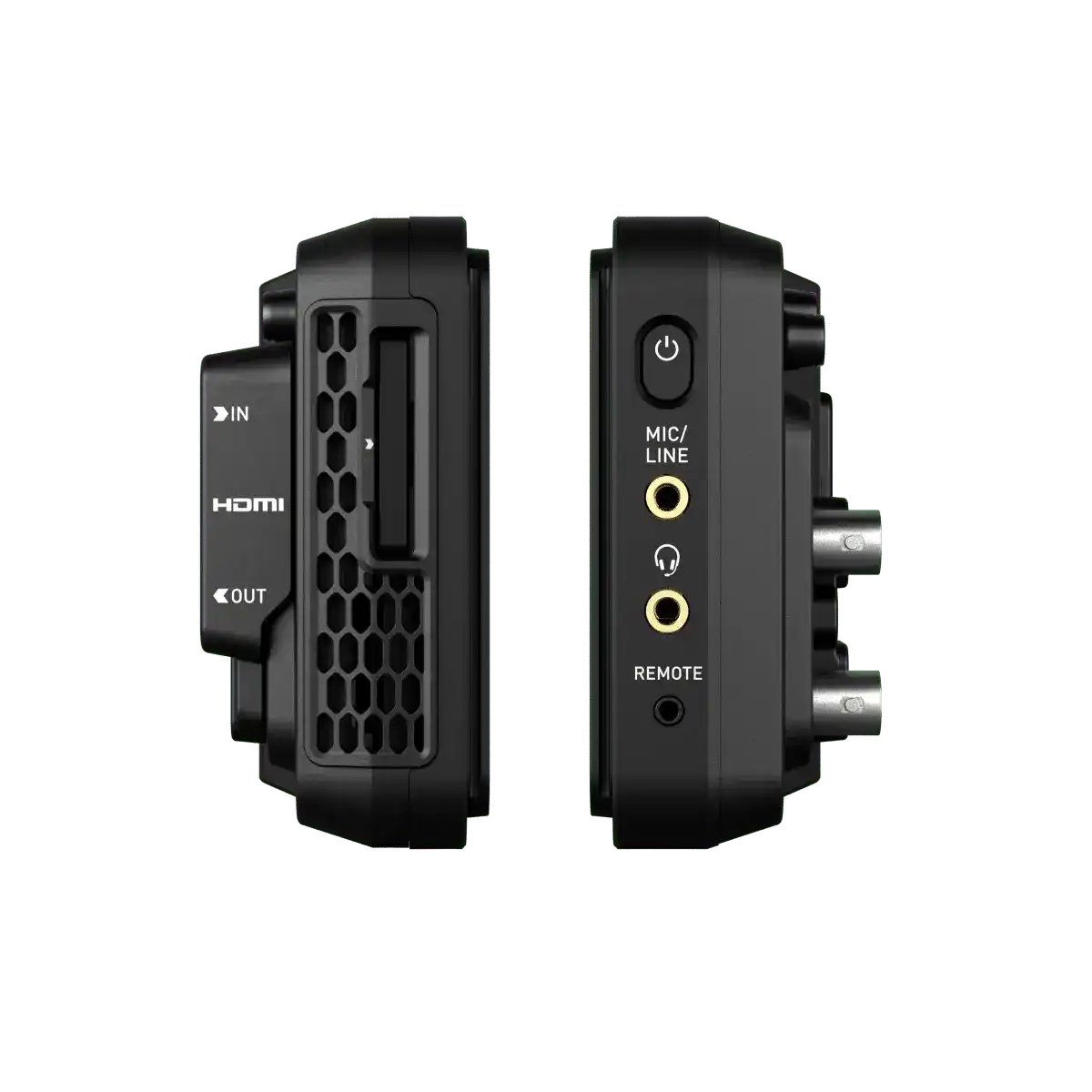

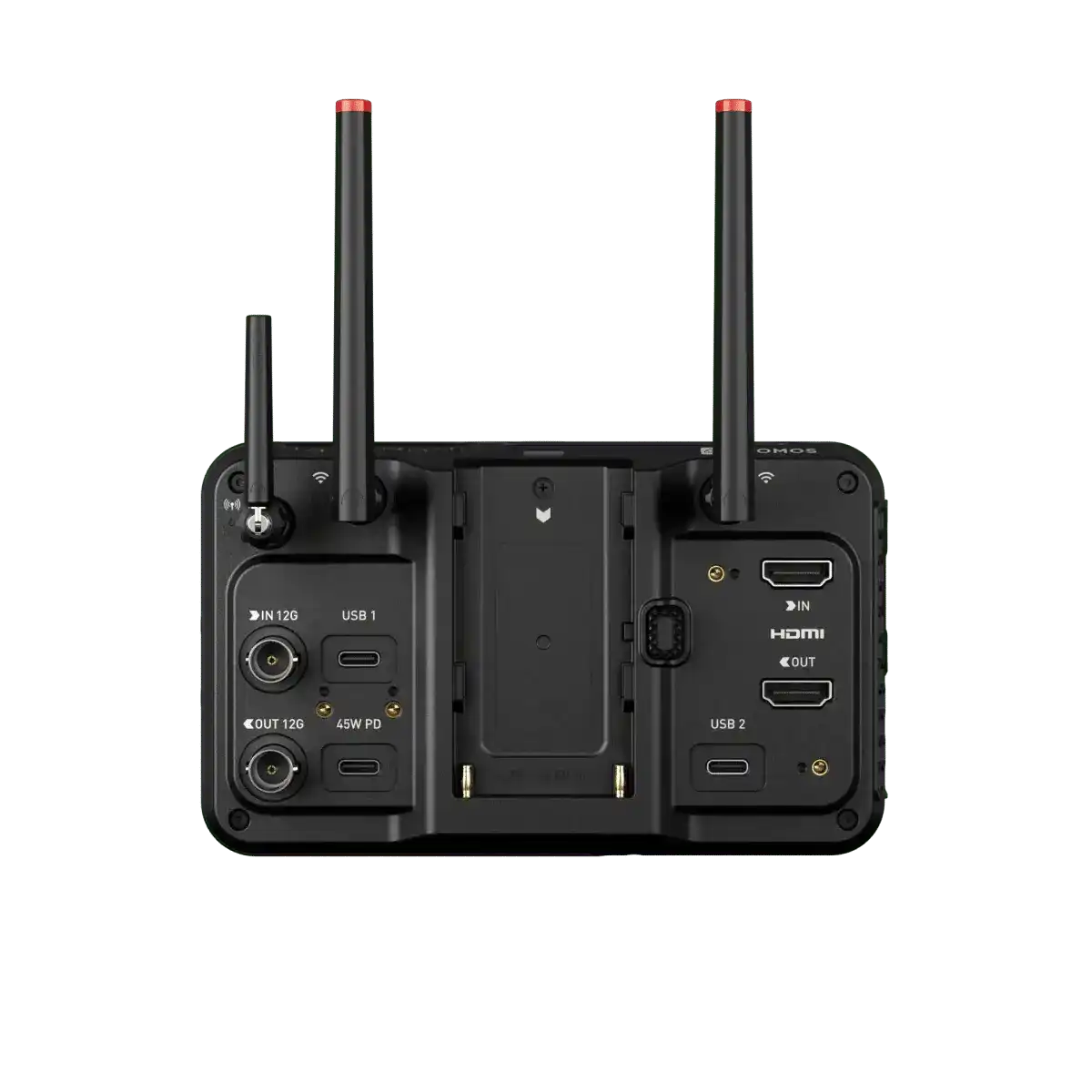

AirGlu wireless timecode via RF and Bluetooth synchronizes the Ninja TX with other cameras and recorders on set without BNC timecode cables. The touchscreen monitoring toolset includes custom 3D LUT support, ARRI and Atomos false color, focus peaking, waveform, vectorscope, RGB parade, zebra, frame guides, pixel magnification, and anamorphic de-squeeze. Audio is handled via HDMI-embedded audio channels with a 3.5mm headphone output. Power draws from an NP-F/L-series battery via a single battery plate, with a DC input for tethered AC operation. The Ninja TX pairs with the Atomos CONNECT for Ninja V/V+ at Creation Networks for SDI input and expanded connectivity.

Key Features

• 8Kp30 and 4Kp120 ProRes RAW HQ — Records Apple ProRes RAW HQ from HDMI 2.1 to CFexpress Type B for maximum resolution and RAW post-production flexibility.
• Wi-Fi 6E Camera-to-Cloud — Simultaneous record and upload to ATOMOSphere, Frame.io, and Dropbox via Wi-Fi 6E without additional hardware.
• NDI HX3 Video-Over-IP — Distributes monitor output over a local IP network for remote viewing and integration with NDI-capable production systems.
• AirGlu Wireless Timecode — RF and Bluetooth dual-mode wireless timecode for cable-free multi-camera synchronization on set.
• Live Streaming with Simultaneous Recording — Built-in encoder streams live while recording locally to CFexpress media.
• 1000-Nit 5" HDR Touchscreen — Full-array local dimming panel with HDR10, HLG, and custom 3D LUT monitoring for on-set exposure and color decisions.
• Professional Monitoring Toolset — Custom 3D LUTs, ARRI and Atomos false color, focus peaking, waveform, vectorscope, zebra, frame guides, pixel magnification, anamorphic de-squeeze.
• CFexpress Type B Media — High-throughput recording media required for 8K and high-frame-rate 4K acquisition.
• Compact On-Camera Form Factor — Lightweight design mounts to camera cages and hot shoes; compatible with standard NP-F/L batteries for field power.

Typical Applications

• 8K and high-frame-rate on-camera RAW recording for cinema and commercial production
• Camera-to-cloud journalism and documentary workflows
• Solo operator run-and-gun production with cloud delivery
• Live event streaming with simultaneous local backup recording
• NDI-based remote monitoring and distributed production
• Multi-camera AirGlu wireless timecode sync

Technical Specifications

Frequently Asked Questions

What is the maximum recording resolution of the Ninja TX?
8Kp30 and 4Kp120 in Apple ProRes RAW HQ via HDMI 2.1 input to CFexpress Type B media.

Does the Ninja TX support camera-to-cloud workflows?
Yes. Built-in Wi-Fi 6E connects to ATOMOSphere for direct Frame.io and Dropbox upload while the camera is recording.

What is NDI HX3 used for on the Ninja TX?
NDI HX3 distributes the monitor output over a local IP network so remote operators, directors, or clients can view the feed on any NDI-compatible device without additional cables or hardware.

How does AirGlu wireless timecode work on the Ninja TX?
AirGlu uses dual RF and Bluetooth to sync timecode wirelessly with other cameras and recorders on set, eliminating BNC timecode cable runs.

Can the Ninja TX stream live and record simultaneously?
Yes. The built-in encoder streams a live feed while the unit records locally to CFexpress media.

What cameras are compatible with the Ninja TX for RAW recording?
Any camera that outputs RAW video data over HDMI 2.1 is compatible for RAW recording. Compatibility for specific camera models is confirmed via Atomos firmware updates. Contact Creation Networks for current compatibility guidance.

Does the Ninja TX have SDI input?
No. The Ninja TX accepts HDMI 2.1 input only. The Atomos CONNECT for Ninja V/V+ adds SDI and additional connectivity for users who need it.
