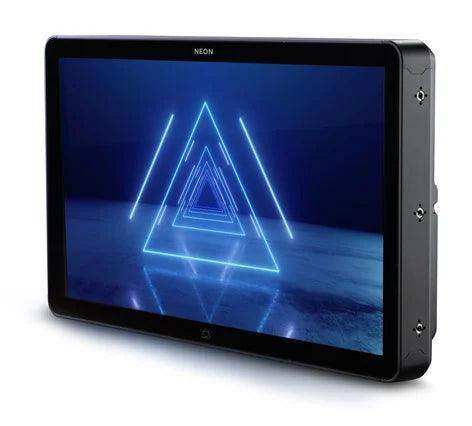

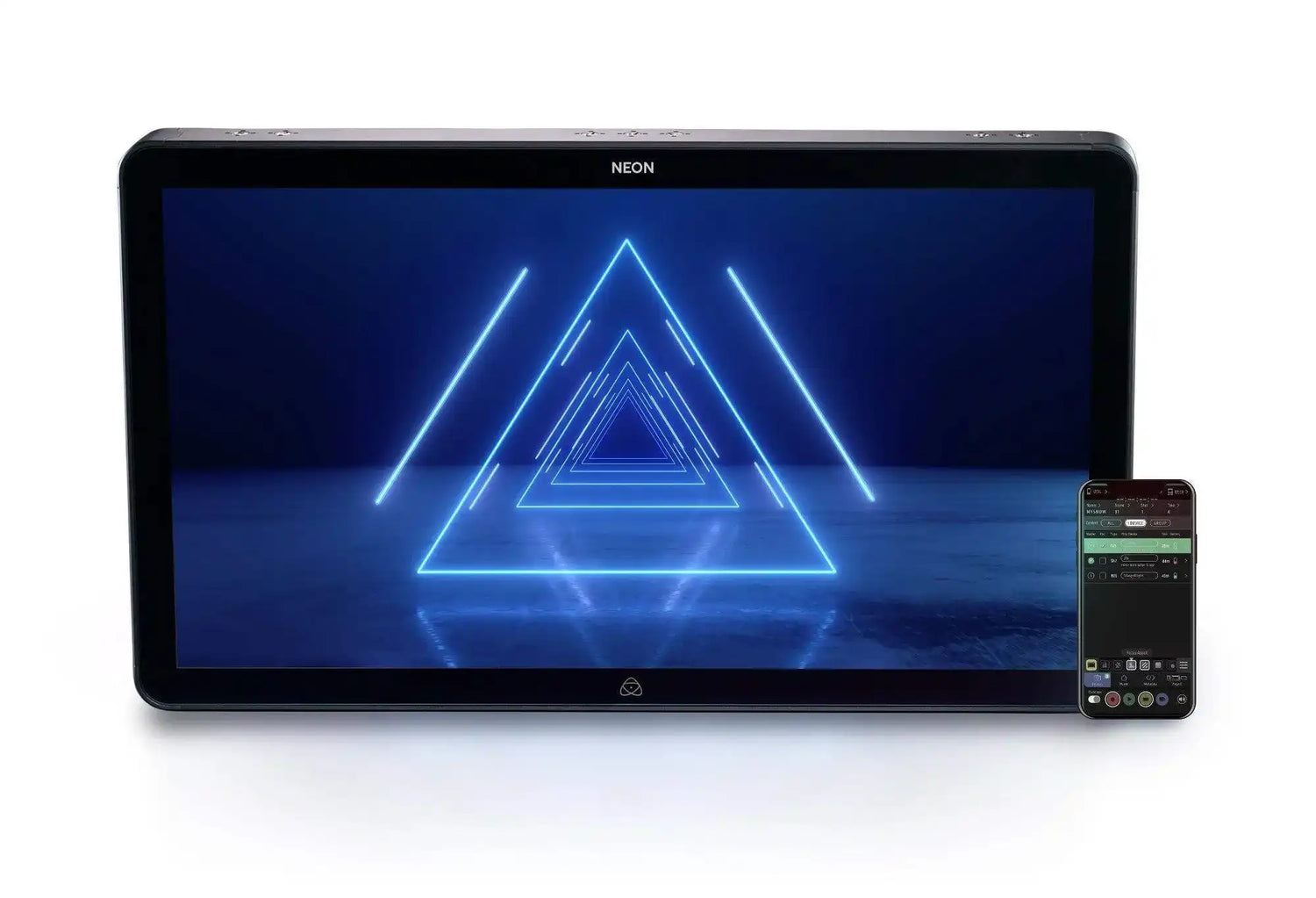

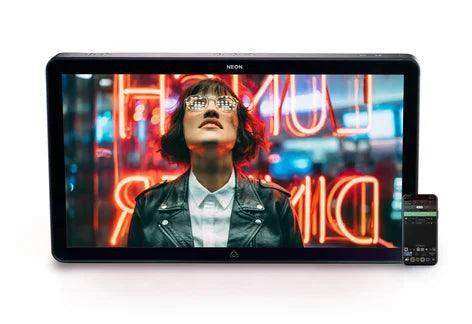

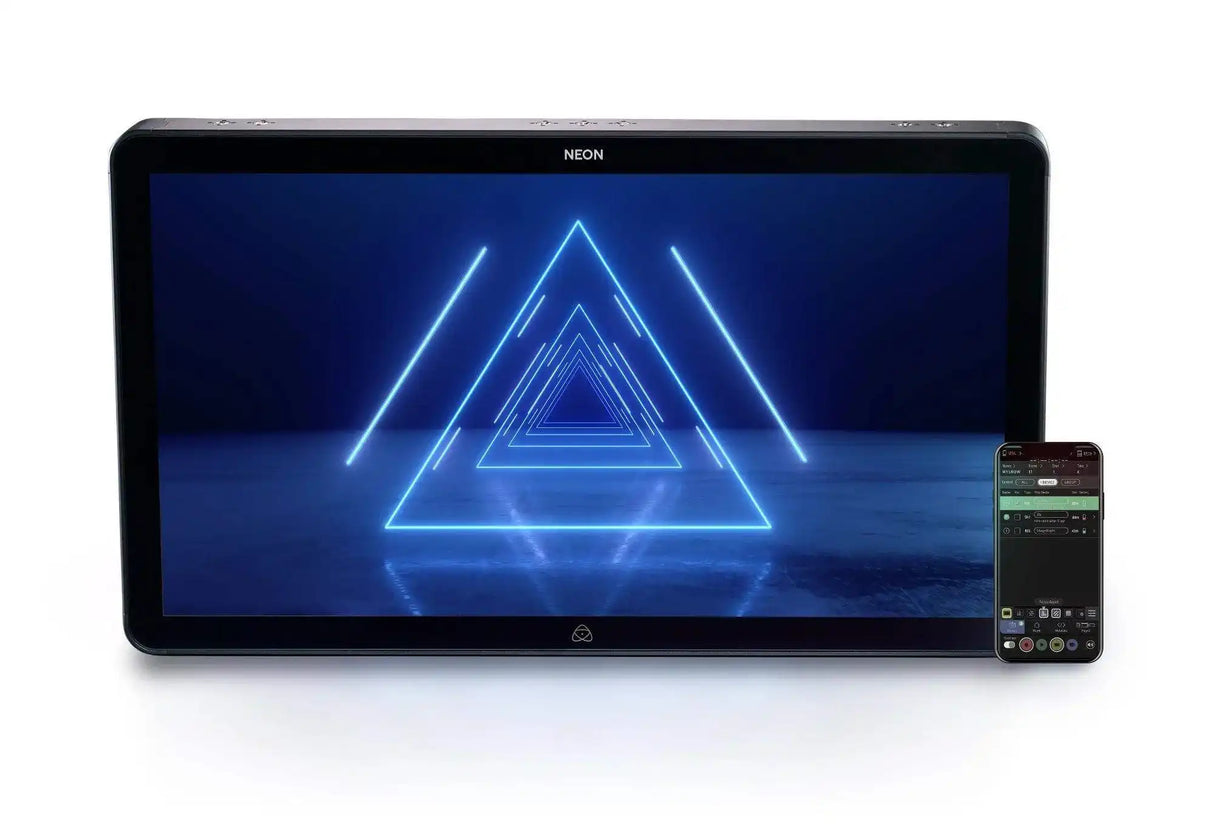

Atomos ATOMNEO241-US NEON 24" – 4K HDR On-Set Monitor-Recorder

Product Overview

The Atomos NEON 24 is a 24-inch 4K HDR monitor-recorder built for directors, DIT supervisors, and senior production staff who require a large-format reference display for on-set and video village monitoring. Supporting Apple ProRes RAW and Avid DNx recording from SDI and HDMI sources, the NEON 24 operates as both a high-accuracy reference monitor and a professional field recorder. Its DCI-P3 color gamut and HDR monitoring support for HLG and PQ formats deliver the image fidelity needed for confident exposure and color decisions before material leaves the set.

Product Description

The Atomos NEON 24 brings a 24-inch, 4K HDR display to productions that demand large-format reference accuracy at the video village or DIT cart. Designed to accept signals from cinema, broadcast, and mirrorless cameras via HDMI and SDI, the NEON 24 renders footage in real time with DCI-P3 color accuracy and full HDR exposure tools active. Recording to removable SSD via the Atomos Master Caddy system produces Apple ProRes RAW, ProRes, and Avid DNx files directly from the monitor output—making it straightforward to hand off edit-ready media without an additional recorder in the signal chain.

The full Atomos professional monitoring toolset is accessible from the capacitive touchscreen without interrupting the image feed: waveform, vectorscope, RGB parade, false color, focus peaking, zebra, anamorphic de-squeeze, and custom 3D LUT support via .cube file upload. For productions working across multiple camera platforms, the NEON 24 supports Sony S-Log, Canon C-Log, ARRI Log C, Panasonic V-Log, RED Log, Fujifilm F-Log, and Nikon N-Log, enabling accurate monitoring regardless of camera brand. Dual V-Lock or Anton Bauer gold-mount battery plates supply continuous power during long shooting days, while a 4-pin XLR DC input supports AC power in studio and video village setups. For teams building out larger Atomos monitoring setups, the NEON 24 integrates alongside other Atomos monitors and recorders available at Creation Networks.

Key Features

• 24-Inch 4K HDR Reference Display — Large-format panel with DCI-P3 color gamut and HDR monitoring support for HLG and PQ signal formats, purpose-built for video village and director's monitoring.
• 4K ProRes RAW Recording — Captures Apple ProRes RAW, ProRes HQ/422/LT from HDMI and SDI sources to removable SSD, producing edit-ready files for immediate post turnaround.
• Avid DNx Codec Support — Records in DNxHD and DNxHR formats for productions and post facilities standardized on Avid workflows.
• SDI and HDMI Inputs — Accepts signals from cinema cameras via SDI and mirrorless/DSLR cameras via HDMI, covering the full range of professional camera platforms.
• Professional Monitoring Toolset — Waveform, vectorscope, RGB parade, false color, focus peaking, zebra, frame guides, custom 3D LUT support (.cube), and anamorphic de-squeeze.
• Broad Log Format Support — Sony S-Log/S-Log2/S-Log3, Canon C-Log/C-Log2/C-Log3, ARRI Log C, Panasonic V-Log, RED Log, Fujifilm F-Log, Nikon N-Log, PQ, HLG.
• Dual Battery Power — V-Lock and Anton Bauer gold-mount battery plate support for continuous power, plus 4-pin XLR DC input for studio use.
• Capacitive Touchscreen Interface — Responsive touchscreen for fast navigation of monitoring tools during active recording.
• Calibration Support — Compatible with Atomos Calibrator and Calibrite Display Pro HL for verified, traceable display accuracy.
• Multiple Mounting Points — Standard 1/4"-20 and 3/8" mounting points for monitor arms, production carts, and stand systems.

Typical Applications

• Video village primary reference monitor on commercial and cinema sets
• Director's large-format review display
• DIT cart primary display and 4K recording station
• Broadcast studio reference monitor
• Multi-camera production monitoring hub
• On-set color reference for VFX productions

Technical Specifications

Frequently Asked Questions

What cameras work with the Atomos NEON 24?
The NEON 24 accepts any camera with HDMI or SDI output, including cinema cameras from ARRI, RED, Sony Venice, Canon Cinema, mirrorless bodies, and broadcast cameras. Log format support covers S-Log, C-Log, ARRI Log C, V-Log, RED Log, F-Log, and N-Log.

What recording media does the NEON 24 use?
The NEON 24 records to removable SSD drives using the Atomos Master Caddy system. Removable SSDs provide cost-effective high-capacity storage with fast offload speeds.

Can it be used as a reference monitor without recording?
Yes. The NEON 24 operates as a standalone HDR reference monitor with the full monitoring toolset active regardless of whether recording is engaged.

Does it support custom 3D LUTs?
Yes. Custom .cube format LUTs can be loaded for real-time preview, allowing on-set teams to view a graded look while recording in log format.

What power options does the NEON 24 support?
Dual V-Lock or Anton Bauer gold-mount battery plates for field use, plus a 4-pin XLR DC input for continuous AC-powered studio or video village operation.

Is the NEON 24 calibration-ready?
Yes. The NEON 24 is compatible with the Atomos Calibrator app and Calibrite Display Pro HL or Display Plus HL probes for verified HDR and Rec.709 display accuracy.

What is the warranty?
1-year standard warranty, extending to 2 years upon registration at my.atomos.com.
