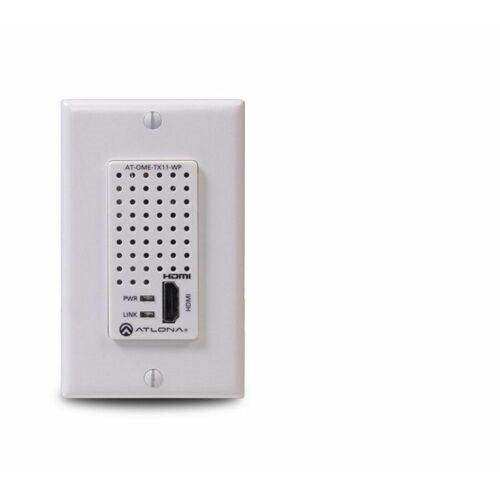

Atlona Wallplate Transmitter for HDMI - AT-OME-TX11-WP

Product Overview

The Atlona AT-OME-TX11-WP is a wallplate HDBaseT transmitter for HDMI sources designed for clean, low-profile AV signal extension in commercial meeting spaces and classrooms. Part of the Omega Series, it transmits 4K/UHD video up to 330 feet (100 meters) over a single category cable using HDBaseT technology. As a wall-mounted HDMI over HDBaseT transmitter, it is ideal for conference room HDBaseT installations, collaborative learning environments, and open presentation areas requiring discreet yet accessible HDMI connectivity.

Product Description

The Atlona AT-OME-TX11-WP is a wallplate HDBaseT transmitter that accepts HDMI video input and transmits signals up to 330 feet (100 meters) over CAT6/6a/7 cable, or up to 230 feet (70 meters) over CAT5e. It supports video up to 4K/UHD at 60 Hz with 4:2:0 chroma subsampling and 4K/30 with 4:4:4, at HDMI data rates up to 10 Gbps. The unit is fully HDCP 2.2 compliant, ensuring compatibility with protected content from laptops, media players, and Ultra HD Blu-ray players. Housed in a US one-gang wallplate enclosure, the AT-OME-TX11-WP installs directly into standard wallplate openings and includes both black and white wallplates and faceplates — no separate SKU needed for color. The unit is remotely powered via IEEE 802.3af PoE supplied by the connected Omega Series receiver or compatible switcher, eliminating the need for local AC power at the wall location. Multi-channel audio pass-through supports PCM, Dolby Atmos, DTS:X, DTS-HD Master Audio, and Dolby TrueHD. Front panel LED indicators show power and HDBaseT link status for quick verification during installation. Firmware is field-updatable via the USB-C port. Compatible with Omega Series receivers including the AT-OME-RX11, AT-OME-RX21, and AT-OME-RX31, as well as multiple presentation switchers with HDBaseT inputs.

Key Features

• US One-Gang Wallplate Form Factor — Installs in standard single-gang openings in walls, furniture, or floor boxes; includes both black and white trim kits.
• 4K/UHD @ 60 Hz Transmission — Supports 4K/60 4:2:0 and 4K/30 4:4:4 for compatibility with modern laptops and media players.
• HDBaseT Extension Up to 330 Feet — Transmits HDMI video and power over CAT6/6a/7 cable at up to 100 meters.
• Remote PoE Powering — IEEE 802.3af PoE supplied by the receiver eliminates the need for local AC power at the wall location.
• HDCP 2.2 Compliant — Passes protected content between authenticated source and display devices.
• Multi-Channel Audio Pass-Through — Supports PCM, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
• Locking HDMI Connector — Type A 19-pin locking HDMI input prevents accidental cable disconnection.
• Field-Updatable Firmware — USB-C port enables in-field firmware updates without returning the unit for service.
• Power and Link Status LEDs — Front panel indicators provide instant visual confirmation of power and HDBaseT link status.
• TAA and NDAA-889 Compliant — Meets Trade Agreements Act and National Defense Authorization Act Section 889 requirements.

Typical Applications

• Conference rooms and huddle spaces requiring a discreet wall-mounted HDMI input for laptop connections
• Classrooms and auditoriums providing an auxiliary HDMI input for student and presenter devices
• Collaboration and gathering spaces where accessible AV connectivity is needed without visible cable runs
• Corporate training rooms with presentation switchers requiring HDBaseT-connected wall inputs
• Open-plan offices and co-working spaces with floor box or furniture-mounted AV connections

Technical Specifications

Frequently Asked Questions

Q: Does the AT-OME-TX11-WP require its own power supply?

No. The AT-OME-TX11-WP is remotely powered over HDBaseT by the connected Omega Series receiver or compatible switcher using IEEE 802.3af Power over Ethernet. No local AC outlet is needed at the wall location.

Q: What cable type is required for maximum 330-foot distance?

For 330-foot (100-meter) extension at 1080p, either CAT5e or CAT6/6a/7 cable can be used. For 4K/UHD signals, the maximum distance over CAT5e or CAT6/6a/7 is 230 feet (70 meters).

Q: Does the unit come with both black and white wallplate covers?

Yes. Both black and white wallplates and faceplates are included in the box. There is no need to order separate SKUs for different color trim preferences.

Q: Is the AT-OME-TX11-WP compatible with Omega Series switchers?

Yes. It is compatible with Omega Series receivers (AT-OME-RX11, AT-OME-RX21, AT-OME-RX31) and presentation switchers including the AT-OME-PS62, as well as other Atlona switchers with HDBaseT inputs such as the AT-UHD-SW-5000ED.

Q: Can the AT-OME-TX11-WP be installed in a floor box or furniture cutout?

Yes. The US one-gang form factor allows installation in standard wallplate openings in walls, furniture, and floor boxes, providing flexible placement wherever a presenter needs HDMI connectivity.

Q: What is the maximum 4K resolution supported?

The HDMI input accepts up to 4K/UHD at 60 Hz with 4:4:4 8-bit. The HDBaseT output transmits 4K/UHD at 60 Hz with 4:2:0 chroma subsampling. An input of 4K/60 4:4:4 is automatically downconverted to 4K/60 4:2:0 on the HDBaseT output.

Q: Where can I purchase the AT-OME-TX11-WP?

The AT-OME-TX11-WP is available at creationnetworks.net, a professional commercial AV reseller.
