Atlona Velocity System 10" VESA Mount Touch Panel w/Single Room Velocity Gatewa - Black - AT-VTPG-1000VL-BL

Product Overview

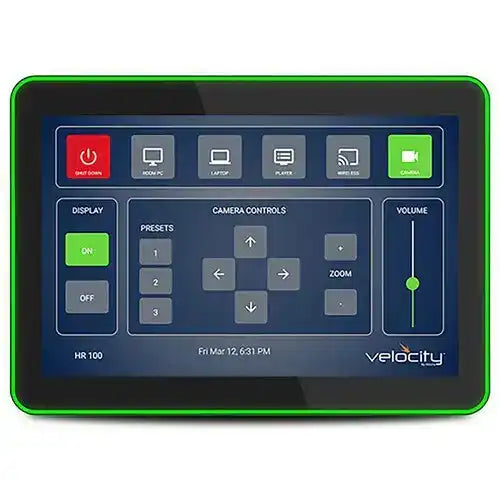

The Atlona AT-VTPG-1000VL-BL is a Velocity System all-in-one 10-inch touch panel with integrated single-room Velocity gateway, designed for commercial AV control in conference rooms, classrooms, hospitality venues, and divisible spaces. This VESA-mount AV control touch panel combines a capacitive 10.1-inch LCD display at 1280x800 resolution with the Velocity System gateway software in a single wall-mountable device, eliminating the need for a separate AV control processor in single-room deployments. Powered entirely via PoE+ (IEEE 802.3at) over a single Ethernet cable, the AT-VTPG-1000VL-BL is an ideal Velocity AV control panel for integrators seeking a compact, easy-to-deploy room control solution with built-in scheduling support for up to two rooms.

Product Description

The Atlona AT-VTPG-1000VL-BL delivers a complete AV control system in a single, elegantly designed device. The integrated Velocity System gateway provides IP-based AV device control for one room and room scheduling for up to two rooms, using Ethernet connections to reduce components and simplify cabling compared to traditional separate-component control systems. The 10.1-inch capacitive glass touch panel displays at 1280x800 native resolution with 800:1 contrast ratio, 500 cd/m² brightness, and 160-degree horizontal and vertical viewing angles for clear visibility in a variety of lighting conditions. A surround LED lighting ring around the entire panel edge can be configured to indicate room scheduling status or AV control functions, and is visible from the side in both landscape and portrait orientations. Setup is guided by an intuitive browser-based configuration tool that walks integrators through adding AV equipment, building user interfaces, and defining control macros. Glass and single-gang wall mount hardware are included for immediate deployment without additional mounting accessories. The VESA 75 mount standard also supports the optional AT-VTP-VTM tabletop mounting kit for conference table installations. The AT-VTPG-1000VL-BL receives power and data over a single PoE+ (802.3at) Ethernet connection, supporting DHCP or static IP addressing and 10/100/1000 Mbps speeds. The device supports a full range of network protocols including HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, and IEEE 802.1x for enterprise network authentication. The black finish provides a refined, contemporary appearance suitable for any commercial environment.

Key Features

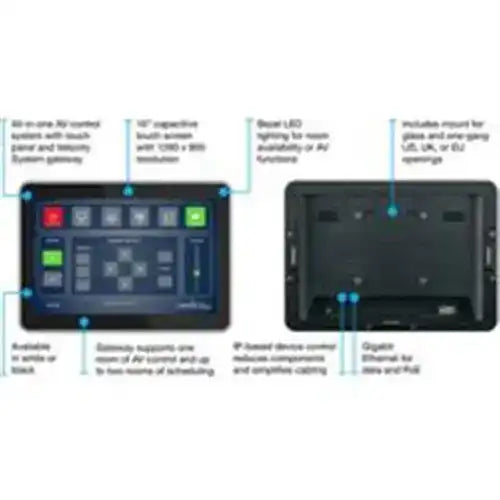

• All-in-One Touch Panel and Velocity Gateway — Combines a 10-inch touch panel user interface and Velocity System AV control gateway in a single device, eliminating the need for a separate control processor.
• Integrated Velocity System Gateway — Provides IP-based AV control for one room and room scheduling for up to two rooms directly from the device.
• 10.1-Inch Capacitive Touch Display — 1280x800 native resolution, 500 cd/m² brightness, 800:1 contrast, 5-point multitouch projected capacitive glass surface.
• Surround LED Lighting — Full-frame LED ring configurable for room scheduling status or AV control indicators; visible from the side in landscape or portrait orientation.
• PoE+ Powered — IEEE 802.3at PoE+ compliant; single Ethernet cable delivers both data and power, simplifying installation and reducing cable runs.

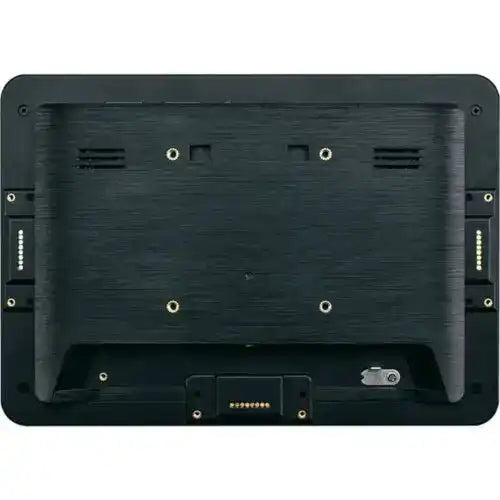

• VESA 75 Mount with Glass and Wall Hardware Included — Ships with glass mount and single-gang wall mount for immediate deployment; compatible with optional AT-VTP-VTM tabletop kit.
• Browser-Based Configuration — Intuitive web portal guides integrators through room setup, user interface design, and control macro creation; remote access via Velocity Cloud.
• Enterprise Network Support — Supports IEEE 802.1x authentication, DHCP/static IP, SNMP, SFTP, SMTP, SSH, and 10/100/1000 Mbps Ethernet.
• Dual Built-in Speakers — Two 2 W speakers for local audio feedback and notifications.
• Black Finish — Contemporary refined styling in matte black for a professional appearance in any commercial or educational environment.

Typical Applications

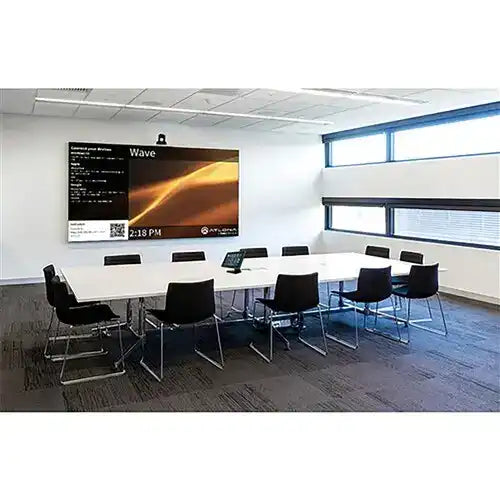

• Corporate conference rooms requiring self-contained AV control and room scheduling without a separate control processor
• University and K-12 classrooms with Velocity-based AV control for projectors, displays, and audio systems
• Hotel meeting rooms and event spaces with integrated room scheduling and AV device control
• Divisible rooms requiring flexible AV control configurations managed from a wall-mount panel
• Restaurant and bar AV control for display switching, digital signage, and background music
• Retail environments with touch panel control of video walls and digital signage

Technical Specifications

Frequently Asked Questions

Q: Does the AT-VTPG-1000VL-BL require a separate Velocity gateway or control processor?

No. The AT-VTPG-1000VL-BL includes an integrated Velocity System gateway that provides AV device control for one room and room scheduling for up to two rooms. This eliminates the need for a separate gateway appliance in single-room deployments, reducing system cost and complexity.

Q: How is the AT-VTPG-1000VL-BL powered?

The AT-VTPG-1000VL-BL is powered via IEEE 802.3at PoE+ (Power over Ethernet) through its RJ45 Ethernet port. A single Ethernet cable provides both data connectivity and power, eliminating the need for a local power supply or outlet at the installation point.

Q: What mounting options are available for the AT-VTPG-1000VL-BL?

The AT-VTPG-1000VL-BL ships with a glass mount and a single-gang wall mount for immediate out-of-box installation. The device uses the VESA 75 mounting standard, and is also compatible with the optional AT-VTP-VTM tabletop mounting kit for table-surface deployments.

Q: How is the Velocity system configured on the AT-VTPG-1000VL-BL?

Configuration is performed through an intuitive browser-based web portal that guides integrators through adding AV devices to the room, designing touch panel user interfaces, and defining control macros. Remote access to the configuration interface is available via Velocity Cloud.

Q: What is the purpose of the surround LED lighting on the AT-VTPG-1000VL-BL?

The LED ring surrounding the entire outer frame of the touch panel can be configured to display room scheduling status (for example, available vs. occupied) or to indicate AV control states. The LEDs are visible from the side of the panel in both landscape and portrait orientations, providing clear room status at a glance from the hallway or doorway.

Q: What is the difference between the AT-VTPG-1000VL-BL and the AT-VTP-1000VL-BL?

The AT-VTPG-1000VL-BL includes an integrated Velocity System gateway for standalone single-room AV control and scheduling, whereas the AT-VTP-1000VL-BL is a touch panel only, requiring connection to an external Velocity gateway or server. The VTPG model is the preferred choice when a self-contained, all-in-one solution is required.

Q: Where can I purchase the Atlona AT-VTPG-1000VL-BL?

The AT-VTPG-1000VL-BL is available through Creation Networks at creationnetworks.net. Creation Networks is an authorized Atlona reseller providing competitive pricing and expert support for commercial AV control system deployments.
