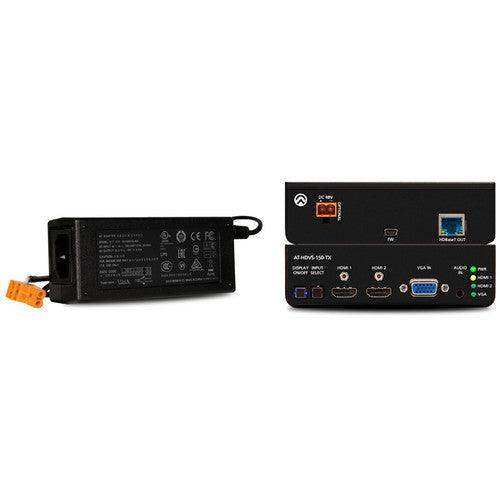

Atlona Three-Input HDMI/VGA to HDBaseT Switcher (AC Powered) - AT-HDVS-150-TX-PSK

Product Overview

The Atlona AT-HDVS-150-TX-PSK is a wall plate HDBaseT switcher that combines a 3×1 multi-format input selector with an HDBaseT transmitter in a single keystone-style wall plate enclosure. Designed for commercial AV integration in huddle rooms and small conference rooms, this HDBaseT wall plate switcher accepts two HDMI sources and one VGA source, then transmits the selected signal up to 230 feet (70 meters) over a single CAT cable. It is the locally powered wall plate HDBaseT transmitter for HDMI and VGA inputs, making it ideal for AV systems with an HDBaseT-equipped projector or display requiring a multi-format source switcher at the presentation point.

Product Description

The Atlona AT-HDVS-150-TX-PSK is the locally AC powered version of the AT-HDVS-150-TX, designed for permanent installation in a standard single-gang wall box using the included keystone plate. It provides a 3×1 switcher with two HDMI inputs and one VGA input, along with an integrated HDBaseT transmitter that extends the selected source signal up to 230 feet (70 meters) over a single CAT5e/6/6a cable to a compatible HDBaseT receiver or HDBaseT-equipped display. The unit supports 4K/UHD video at 60 Hz with 4:2:0 chroma subsampling when paired with a compatible HDBaseT receiver or display, and full HD 1080p at standard HDBaseT distances. Automatic input selection detects active sources and switches to them without manual intervention, simplifying operation in rooms where users connect different devices. Front panel controls allow manual input selection and display power on/off commands, giving presenters direct control at the wall plate. When connected to the AT-HDVS-150-RX receiver, the system supports automatic display control, waking the connected display when a source is detected and powering it off when no signal is present. The VGA input includes an analog stereo audio input for connecting legacy PC audio alongside the video signal. RS-232 and IR pass-through over the HDBaseT link provide control signal extension to the display or other devices at the far end. The AT-HDVS-150-TX-PSK is part of the Atlona HDVS Series, a family of products designed for straightforward integration in small meeting spaces, classrooms, and training rooms where HDMI and VGA source switching with HDBaseT extension is required.

Key Features

• 3×1 Multi-Format Switcher — Accepts two HDMI inputs and one VGA input, consolidating common presentation sources at a single wall plate location.
• HDBaseT Transmitter up to 230 ft (70 m) — Extends the selected AV signal over a single CAT5e/6/6a cable to eliminate long HDMI cable runs from the presentation point to the display.
• 4K/UHD Support at 60 Hz — Supports 4K/UHD video at 60 Hz with 4:2:0 chroma subsampling when used with a compatible HDBaseT receiver or display.
• Automatic Input Selection — Detects active source signals and switches automatically, reducing the need for manual source selection by presenters.
• Automatic Display Control — When paired with the AT-HDVS-150-RX, the system controls display power on and off based on source signal presence.
• Front Panel Input and Display Control — Physical buttons on the wall plate allow manual input switching and display power control directly at the presentation point.
• VGA with Analog Audio Input — The VGA input accommodates legacy PC sources with a companion analog stereo audio input for complete audio/video connectivity.
• RS-232 and IR Pass-Through — Control signals are extended over the HDBaseT link to the far-end receiver, enabling display and device control without separate control cable runs.
• Keystone Plate Wall Box Installation — Mounts in a standard single-gang wall box using the included keystone plate for a professional, permanent installation finish.
• Local AC Power — Powered by included AC adapter at the wall plate location, making it suitable for installations where power is not available at the HDBaseT receiver end.

Typical Applications

• Huddle rooms and small conference rooms requiring multi-format source switching at the table or wall
• Classrooms and training rooms with a mix of HDMI laptops and VGA legacy computers
• Corporate meeting spaces with fixed wall plate AV connections and HDBaseT-equipped projectors
• Boardrooms where a clean wall plate installation is preferred over a tabletop switcher
• Hospitality meeting rooms and event spaces with permanent AV infrastructure
• Government and institutional facilities requiring reliable, low-maintenance AV switching

Technical Specifications

Frequently Asked Questions

Q: What is the maximum cable distance for the AT-HDVS-150-TX-PSK?

The AT-HDVS-150-TX-PSK transmits HDBaseT signals up to 230 feet (70 meters) over a single CAT5e, CAT6, or CAT6a UTP cable to a compatible HDBaseT receiver or display.

Q: Does the AT-HDVS-150-TX-PSK support 4K resolution?

Yes. The unit supports 4K/UHD video at 60 Hz with 4:2:0 chroma subsampling when connected to a compatible HDBaseT-equipped display or receiver. Full 1080p HD is supported at standard distances.

Q: What is the difference between the AT-HDVS-150-TX-PSK and the AT-HDVS-150-TX?

The AT-HDVS-150-TX-PSK is the locally AC powered, wall plate version of the AT-HDVS-150-TX. It installs into a standard single-gang wall box using the included keystone plate and is powered by an included AC adapter at the wall plate location.

Q: Can the AT-HDVS-150-TX-PSK automatically switch to a new source when connected?

Yes. The unit includes automatic input selection, which detects active source signals and switches to them without requiring manual intervention from the presenter.

Q: Does the AT-HDVS-150-TX-PSK control the connected display automatically?

Automatic display control is available when the AT-HDVS-150-TX-PSK is used with the AT-HDVS-150-RX receiver. The system can wake the display when a source is detected and power it off when no signal is present.

Q: Can RS-232 and IR control signals be extended over the HDBaseT link?

Yes. RS-232 and IR control signals are passed through over the HDBaseT link, allowing control of the display or other devices at the far end without running separate control cables.

Q: What wall box does the AT-HDVS-150-TX-PSK fit into?

The AT-HDVS-150-TX-PSK uses the included keystone plate and mounts into a standard single-gang wall box, which is a common electrical box found in commercial construction.
