Atlona Power Supply with DIN Connector (24V, 5A) - AT-PS-245-D4
Product Overview

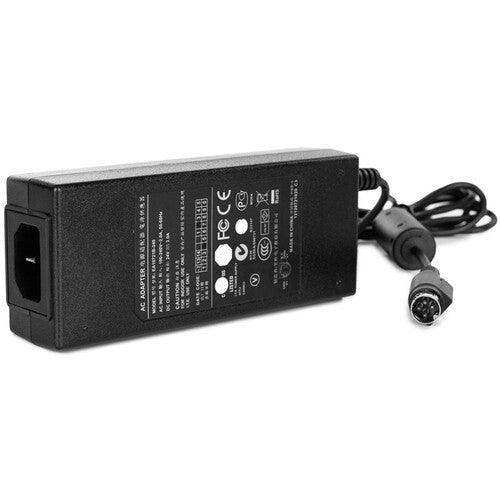

The Atlona AT-PS-245-D4 is a 24V 5A DC power supply with a 4-pin DIN connector, serving as both an optional power supply for the AT-OME-ST31A three-input HDMI/USB-C switcher and a direct replacement power supply for the AT-UHD-SW-510W 5x2 matrix switcher. This commercial-grade external DC power supply is rated for indoor use and certified for North America, Europe, and Australia/New Zealand.
Product Description
The AT-PS-245-D4 provides a reliable 24 VDC output at up to 5.0 amps, delivered through a 4-pin DIN connector that mates directly with compatible Atlona Omega Series and HDVS Series products. Its universal AC input accepts voltages from 100 to 240 V at 50/60 Hz, making it suitable for deployment in North American, European, and international facilities without voltage adapters. This power supply is intended as an optional second power supply for the AT-OME-ST31A switcher when additional power headroom is required, and it is also the factory-specified replacement unit for the AT-UHD-SW-510W. Rated for indoor use only, the AT-PS-245-D4 carries FCC, RCM, cULus, CE, and RoHS certifications.
Key Features
- 24 VDC / 5.0 A Output — Delivers consistent 24-volt DC power at up to 5.0 amps for compatible Atlona devices.
- 4-Pin DIN Connector — Direct mate connector for the AT-OME-ST31A and AT-UHD-SW-510W without adapters or modifications.
- Universal AC Input — Accepts 100–240 V AC, 50/60 Hz for worldwide compatibility in commercial facilities.
- Optional Supply for AT-OME-ST31A — Provides supplemental or primary power for the AT-OME-ST31A three-input HDMI/USB-C switcher.
- Replacement Supply for AT-UHD-SW-510W — Factory-specified replacement power supply for the AT-UHD-SW-510W 5x2 matrix switcher.
- Multi-Certification Compliance — Certified to FCC, RCM, cULus, CE, and RoHS standards for broad regional compliance.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | AT-PS-245-D4 |
| Output Voltage | 24 V DC |
| Output Current | 5.0 A |
| Output Connector | 4-pin DIN |
| AC Input | 100–240 V AC, 50–60 Hz, 2.0 A |
| Compatible Devices | AT-OME-ST31A, AT-OME-ST31A-KIT (optional); AT-UHD-SW-510W (replacement) |
| Usage Environment | Indoor use only |
| Certifications | FCC, RCM, cULus, CE, RoHS |
