Atlona Power Over Ethernet Mid-Span Power Supply - AT-PS-POE
Product Overview
The Atlona AT-PS-POE is a 48 VDC HDBaseT mid-span PoE power injector designed to remotely power HDBaseT transmitters and receivers operating on IEEE 802.3af Power over Ethernet. This HDBaseT PoE power supply supports 4K/UHD signals at 10.2 Gbps bandwidth, making it an ideal solution for legacy system upgrades and installations where endpoint devices require remote power without a PoE-capable switcher or matrix.
Product Description

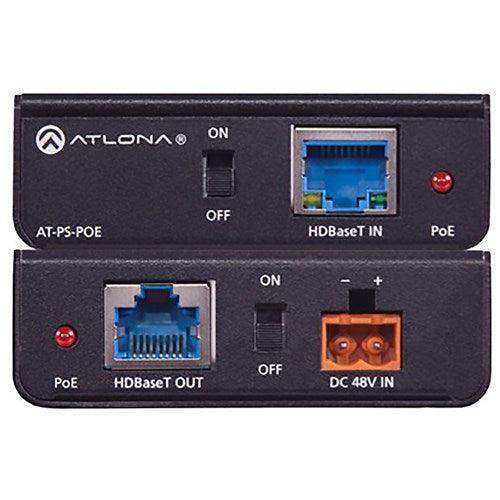

The AT-PS-POE inserts anywhere within an HDBaseT transmission line to supply 48 VDC to endpoint devices that lack a local power source. Its mid-span design allows power to be routed simultaneously to both upstream and downstream devices using a single injector, reducing hardware costs. Two slide switches provide independent control of the incoming and outgoing power lines, so power can be selectively directed only where needed. The compact, low-profile enclosure fits in confined spaces and keeps installations clean in public-facing environments. The AT-PS-POE also serves as an upgrade path for legacy PoCc systems, allowing UHD-EX Series receivers to operate alongside PRO2HD or HD-CAT Series transmitters.
Key Features
- 48 VDC IEEE 802.3af PoE Output — Supplies industry-standard remote power to compatible Atlona HDBaseT endpoint devices.
- Mid-Span Power Injection — Routes power upstream and downstream simultaneously from a single unit, reducing total hardware requirements.
- Independent Power Switches — Two slide switches allow selective power control for each line direction, sending power only where required.
- 4K/UHD Signal Support — 10.2 Gbps bandwidth accommodates 4K/UHD resolutions, multi-channel audio, HDCP 2.2, and full 3D pass-through.
- Legacy System Compatibility — Allows UHD-EX Series receivers to integrate with PRO2HD and HD-CAT Series systems, protecting prior investments.
- Low-Profile Enclosure — Compact form factor installs discreetly in tight spaces or out-of-sight locations in public environments.
- Included Accessories — Ships with user guide, 48 VDC power supply, and mounting brackets.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | AT-PS-POE |
| HDBaseT IN | 1 x RJ45 |
| HDBaseT OUT | 1 x RJ45 |
| DC Input Connector | Euroblock, 2-pin |
| Switches | 2 x Slide switch (ON/OFF) |
| Indicators | 1 x LED, red (PoE) |
| Bandwidth | 10.2 Gbps |
| HDCP | 2.2 |
| Power Consumption | Max 15.2 W |
| External Power Supply Input | 100–240 V AC, 50/60 Hz |
| External Power Supply Output | 48 V / 0.83 A DC |
| Operating Temperature | 0 to +50 °C (+32 to +122 °F) |
| Storage Temperature | -20 to +60 °C (-4 to +140 °F) |
| Humidity (RH) | 20% to 90%, non-condensing |
| Dimensions (H x W x D) | 0.96 x 2.89 x 2.77 in (24 x 73 x 70 mm) |
| Weight | 0.09 lbs (0.19 kg) |
| Certifications | CE, FCC (device); CE, FCC, Level VI, RoHS, cULus, RCM, CCC (power supply) |
