Atlona Omega Single Gang Wall Plate with USB-C Input and USB Data Support - AT-OME-EX-TX-WPC

Product Overview

The Atlona AT-OME-EX-TX-WPC is a wallplate HDBaseT transmitter designed for USB-C video and data connectivity in modern conference rooms and collaboration spaces. Part of the Atlona Omega Series, this HDBaseT wall plate transmitter with USB-C input extends 4K/UHD signals up to 330 feet over category cable, making it a reliable solution for USB-C HDBaseT extension in corporate, education, and government AV installations. Compatible with Mac, Chromebook, and Windows PCs, the AT-OME-EX-TX-WPC also provides integrated USB 2.0 extension for speakerphones, cameras, and peripherals required for software video conferencing systems.

Product Description

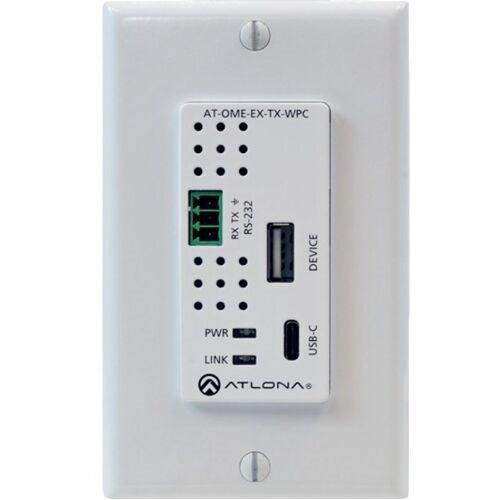

The Atlona AT-OME-EX-TX-WPC is a single-input HDBaseT transmitter housed in a US one-gang wallplate form factor, accepting USB-C as its AV and data input source. It transmits video up to 4K/UHD at 30 Hz with 4:4:4 chroma subsampling, along with embedded audio, RS-232 control, and USB 2.0 extension, over distances up to 330 feet (100 meters) using CAT6/6a/7 cable or up to 295 feet (90 meters) with CAT5e. The USB-C port operates in DisplayPort Alternate Mode and supports HDCP 2.2 copy protection, making it compatible with the latest protected media workflows. A built-in USB hub provides a host PC interface via USB-C and an additional USB Type-A port for connecting a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This USB extension capability, with a maximum data rate of 120 Mbps over HDBaseT, is well-suited to software-based video conferencing platforms used in huddle rooms, training rooms, and conference rooms. The AT-OME-EX-TX-WPC is remotely powered by a compatible Atlona HDBaseT receiver or switcher via IEEE 802.3af PoE, eliminating the need for a local power supply at the installation point. Interchangeable black and white wallplates and faceplates are included for flexible aesthetic integration. Multi-channel audio pass-through supports PCM, Dolby Atmos, DTS:X, and other advanced formats from connected sources. RS-232 bidirectional control at baud rates up to 115200 allows integration with third-party control systems. The device is field-updatable via its USB port. The AT-OME-EX-TX-WPC is compatible with Omega Series receivers including the AT-OME-EX-RX, AT-OME-SR21, and AT-OME-PS62, as well as switchers with HDBaseT inputs.

Key Features

• USB-C AV and Data Input — Accepts DisplayPort Alternate Mode video and USB 2.0 host data from a single USB-C connection, supporting Mac, Chromebook, and Windows PCs.
• 4K/UHD at 30 Hz with 4:4:4 Chroma Subsampling — Transmits video up to 4096x2160 or 3840x2160 at 30 Hz with full 4:4:4 color, plus 1080p at 60 Hz.
• HDBaseT Extension up to 330 Feet — Sends video, audio, USB, RS-232, and power over a single CAT6/6a/7 cable up to 100 meters; 90 meters with CAT5e.
• Integrated USB 2.0 Hub — USB-C host port plus one USB Type-A peripheral port extend USB devices such as cameras, speakerphones, and microphones up to 330 feet.
• Remote PoE Powering — Powered over HDBaseT via IEEE 802.3af from a compatible Atlona receiver or switcher, requiring no local AC power outlet.
• HDCP 2.2 Compliant — Supports the latest HDCP specification for secure transmission of protected 4K content between authenticated devices.
• Multi-Channel Audio Pass-Through — Passes PCM 2.0, LPCM 5.1/7.1, Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio from connected sources.
• RS-232 Bidirectional Control — Supports baud rates from 2400 to 115200 for integration with Atlona Velocity, Crestron, AMX, and other third-party control systems.
• US One-Gang Wallplate Form Factor — Fits standard wallplate openings; includes interchangeable black and white trim kits for a clean, finished installation.
• Field-Updatable Firmware — Device firmware can be updated on-site via the USB port, protecting long-term system investment.

Typical Applications

• Corporate conference rooms and huddle spaces requiring USB-C laptop connectivity
• University lecture halls and training rooms with touch-enabled or interactive displays
• Software video conferencing rooms using platforms such as Zoom, Microsoft Teams, or Webex
• Executive boardrooms where presenters connect Mac or Windows laptops via USB-C
• Government and federal meeting rooms requiring HDCP 2.2 compliant signal extension
• Hospitality AV systems with concealed, wallplate-based presenter connections
• Floor box or furniture-mounted AV connection points in open-plan workspaces

Technical Specifications

Frequently Asked Questions

Q: Does the AT-OME-EX-TX-WPC charge a connected USB-C laptop?

No. The USB-C port on the AT-OME-EX-TX-WPC supports AV output and USB data only. It does not supply power for device charging. Laptop charging must be handled by a separate power source.

Q: What USB-C functions does the AT-OME-EX-TX-WPC support?

The USB-C port supports DisplayPort Alternate Mode for video output and USB 2.0 host data. It does not support Thunderbolt protocols or device charging. It is compatible with USB-C ports on Macs, Chromebooks, and Windows PCs that output video over USB-C.

Q: What category cable is required for 330-foot 4K extension?

CAT6, CAT6a, or CAT7 cable is required to achieve 330-foot (100-meter) extension at 4K/UHD. CAT5e supports up to 295 feet (90 meters) at 4K and 330 feet (100 meters) at 1080p. Atlona recommends CAT6a or CAT7 shielded cable for optimal HDBaseT performance.

Q: Which Atlona receivers are compatible with the AT-OME-EX-TX-WPC?

The AT-OME-EX-TX-WPC is compatible with Omega Series receivers and switchers including the AT-OME-EX-RX, AT-OME-SR21, and AT-OME-PS62. It is not compatible with the Atlona HDVS-300 system for USB extension.

Q: How is the AT-OME-EX-TX-WPC powered?

The unit is powered remotely via IEEE 802.3af Power over Ethernet (PoE) supplied by a compatible Atlona HDBaseT receiver or switcher over the HDBaseT cable. No local AC power supply is required at the transmitter location.

Q: Can the USB hub support USB 3.0 devices?

Yes, USB 3.0 devices that are backward compatible with USB 2.0 are supported. However, the maximum data rate over HDBaseT is 120 Mbps, which is a USB 2.0 limitation. USB 3.0-specific speeds are not available over this extension path.

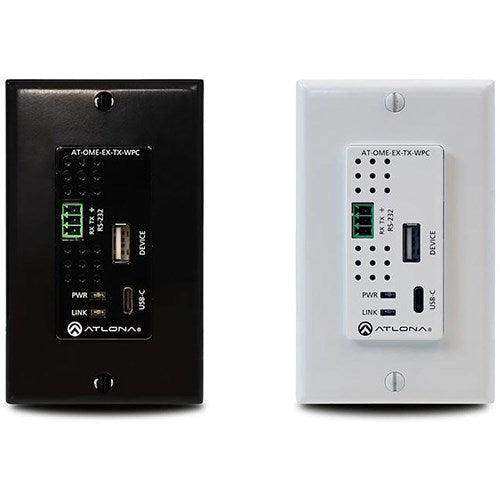

Q: Does the AT-OME-EX-TX-WPC include both black and white faceplates?

Yes. The unit ships with interchangeable black and white wallplates and faceplates, allowing integrators to match the installation environment without ordering additional parts.

Q: Is the AT-OME-EX-TX-WPC compatible with third-party HDBaseT devices?

The AT-OME-EX-TX-WPC is designed for use with Atlona Omega Series receivers. For USB extension functionality, a compatible Atlona receiver is required. AV-only HDBaseT signal may pass to third-party HDBaseT receivers, but USB hub functionality depends on receiver compatibility.
