Atlona Omega 6x2 Matrix Presentation Switcher - AT-OME-PS62

Product Overview

The Atlona AT-OME-PS62 is a 6x2 matrix presentation switcher designed for modern AV communications and collaboration environments, part of the Omega Series of commercial AV integration products. It accepts USB-C, HDBaseT, and HDMI inputs while delivering simultaneous HDMI and HDBaseT outputs with selectable mirrored or matrixed switching modes, making it the ideal 4K HDR conference room presentation switcher for meeting rooms, lecture halls, and active learning classrooms. The OME-PS62 extends AV, USB 2.0, power, and control up to 330 feet over category cable via HDBaseT, and its integrated USB hub supports software-based video conferencing platforms including Zoom, Microsoft Teams, Cisco Webex, and Skype for Business. With built-in 4K/60 4:4:4 upscaling and downscaling, microphone input with ducking, and automated display control, this HDBaseT matrix presentation switcher with USB-C input simplifies AV integration in commercial spaces.

Product Description

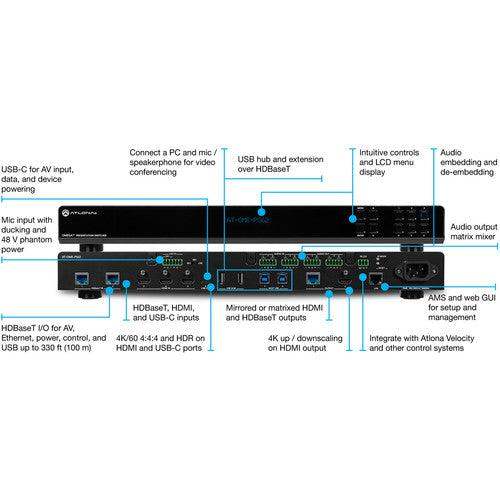

The Atlona AT-OME-PS62 combines matrix switching, 4K scaling, HDBaseT extension, USB hub, audio processing, and automated display control in a single 1U rack-mount unit. Three HDMI inputs and one USB-C input support video up to UHD/60 4:4:4, while two HDBaseT inputs accept remote AV sources over category cable up to 330 feet. The HDMI and HDBaseT outputs can operate in mirrored mode for simplified auto-switching, or in matrix mode for independent routing to two display locations. The USB-C port provides AV input via Alternate Mode, device charging up to 60 watts, and data connectivity to the integrated USB hub. The local USB 3.0 hub includes two USB Type-B ports for host PCs, two USB Type-A ports for peripherals, and USB extension over HDBaseT up to 330 feet at up to 120 Mbps. This makes the OME-PS62 an effective USB video conferencing switcher for connecting cameras, speakerphones, and other USB peripherals at remote locations. The unit features a microphone and line-level input with 48V phantom power, automatic ducking, five-band EQ, and an audio output matrix mixer for comprehensive sound reinforcement integration without additional audio equipment. Automatic display control via TCP/IP, RS-232, or CEC can power displays on or off based on source connection status, eliminating the need for a separate control system in smaller spaces. EDID and HDCP 2.2 management, integrated HDBaseT link testing, and remote management via Velocity Device Manager round out the feature set for professional AV integrators.

Key Features

• 6x2 Matrix Switching with USB-C, HDBaseT, and HDMI Inputs — Three HDMI, two HDBaseT, and one USB-C input with selectable mirrored or matrixed HDMI and HDBaseT outputs.
• USB-C Input for AV, Data, and Charging — Supports 4K/UHD video via Alternate Mode, device charging up to 60 W, and USB data to the local hub and over HDBaseT.
• Integrated USB 2.0 Hub and HDBaseT USB Extension — Connects up to three host PCs and two USB peripherals; extends USB 2.0 up to 330 ft (100 m) over HDBaseT for remote video conferencing.
• 4K/UHD Scaling for HDMI Output — 4K upscaling and downscaling with frame rate conversion; supports 4K/60 4:4:4 on local ports and 4K/60 4:2:0 over HDBaseT output.
• HDR Support on HDMI and USB-C Ports — Compatible with HDR10, Dolby Vision, and HLG at up to 60 Hz on HDMI and USB-C inputs and HDMI output.
• Comprehensive Audio Integration — Microphone/line input with 48V phantom power and auto ducking; five-band EQ per output; audio output matrix mixer for routing to analog outputs or embedded video.
• Automatic Display Control — Triggers display power on/off via TCP/IP, RS-232, or CEC based on source connection; includes adjustable projector lamp cooldown mode.
• Auto-Switching with HPD and Video Detection — Reliably selects active input based on hot plug detect and active video signals, including from DisplayPort adapters and DVRs.
• PoE Output over HDBaseT — Supplies IEEE 802.3af PoE over HDBaseT to power compatible Omega Series transmitters and receivers without local AC power.

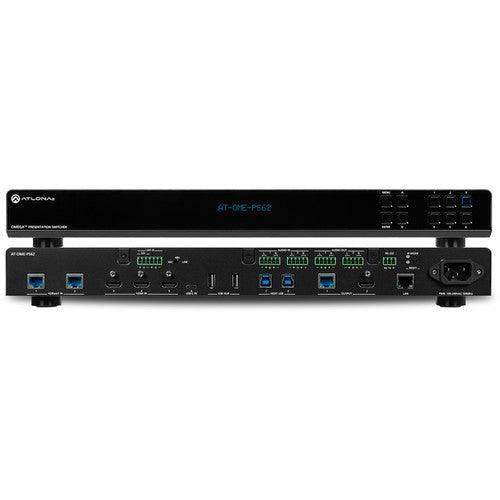

• 1U Rack-Mount Form Factor — Full-rack-width 1U enclosure with front panel LCD display, navigation buttons, and input selection controls for local operation.

Typical Applications

• Corporate meeting rooms and conference rooms requiring BYOD AV switching with video conferencing integration
• Video conferencing suites with Zoom, Microsoft Teams, Cisco Webex, or GoToMeeting workflows
• University lecture halls with HDBaseT extension to projectors and HDMI output to confidence monitors
• Active learning classrooms with student pod HDBaseT inputs and a primary display output
• Training rooms requiring dual-display matrix switching with microphone and audio processing
• Lecture capture and streaming installations using the secondary HDMI output with scaled-down resolution

Technical Specifications

Frequently Asked Questions

Q: What video conferencing platforms does the AT-OME-PS62 support?

The AT-OME-PS62 supports all major software-based video conferencing platforms including Zoom, Skype for Business, Microsoft Teams, Cisco Webex, and GoToMeeting. USB extension over HDBaseT allows a camera and other peripherals to be located remotely while connected to a host PC at the switcher location.

Q: Can the OME-PS62 independently route two different sources to two different displays?

Yes. When Matrix Mode is enabled, the HDMI and HDBaseT outputs can be independently routed to different inputs. When Matrix Mode is disabled, both outputs mirror the same source, enabling auto-switching based on source detection.

Q: What is the maximum extension distance for AV and USB over HDBaseT?

AV signals extend up to 330 feet (100 meters) over CAT6, CAT6a, or CAT7 cable, or up to 295 feet (90 meters) over CAT5e. USB 2.0 extends up to 330 feet (100 meters) over HDBaseT at a maximum of 120 Mbps data rate.

Q: Does the OME-PS62 require a separate control system for display automation?

No. The OME-PS62 includes built-in automatic display control that can power displays on when a source is connected and off when it is disconnected. Control is via TCP/IP, RS-232, or CEC. This eliminates the need for a separate control system in single-room environments, though it also integrates with Atlona Velocity and third-party control platforms.

Q: Which Atlona transmitters and receivers are compatible with the AT-OME-PS62?

The OME-PS62 is compatible with the Atlona Omega Series including the AT-OME-EX-TX, AT-OME-EX-TX-WP, AT-OME-EX-TX-WPC, AT-OME-SR21, AT-OME-RX21, AT-OME-RX31, and several HDVS Series transmitters. A full compatibility list is available on the Atlona product page. Note: the OME-PS62 is not compatible with the Atlona HDVS-300 for USB extension.

Q: Does the OME-PS62 support microphone input for sound reinforcement?

Yes. The OME-PS62 includes a 6-pin captive screw input that accepts a balanced/unbalanced line-level signal or a microphone with optional 48V phantom power. Auto ducking lowers program audio when the microphone is active. Five-band EQ is available per output for integration with installed speaker systems.
