Atlona Omega 4K/UHD HDMI Over HDBaseT TX Wallplate/RX with USB, Control & PoE - AT-OME-EX-WP-KIT

Product Overview

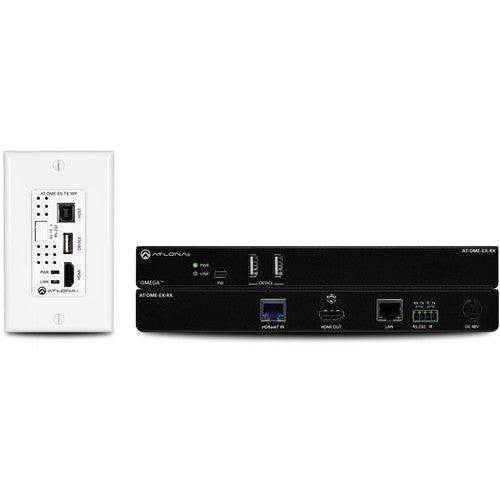

The Atlona AT-OME-EX-WP-KIT is a complete HDBaseT wall plate extender kit designed for HDMI video extension, USB 2.0, RS-232 control, and Power over Ethernet (PoE) over distances up to 330 feet (100 meters). Part of the Atlona Omega Series, this HDMI over HDBaseT extender kit is purpose-built for conference room AV integration, huddle room deployments, and soft-codec video conferencing environments where a clean wall plate installation is required. The kit includes the AT-OME-EX-TX-WP one-gang wallplate transmitter and the AT-OME-EX-RX receiver, delivering 4K/UHD video at 60 Hz with 4:2:0 chroma subsampling over standard category cable. With HDCP 2.2 compliance and integrated USB hub extension, the AT-OME-EX-WP-KIT supports unified communications platforms and simplifies installation in commercial AV spaces where local AC power at the transmitter location is unavailable.

Product Description

The AT-OME-EX-WP-KIT delivers HDMI video, embedded audio, USB 2.0, and RS-232 control over a single category cable run of up to 330 feet using CAT6/6a/7, or up to 295 feet with CAT5e. The wallplate transmitter (AT-OME-EX-TX-WP) fits a standard US one-gang wallplate opening and ships with both black and white interchangeable trim kits, accommodating a wide range of commercial interior finishes. The transmitter is powered remotely by the receiver over HDBaseT via IEEE 802.3af PoE, eliminating the need for local AC power at the wall or floor box installation point. This is a significant installation advantage in retrofit conference room or training room projects where adding an electrical outlet is not practical.

The integrated USB 2.0 extension supports data rates up to 120 Mbps over HDBaseT and is compatible with USB 2.0 devices, USB 3.0 devices operating in USB 2.0 mode, and legacy USB 1.x peripherals. The transmitter includes a USB Type-B host port for a connected PC and a USB Type-A port for a peripheral such as a speakerphone or microphone. The receiver provides two USB Type-A ports for devices such as a PTZ camera or soundbar at the display end. This architecture directly supports Zoom, Microsoft Teams, Cisco Webex, Skype for Business, and GoToMeeting deployments where the conference camera and speakerphone are separated from the host PC. Multi-channel audio pass-through supports PCM, Dolby Atmos, DTS:X, DTS-HD Master Audio, Dolby TrueHD, and other commercial AV audio formats. HDCP 2.2 compliance ensures protected content delivery between authenticated devices. Field firmware updates are supported via the USB port, and front-panel LEDs provide HDBaseT link and power status for on-site commissioning and troubleshooting. A free software utility from Atlona is available for HDBaseT cable link testing and real-time signal diagnostics.

Key Features

• 4K/UHD HDBaseT Extension up to 330 Feet — Extends 4K/60 4:2:0 HDMI video over CAT6/6a/7 up to 330 feet (100 meters), or 4K over CAT5e up to 295 feet (90 meters).
• US One-Gang Wallplate Transmitter — Fits standard single-gang wallplate openings with included black and white interchangeable trim kits for discreet installations on walls, in furniture, or floor boxes.
• Transmitter PoE from Receiver — The receiver supplies IEEE 802.3af Power over Ethernet to the transmitter over the HDBaseT link, removing the need for local AC power at the transmitter location.
• Integrated USB 2.0 Hub and Extension — Extends USB 2.0 up to 330 feet with a USB Type-B host port and USB Type-A peripheral port at the transmitter, plus two USB Type-A ports at the receiver for video conferencing peripherals.
• HDCP 2.2 Compliant — Supports the latest HDCP specification for secure transport of protected content between authenticated source and display devices.
• RS-232 Control Extension — Passes RS-232 control signals over HDBaseT at baud rates from 2400 to 115200, enabling remote display or source control from a third-party control system.
• Multi-Channel Audio Pass-Through — Supports PCM 2Ch, LPCM 5.1/7.1, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, and DTS Digital Surround without down-mixing or conversion.
• HDBaseT Link Testing Utility — A free Atlona software utility provides real-time HDBaseT link status and detailed HDMI signal diagnostics for fast commissioning and cable qualification.
• Field-Updatable Firmware — Both the transmitter and receiver support firmware updates via the USB port, ensuring long-term compatibility with AV infrastructure.
• Low-Profile Receiver Enclosure — The AT-OME-EX-RX measures 1.02 inches (26 mm) in height, allowing concealed installation behind wall-mounted displays or above projectors.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

Q: What cable type is required for 4K/UHD extension at full 330-foot range?

CAT6, CAT6a, or CAT7 cable is required to achieve 4K/UHD @ 60 Hz (4:2:0) extension at the maximum 330-foot (100-meter) distance. CAT5e cable supports 4K extension up to 295 feet (90 meters) and 1080p up to 330 feet.

Q: Does the AT-OME-EX-WP-KIT require a separate power supply for the wallplate transmitter?

No. The AT-OME-EX-RX receiver powers the AT-OME-EX-TX-WP transmitter remotely over the HDBaseT cable link using IEEE 802.3af PoE. Only the receiver requires a local AC power connection via the included external universal power supply.

Q: Which USB devices are compatible with the AT-OME-EX-WP-KIT?

The kit supports USB 2.0 devices, USB 3.0 devices that are backward-compatible with USB 2.0, and legacy USB 1.x peripherals. Maximum data rate over HDBaseT is 120 Mbps. Note that the AT-OME-EX-WP-KIT is not compatible with the Atlona HDVS-300 system for USB extension.

Q: Is the AT-OME-EX-WP-KIT compatible with Zoom, Microsoft Teams, and Cisco Webex?

Yes. The integrated USB extension is designed specifically for soft-codec and web-based conferencing platforms including Zoom, Microsoft Teams, Cisco Webex, Skype for Business, and GoToMeeting. The USB hub allows a host PC at the transmitter end to connect to a camera, speakerphone, or soundbar at the receiver end.

Q: What HDMI content protection does the AT-OME-EX-WP-KIT support?

The kit is fully HDCP 2.2 compliant, supporting the latest specification for High-bandwidth Digital Content Protection. It allows protected content to pass between authenticated source and display devices.

Q: Can the AT-OME-EX-WP-KIT be integrated with a third-party control system?

Yes. RS-232 control signals are passed through over HDBaseT, supporting baud rates from 2400 to 115200. The receiver also provides IR pass-through and a 10/100 Mbps Ethernet port for IP-based control integration with Atlona Velocity or third-party control systems such as Crestron, AMX, or Extron.

Q: What is the warranty on the AT-OME-EX-WP-KIT?

Atlona products are backed by a manufacturer warranty. For full warranty terms and conditions, visit the Atlona warranty page. For purchasing, configuration support, or volume pricing, contact Creation Networks at https://creationnetworks.net.

Q: Can the transmitter and receiver be purchased separately?

Yes. The AT-OME-EX-TX-WP wallplate transmitter and the AT-OME-EX-RX receiver are available individually for use with other compatible Atlona Omega Series integration products.
