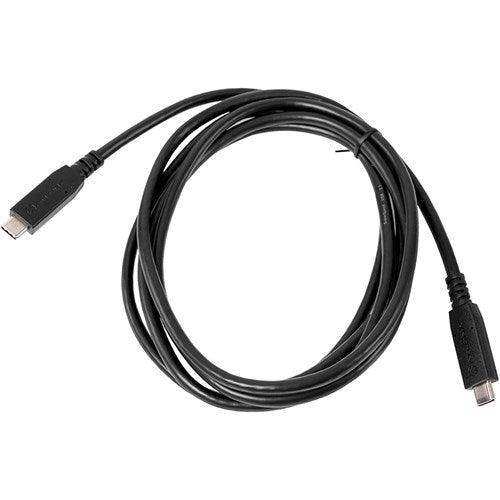

Atlona LinkConnect 2 Meter USB-C to USB-C Cable - AT-LC-UC2UC-2M
Product Overview
The Atlona AT-LC-UC2UC-2M is a 2-meter (6.6 ft) USB-C to USB-C cable from the LinkConnect series, supporting USB 3.2 Gen 1 data rates up to 5 Gbps, DisplayPort Alt Mode video at 4K @ 60 Hz, and USB Power Delivery up to 60 watts. This commercial-grade USB-C cable features a locking connector and is purpose-built for Atlona Omega Series and other AV switchers with USB-C inputs.
Product Description
The AT-LC-UC2UC-2M is a 2-meter USB-C cable designed for commercial AV installations where reliable USB-C connectivity is required for video, data, and power delivery over a single cable. Compatible with the USB 3.2 Gen 1 specification, it supports data transfer at up to 5 Gbps while simultaneously handling USB 2.0 traffic at up to 480 Mbps. DisplayPort Alt Mode enables video resolutions up to 4K @ 60 Hz, making the cable suitable for direct laptop-to-switcher connections. USB Power Delivery supports up to 60 watts (20 V @ 3 A), enabling device charging through compatible Atlona products. The locking USB-C connector prevents accidental cable pull-out from Atlona AV equipment. High-performance copper construction and triple shielding ensure signal integrity throughout the cable run. A 5-meter active cable version (AT-LC-UC2UC-5M) is also available for longer installation distances.
Key Features
- USB 3.2 Gen 1 (5 Gbps) — High-speed data transfer for USB peripherals while simultaneously supporting USB 2.0 (480 Mbps).
- DisplayPort Alt Mode — Carries 4K @ 60 Hz video over USB-C for direct source-to-switcher connections.
- USB Power Delivery (60W) — Charges laptops and devices at up to 60 watts (20 V @ 3 A) via compatible Atlona equipment.
- Locking USB-C Connector — Secures to compatible Atlona AV ports to prevent reliability issues from accidental disconnection.
- Triple Shielding — High-performance copper construction with triple shielding for signal integrity in commercial environments.
- CL2 Fire Rating — Suitable for in-wall and permanent commercial installation.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | AT-LC-UC2UC-2M |
| Connector | USB-C to USB-C (locking) |
| USB Specification | USB 3.2 Gen 1 |
| Data Rate | Up to 5 Gbps (USB 3.2 Gen 1); simultaneous USB 2.0 up to 480 Mbps |
| Video (DP Alt Mode) | 4K @ 60 Hz (up to 4Kx2K); VESA up to 2560x2048 |
| Bandwidth | 18 Gbps |
| Audio (DP Alt Mode) | Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Power Delivery | Up to 60 W (20 V @ 3 A) |
| Length | 2 m (6.6 ft) |
| Shielding | Triple Shielded |
| Cable Diameter | 7.3 mm (0.29 in) |
| Jacket Material | PVC |
| Conductor | 30 AWG |
| Connector Plating | Nickel-plated |
| Bend Radius | 100 mm |
| Fire Rating | CL2 |
