Product Overview

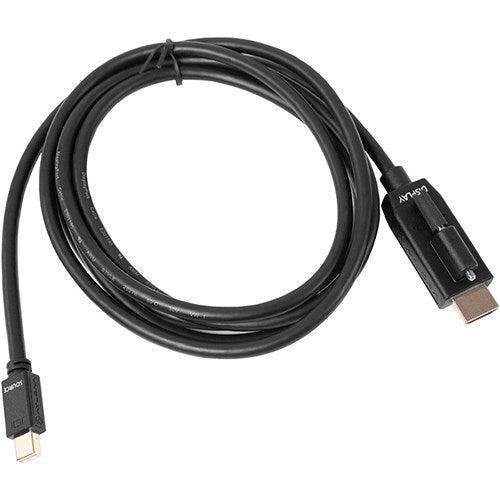

The Atlona AT-LC-MDP2H-2M is a 2-meter LinkConnect Mini DisplayPort to HDMI cable supporting 4K video at up to 21.6 Gbps bandwidth. This Mini DisplayPort to HDMI cable for conference rooms enables Mac and PC sources with Mini DP outputs to connect directly to HDMI-equipped Atlona switchers and displays, with a locking HDMI connector for secure commercial AV installation.
Product Description
The Atlona LinkConnect AT-LC-MDP2H-2M converts Mini DisplayPort output from Mac and PC sources to an HDMI signal compatible with professional AV equipment. Built with high-performance copper construction and triple shielding, it delivers 4K/UHD video at 60 Hz with 4:4:4 color depth over HDMI 2.0, alongside full audio pass-through including Dolby Atmos and DTS:X. The locking HDMI connector ensures a secure, reliable connection to Atlona switchers and displays, eliminating signal loss from loose cables. HDCP 2.3 compliance ensures compatibility with protected content sources. At 2 meters (6.6 ft), it is well suited to tabletop installations with the AT-PKT-3H enclosure or direct laptop-to-switcher connections in conference rooms and classrooms.
Key Features
- Mini DisplayPort to HDMI 2.0 - Converts Mini DP sources to HDMI for connection to professional AV displays and switchers.
- 21.6 Gbps Bandwidth - Supports 4K/UHD at 60 Hz with 4:4:4 color depth (DisplayPort 1.2a).
- HDCP 2.3 Compliance - Compatible with protected 4K content sources.
- Locking HDMI Connector - Ensures secure connection to compatible Atlona equipment.
- Triple Shielded Cable - Minimizes EMI/RFI for consistent signal integrity.
- Full Audio Pass-Through - Supports Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio.
- CL2 Fire Rating - Suitable for in-wall or enclosed-space routing in commercial AV installations.
Technical Specifications
| Specification | Value |
|---|---|
| Bandwidth | 21.6 Gbps |
| Video Standard (Source) | DisplayPort 1.2a |
| Video Standard (Output) | HDMI 2.0 |
| HDCP | 1.4 and up to 2.3 |
| Video Resolution | Up to 4Kx2K @ 60 Hz 4:4:4; VESA up to 2560x2048 |
| Audio | Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Length | 2 m (6.6 ft) |
| Shielding | Triple Shielded |
| Cable Diameter | 5.5 mm (0.22 in) |
| Jacket Material | PVC VW-1 |
| Conductor | 32 AWG |
| Connector | Gold-plated; Locking HDMI (M3 x 0.5 mm screw) |
| Bend Radius | 100 mm |
| Fire Rating | CL2 |
