Atlona LinkConnect 1 Meter Mini DisplayPort to HDMI Cable - AT-LC-MDP2H-1M
Atlona LinkConnect 1 Meter Mini DisplayPort to HDMI Cable - AT-LC-MDP2H-1M is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlona LinkConnect 1 Meter Mini DisplayPort to HDMI Cable - AT-LC-M...
Product Overview

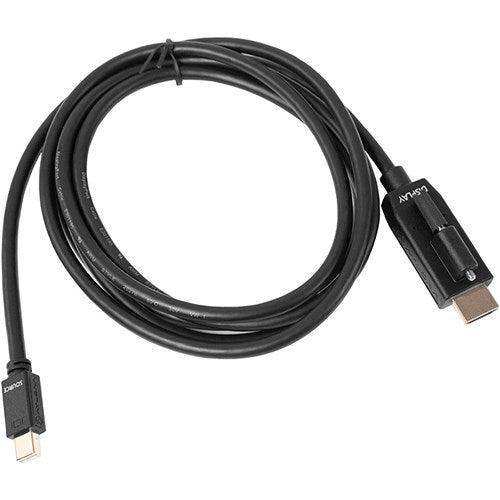

The Atlona AT-LC-MDP2H-1M is a 1-meter (3.3 ft) Mini DisplayPort to HDMI cable from the LinkConnect series, supporting 4K UHD video at up to 21.6 Gbps bandwidth for connecting Mini DP-equipped laptops and workstations to HDMI displays in commercial AV environments. This compact Mini DisplayPort to HDMI adapter cable is an ideal in-room connection cable for conference tables, lecterns, and desk installations where minimal cable length is preferred.
Product Description
The AT-LC-MDP2H-1M is the compact 1-meter version of Atlona’s LinkConnect MDP2H cable family, connecting a Mini DisplayPort 1.2a source directly to an HDMI display or AV switcher. With 21.6 Gbps bandwidth, the cable handles 4K UHD resolutions up to 4096x2160 at 60 Hz and a comprehensive range of HD, SD, and VESA resolutions. Audio pass-through includes PCM 2.0, LPCM 7.1, Dolby Atmos, DTS:X, and all major lossless formats. The locking HDMI connector prevents accidental disconnection from compatible Atlona equipment. The 1-meter length minimizes excess cable on conference tables and inside furniture, pairing cleanly with the AT-PKT-3H pocket enclosure and Omega Series switchers. Triple shielding and 32 AWG copper conductors deliver reliable signal integrity for permanent installations.
Key Features
- Mini DisplayPort 1.2a to HDMI — Direct connection for Mini DP laptops and workstations to HDMI displays or switchers.
- 21.6 Gbps Bandwidth — Supports 4K UHD resolutions up to 4096x2160 @ 60 Hz.
- Locking HDMI Connector — Secures to compatible Atlona equipment to eliminate disconnection errors.
- Full Audio Pass-Through — Passes Dolby Atmos, DTS:X, LPCM 7.1, and all standard audio formats.
- Triple Shielding — Reduces EMI for reliable signal transmission in commercial installations.
- 1-Meter Length — Minimizes cable clutter on conference tables and in desk/furniture installations.
- CL2 Fire Rating — Suitable for in-wall and commercial installation environments.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | AT-LC-MDP2H-1M |
| Signal Input | Mini DisplayPort 1.2a |
| Signal Output | HDMI |
| Bandwidth | 21.6 Gbps |
| Max Video Resolution | 4096x2160 @ 60 Hz |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2 (DP does not support 4:2:0) |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Audio Pass-Through | PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X |
| Audio Bit Depth | Up to 24 bits |
| Audio Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Length | 1 m (3.3 ft) |
| Shielding | Triple Shielded |
| Cable Diameter | 5.5 mm (0.22 in) |
| Jacket Material | PVC VW-1 |
| Conductor | 32 AWG |
| Connector Plating | Gold-plated |
| Bend Radius | 100 mm |
| Fire Rating | CL2 |
| Certifications | CE, FCC, ICES |
