Atlona HDBaseT Wall Plate Transmitter for HDMI and USB Type-C with USB Hub - AT-OME-SW21-TX-WPC

Product Overview

The Atlona AT-OME-SW21-TX-WPC is a 2x1 wallplate HDBaseT transmitter with USB-C and HDMI inputs, designed for conference rooms, huddle rooms, and training rooms where presenters need single-cable connectivity from a table box, lectern, or wall plate to a centrally located AV system. As part of the Omega Series, it transmits 4K/UHD video up to 4K/60 4:2:0, embedded audio, USB 2.0 data, and control signals over a single CAT6/6a/7 cable run up to 330 feet (100 meters) to a compatible HDBaseT receiver or switcher. The AT-OME-SW21-TX-WPC HDBaseT wall plate transmitter is HDCP 2.2 compliant and includes an integrated USB hub for connecting a peripheral device such as a speakerphone, microphone, or keyboard, making it ideal for Zoom, Microsoft Teams, Cisco Webex, and other software video conferencing platforms. The unit is remotely powered over HDBaseT from a compatible Omega Series receiver, removing the need for a local power outlet at the installation point.

Product Description

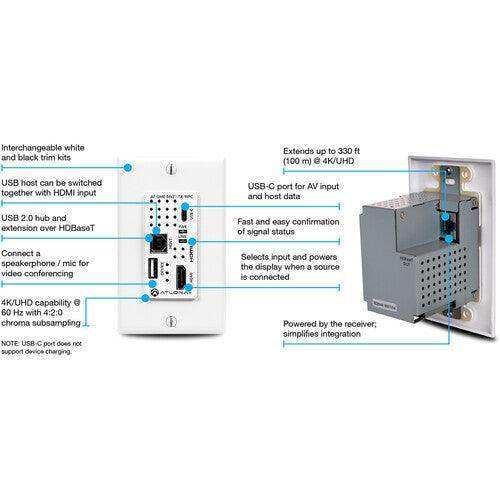

The AT-OME-SW21-TX-WPC occupies a standard US one-gang wallplate form factor and ships with interchangeable black and white wallplates and faceplates for integration into any room finish. It can be flush-mounted into a table box, desk, lectern, or floor box, or installed as a wall plate. The USB-C input supports DisplayPort Alternate Mode for AV output plus USB 2.0 data, providing a single-cable connection to MacBook, Chromebook, Windows, and compatible mobile devices for simultaneous AV presentation and video conferencing peripheral access. The HDMI input accommodates legacy laptops and other HDMI sources. Automatic input switching selects the active source using hot plug detect and video detection. The integrated USB hub includes a USB Type-B port and a USB-C port for host PC connection, plus a USB Type-A port for a single peripheral device such as a speakerphone or microphone. USB 2.0 extension over HDBaseT supports data rates up to 120 Mbps and is compatible with USB 2.0, USB 3.0 devices operating in USB 2.0 mode, and legacy USB 1.x peripherals. Video transmission supports 4K/UHD at 60 Hz with 4:2:0 chroma subsampling and 4K/30 with 4:4:4 over HDBaseT, with compatibility for sources up to 10 Gbps data rates including Ultra HD Blu-ray players and media players. HDCP 2.2 compliance supports the full chain of protected content delivery. The AT-OME-SW21-TX-WPC is remotely powered via IEEE 802.3af PoE supplied by a compatible Omega Series receiver or switcher over the HDBaseT cable, requiring no local AC power. Display control is passed through to the connected receiver via TCP/IP, RS-232, or CEC, enabling automatic display power management from the receiver end. Integrated HDBaseT link status monitoring allows field verification or troubleshooting of the twisted pair cable run through PC software, providing detailed test reporting without specialized test equipment. A 2-meter (6.5 ft) USB-C male-to-male cable (USB 3.1 Gen 1) is included. The unit is not compatible with the Atlona HDVS-300 system for USB extension.

Key Features

• USB-C Input with AV and USB Data — Supports DisplayPort Alternate Mode for simultaneous AV output and USB 2.0 data over a single USB-C cable connection to a laptop or tablet; does not supply device charging.
• 2x1 Auto-Switching (USB-C + HDMI) — Automatically selects the active input using hot plug detect and video detection; AV and USB host switching can be configured together or independently.
• USB 2.0 Hub with Extension over HDBaseT — Extends USB 2.0 up to 330 ft (100 m) with interfaces for two host PCs and one peripheral device; ideal for video conferencing cameras, speakerphones, and microphones.
• 4K/UHD HDBaseT Transmission up to 330 ft (100 m) — Transmits 4K/60 4:2:0 video, audio, control, and USB over a single CAT6/6a/7 cable; CAT5e reaches 295 ft (90 m).
• Remote Powering over HDBaseT (PoE) — Powered by a compatible Omega Series receiver or switcher via IEEE 802.3af PoE, eliminating the need for local AC power at the installation point.
• HDCP 2.2 Compliant — Supports the latest High-bandwidth Digital Content Protection standard across the full transmitter-to-receiver signal chain.

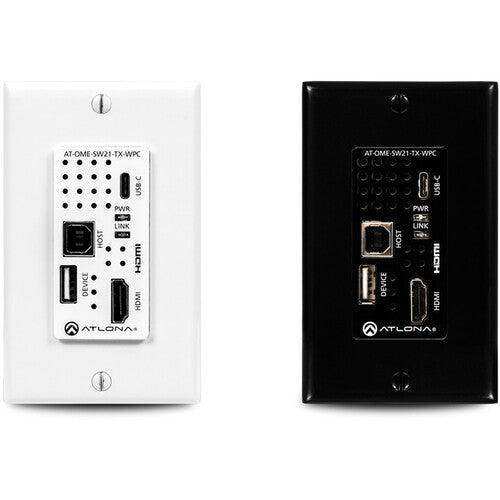

• One-Gang Wallplate Form Factor — Fits standard US single-gang wallplate cutouts; ships with interchangeable black and white wallplates and faceplates.
• Integrated HDBaseT Link Testing — Built-in cable integrity verification with detailed PC software reporting for fast commissioning and troubleshooting of the twisted pair run.
• Multi-Channel Audio Pass-Through — Passes PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, and DTS-HD Master Audio from HDMI or USB-C inputs.
• Display Control Pass-Through — Forwards TCP/IP, RS-232, and CEC display control commands to the connected Omega Series receiver for automatic display power management.
• Software Video Conferencing Compatibility — Validated for use with Zoom, Microsoft Teams, Cisco Webex, and GoToMeeting when paired with a compatible Omega Series receiver.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Commercial meeting space
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: Does the USB-C input on the AT-OME-SW21-TX-WPC charge connected devices?

No. The USB-C input supports DisplayPort Alternate Mode for AV output and USB 2.0 data transfer only. It does not supply power to connected devices.

Q: What receiver is required to use this transmitter?

The AT-OME-SW21-TX-WPC is designed for use with Atlona Omega Series receivers and switchers such as the AT-OME-EX-RX, AT-OME-SR21, or other compatible Omega Series HDBaseT receivers. The receiver must support IEEE 802.3af PoE output to remotely power this transmitter.

Q: Does the AT-OME-SW21-TX-WPC need its own power supply?

No. The unit is powered over the HDBaseT cable via IEEE 802.3af PoE supplied by the connected Omega Series receiver or switcher, making it suitable for clean installation in table boxes, floor boxes, and furniture without a local outlet.

Q: What USB peripherals are supported?

The integrated USB hub supports USB 2.0 devices and USB 3.0 devices operating in USB 2.0 compatibility mode, as well as legacy USB 1.x peripherals. Common devices include speakerphones, microphones, webcams (at USB 2.0 bandwidth), and keyboards/mice. Maximum USB data rate over HDBaseT is 120 Mbps.

Q: Which video conferencing platforms are compatible?

The AT-OME-SW21-TX-WPC is compatible with software-based conferencing platforms including Zoom, Microsoft Teams, Cisco Webex, and GoToMeeting when paired with a compatible Omega Series receiver for full USB extension.

Q: What cable type is required for full 330 ft (100 m) reach?

CAT6, CAT6a, or CAT7 cable is required for the full 330 ft (100 m) range at 4K/UHD. CAT5e cable achieves up to 295 ft (90 m) at 4K/UHD and up to 330 ft (100 m) at 1080p.

Q: What is the warranty on the AT-OME-SW21-TX-WPC?

Atlona products are covered under the Atlona Limited Warranty. Full terms are available at atlona.com/warranty. Contact Creation Networks at creationnetworks.net for purchasing, system design assistance, and support.
