Atlona AT-VTP-1000VL-BL Velocity 10" Touch Panel (Black)

Product Overview

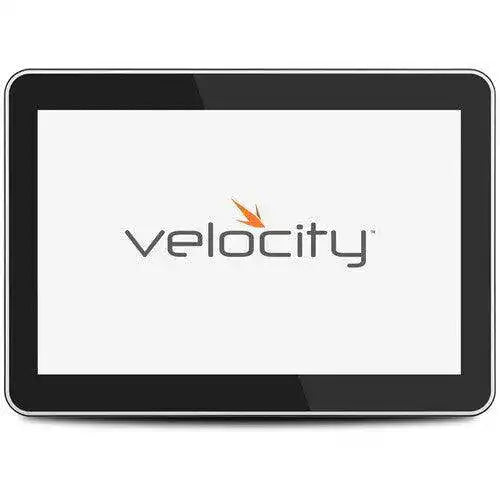

The Atlona AT-VTP-1000VL-BL is a Velocity 10-inch touch panel designed for both room scheduling and AV control in commercial installations. Featuring a 1280x800 capacitive glass display with integrated surround bezel LED lighting, this black touch panel delivers a clear visual indication of room availability and AV system status. Integrators specifying a 10-inch Velocity room scheduling touch panel or a PoE-powered AV control panel will find the AT-VTP-1000VL-BL combines versatility, streamlined setup, and polished aesthetics in a single platform compatible with Atlona's Velocity AV control ecosystem.

Product Description

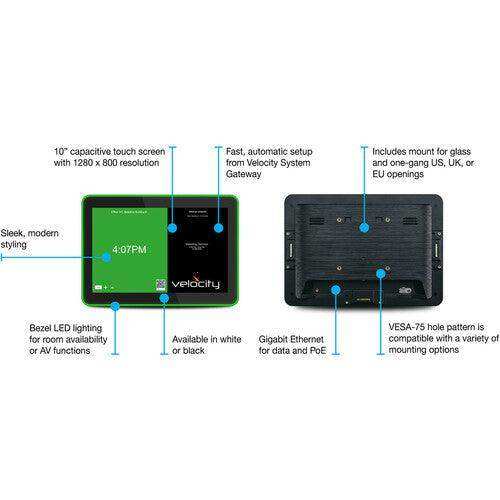

The Atlona AT-VTP-1000VL-BL is a Velocity 10-inch touch panel with integrated surround LED lighting, offered in a black finish. It features contemporary styling with a 1280x800 native resolution, 800:1 contrast ratio, and a 5-point projected capacitive glass surface that supports multi-touch and gesture interactions. The 10-inch display size provides ample real estate for complex AV control interfaces such as video wall management, high-density matrix switcher control, audio DSP adjustment, or multi-source scheduling displays. Bright LED lighting surrounds the entire outer bezel of the panel, making room occupancy status immediately visible in landscape or portrait orientation from down a hallway or across a lobby. The AT-VTP-1000VL-BL is powered exclusively through IEEE 802.3at PoE+, meaning a single Ethernet cable handles both data and power, simplifying installation and reducing cabling costs significantly. Room scheduling and AV control GUIs are automatically loaded from the Velocity hardware gateway (AT-VGW-HW) or software gateway (AT-VGW-SW) during system configuration, eliminating manual GUI uploads or complex programming. The included dual-purpose wall and glass mount is compatible with one-gang US, UK, and EU openings, and the standard VESA 75 pattern enables compatibility with third-party mounting solutions including the optional AT-VTP-VTM tabletop mount for lecterns and meeting tables. Configurable audio feedback provides audible confirmation for button presses. The AT-VTP-1000VL-BL is the current recommended replacement for the discontinued AT-VTP-1000VL-WH white variant and remains an active product in the Atlona Velocity lineup.

Key Features

• 10-inch Capacitive Touch Display — 1280x800 resolution, 800:1 contrast ratio, 500 cd/m² brightness, and 160° horizontal/vertical viewing angles for readability in diverse lighting conditions.
• Surround Bezel LED Lighting — Full-perimeter LED lighting on the outer frame provides immediate visual indication of room status (available/occupied) for scheduling or emphasis for AV control functions.
• Dual-Purpose Platform — A single panel model supports both room scheduling applications (calendar integration, room booking) and AV control GUIs (source switching, volume, display control) without requiring separate hardware.
• PoE+ Powered — IEEE 802.3at Power over Ethernet+ delivers both network data and power through a single CAT cable, eliminating local AC power wiring at the panel location.
• Automatic GUI Deployment — Room scheduling and AV control interfaces are automatically uploaded from the Velocity gateway during system setup, reducing commissioning time.

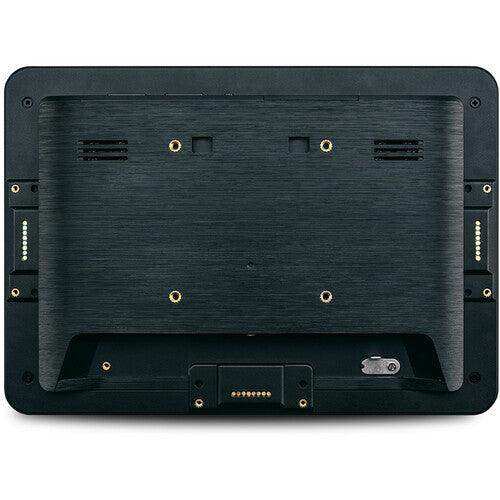

• Flexible Mounting Options — Includes a dual-purpose wall and glass mount for one-gang US/UK/EU openings; VESA 75 pattern supports third-party and optional tabletop mounts.
• Multi-Touch and Gesture Support — 5-point projected capacitive glass supports multi-finger gestures for intuitive user interaction.
• Integrated Speaker — Dual 2W speakers provide configurable audio feedback for button presses and system alerts.
• Gigabit Ethernet Port — Single RJ45 connection at 10/100/1000 Mbps handles both network communication and PoE+ power delivery.
• Black Finish (AT-VTP-1000VL-BL) — Contemporary matte black styling integrates with modern architectural interiors; available in black or white variants.

Typical Applications

• Room scheduling panels mounted outside conference rooms, huddle spaces, and meeting rooms with visual availability status via LED bezel lighting
• AV control interfaces in boardrooms, lecture halls, and large meeting rooms requiring complex source switching and multi-system control
• Video wall control and management in command centers, operations rooms, and digital signage environments
• Lobby and hallway room booking displays integrated with Microsoft Exchange, Office 365, or Google Calendar via Velocity gateway
• Lectern or table-top AV control using the optional AT-VTP-VTM tabletop mount
• Government, education, and corporate campuses requiring centrally managed, PoE-powered control panels across multiple rooms

Technical Specifications

Frequently Asked Questions

Q: Does the AT-VTP-1000VL-BL require a separate power supply?

No. The panel is powered entirely via IEEE 802.3at PoE+ through its single RJ45 Ethernet connection. No local AC outlet is required at the panel mounting location, which simplifies installation in walls, glass partitions, and furniture.

Q: What gateway is required to operate the AT-VTP-1000VL-BL?

The AT-VTP-1000VL-BL requires an Atlona Velocity gateway to function. Compatible gateways include the AT-VGW-HW hardware gateway (available in 3-room, 10-room, and 20-room configurations) and the AT-VGW-SW software gateway for virtualized deployments.

Q: Can this panel be used for both room scheduling and AV control?

Yes. A single AT-VTP-1000VL-BL can serve either application and can be reconfigured between scheduling and AV control use cases through the Velocity gateway. There is no need to purchase separate hardware for each function.

Q: What does the surround bezel LED lighting indicate?

The LED lighting on the outer frame is configurable to represent room occupancy status (for example, green for available and red for occupied in scheduling mode) or to provide visual emphasis for AV control functions. The LEDs are visible in both landscape and portrait orientation.

Q: What mounting options are available for the AT-VTP-1000VL-BL?

The panel includes a dual-purpose wall and glass mount compatible with one-gang openings in US, UK, and EU standard sizes. The VESA 75 pattern supports third-party mounting solutions. The optional AT-VTP-VTM tabletop mounting kit allows freestanding placement on a table or lectern. A flush mount kit (AT-VTP-FMK-10-BL) is also available separately.

Q: What calendar systems does the Velocity scheduling integration support?

When used with an Atlona Velocity gateway, the AT-VTP-1000VL-BL supports calendar integration with Microsoft Exchange, Office 365, and Google Calendar for real-time room booking and availability display.

Q: Is the AT-VTP-1000VL-BL compatible with third-party control systems?

The AT-VTP-1000VL-BL is designed specifically for the Atlona Velocity ecosystem and is not natively compatible with Crestron, AMX, Extron, or other third-party control systems. For cross-platform control panel requirements, consult Creation Networks for alternative solutions.
