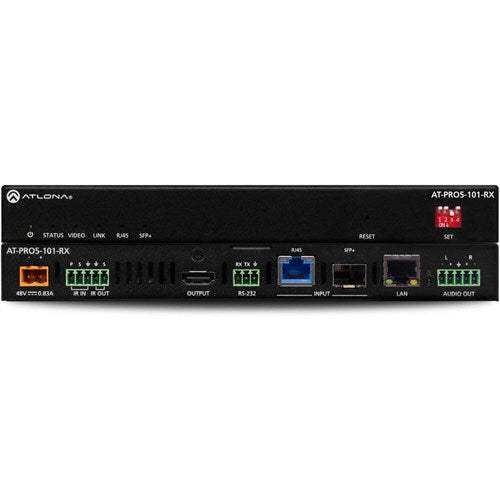

Atlona AT-PRO5-101-RX 4K Fiber/Copper Receiver

Product Overview

The Atlona AT-PRO5-101-RX is an SDVoE / PRO5 Series AV over IP receiver that accepts 10GbE connectivity from the AT-PRO5-MX810 matrix switcher and delivers 4K/UHD video at 60 Hz with 4:4:4 chroma sampling and HDR support to a local HDMI display. Designed for commercial AV distribution over long distances, this SDVoE 10G AV over IP receiver supports both copper CAT6a UTP cabling up to 330 feet (100 meters) and fiber optic cabling up to 10 kilometers via an SFP+ cage, providing the infrastructure flexibility required for large facilities such as universities, hospitals, courtrooms, and hospitality venues. HDCP 2.3 compliant and NDAA-889 compliant, the AT-PRO5-101-RX passes video, audio, Gigabit Ethernet, and bidirectional RS-232 and IR control signals in a compact, low-profile enclosure suited for behind-display and above-projector mounting.

Product Description

The Atlona AT-PRO5-101-RX is an AV extension receiver in the PRO5 Series, designed to work with the AT-PRO5-MX810 HDMI to SDVoE matrix switcher. It receives video, embedded audio, Gigabit Ethernet, and RS-232 and IR control signals from the PRO5-MX810 over 10GbE connectivity using SDVoE technology. The receiver is HDCP 2.3 compliant and supports 4K/UHD at 60 Hz with 4:4:4 chroma sampling and HDR formats including HDR10, Hybrid Log-Gamma (HLG), and Dolby Vision, at HDMI data rates up to 18 Gbps. The unit features an RJ45 port for copper CAT6a UTP cabling, providing extension up to 330 feet (100 meters) with IEEE 802.3af Power over Ethernet supplied by the PRO5-MX810, eliminating the need for local AC power at the display when using copper. An SFP+ cage accepts a compatible fiber optic transceiver module (sold separately) for extension distances from 38 meters up to 10 kilometers, making the AT-PRO5-101-RX suitable for installations with very long cable runs or where dark fiber in an existing cable plant can be utilized. Note that copper and fiber cannot be used simultaneously. Audio de-embedding extracts two-channel LPCM audio to a balanced analog output on a 5-pin captive screw connector for direct integration with external audio amplifiers and speaker systems. Multi-channel audio pass-through supports PCM, Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital Plus, and DTS Digital Surround. A Gigabit Ethernet port on the receiver provides network pass-through to a locally connected device at the display location. EDID management and HDCP 2.3 management features are accessible via an integrated web server through the PRO5-MX810 or, when Ethernet pass-through is disengaged, directly from the local network. The receiver is compatible with Atlona Velocity Device Manager for centralized configuration and firmware management across a facility. The low-profile enclosure measures 0.98 inches (25 mm) in height and includes surface mounting hardware for installation behind flat panel displays or above ceiling-mounted projectors. NDAA Section 889 compliance confirms the unit does not contain prohibited components, supporting deployment in government and regulated facilities.

Key Features

• SDVoE 10GbE Point-to-Point Extension — Receives AV, Gigabit Ethernet, and bidirectional RS-232 and IR control from the AT-PRO5-MX810 matrix switcher using high-performance SDVoE technology over 10 Gigabit Ethernet.
• Copper or Fiber Optic Connectivity — RJ45 port supports CAT6a UTP up to 330 ft (100 m); SFP+ cage accepts a compatible fiber optic module for distances up to 10 km (sold separately).
• 4K/UHD at 60 Hz with 4:4:4 Chroma and HDR — Supports 4K/UHD video at 60 Hz with full 4:4:4 chroma sampling and HDR10, HLG, and Dolby Vision formats at HDMI data rates up to 18 Gbps.
• HDCP 2.3 Compliant — Adheres to the latest content protection specification and includes HDCP management to control compliance reporting to sources based on the sink device.
• Remote PoE Powering over Copper — When receiving signals over the RJ45 port, the receiver is powered via IEEE 802.3af PoE from the PRO5-MX810, removing the need for local AC power at the display.
• Local Power Option — Can also be powered locally with the included AT-PS-48083-C power supply, required when using the SFP+ port for fiber optic extension.
• Balanced Analog Audio De-Embedding — Extracts two-channel LPCM audio from the HDMI stream to a balanced, 5-pin captive screw output for direct connection to external audio amplifiers.
• Gigabit Ethernet Pass-Through — 1000Base-T LAN port provides network connectivity to a device co-located with the display, leveraging the 10GbE infrastructure already in place.
• EDID and HDCP Management — Manages EDID and HDCP compliance between the matrix switcher, sources, and displays; configurable via integrated web server or Velocity Device Manager.
• NDAA Section 889 Compliant — Does not contain prohibited components under NDAA Section 889, supporting installation in government and regulated-sector facilities.
• Low-Profile Enclosure — At 0.98 inches (25 mm) tall, the unit fits in confined spaces behind flat panel displays and above ceiling-mounted projectors, with included surface mounting hardware.
• Velocity Device Manager Compatible — Supports centralized network-based configuration, monitoring, and firmware updates via Atlona Velocity Device Manager (available as a free virtual machine download).

Typical Applications

• University lecture halls and auditoriums requiring AV distribution to multiple displays at long distances from the equipment room
• Hospitality venues such as hotels and conference centers distributing content from a central matrix switcher to guest rooms and event spaces
• Courtrooms and government facilities requiring NDAA-compliant AV distribution infrastructure
• Large corporate campuses and boardrooms with long cable runs between the AV rack and remote displays
• Bars, restaurants, and retail venues distributing content to multiple screens throughout the space from a single equipment location
• Houses of worship with very long distances between the control position and screens at the front of the sanctuary or overflow areas
• Healthcare facilities distributing patient education and informational content to displays in corridors, waiting rooms, and patient areas

Technical Specifications

Frequently Asked Questions

Q: What matrix switcher does the AT-PRO5-101-RX work with?

The AT-PRO5-101-RX is designed to work with the Atlona AT-PRO5-MX810, an 8-input, 10-output HDMI to SDVoE matrix switcher. The PRO5-MX810 provides up to eight SDVoE extension outputs, each of which can connect to a PRO5-101-RX receiver.

Q: What is the maximum cable distance for the AT-PRO5-101-RX over copper?

Over CAT6a UTP copper cable, the AT-PRO5-101-RX supports extension up to 330 feet (100 meters) at both 4K/UHD and 1080p resolutions.

Q: Can the AT-PRO5-101-RX be used with fiber optic cabling?

Yes. The unit includes an SFP+ cage that accepts a compatible 10GbE fiber optic transceiver module (sold separately) for distances from 38 meters up to 10 kilometers. Copper and fiber cannot be used simultaneously.

Q: Does the AT-PRO5-101-RX require local power at the display?

When receiving signals over the RJ45 copper port, the receiver is powered by IEEE 802.3af PoE from the AT-PRO5-MX810, so local AC power is not required. When using the SFP+ port for fiber optic extension, local power via the included AT-PS-48083-C power supply is required.

Q: Does the AT-PRO5-101-RX support HDR?

Yes. The AT-PRO5-101-RX supports HDR10, Hybrid Log-Gamma (HLG), and Dolby Vision at up to 60 Hz, compatible with 4K/UHD HDR sources connected to the AT-PRO5-MX810.

Q: Is the AT-PRO5-101-RX compliant with NDAA Section 889?

Yes. The AT-PRO5-101-RX is NDAA Section 889 compliant and does not contain prohibited components, making it suitable for deployment in government and other regulated facilities.

Q: Can the AT-PRO5-101-RX pass RS-232 and IR control signals?

Yes. The receiver passes bidirectional RS-232 control signals (via 3-pin captive screw) and IR signals (via 5-pin captive screw) from the AT-PRO5-MX810 to devices at the display location, enabling control of displays and other equipment without separate control cable infrastructure.

Q: What fiber optic module is compatible with the SFP+ cage on the AT-PRO5-101-RX?

Atlona offers the AT-SFP-PLUS-10GE-SR SFP+ module for OM3 multi-mode fiber at distances up to 300 meters (980 feet). Atlona has also tested and validated third-party SFP+ modules from FS, Ubiquiti, Proline, and StarTech. Single-mode fiber modules can extend distances up to 10 kilometers.
