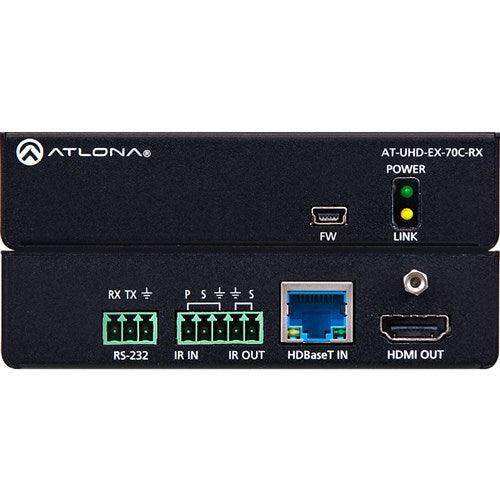

Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m) - AT-UHD-EX-70C-RX

Product Overview

The Atlona AT-UHD-EX-70C-RX is a 4K/UHD HDBaseT receiver that extends HDMI, RS-232, and IR control signals over a single category cable up to 230 feet (70 meters). Part of the UHD-EX Series, it is HDCP 2.2 compliant and supports 4K/UHD at 60 Hz with 4:2:0 chroma subsampling, making it a reliable choice for commercial HDMI over HDBaseT receiver applications in conference rooms, classrooms, and digital signage deployments. The receiver is remotely powered via 48V Power over Ethernet, eliminating the need for a local AC outlet behind the display or projector.

Product Description

The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable, with integrated RS-232 and IR control pass-through plus Power over Ethernet capability. Compatible with video signals up to 4K/UHD at 60 Hz with embedded multi-channel audio, the receiver supports 4K HDR10 at 24 Hz with 4:2:0 chroma subsampling and 10-bit color. It is HDCP 2.2 compliant and supports EDID management for proper source-to-display format negotiation. The unit features a compact quarter-rack-width metal enclosure with rear panel I/O ports for uncluttered wire management, making it well-suited for mounting behind flat panel displays and above projectors. It is remotely powered by the AT-UHD-EX-70C-TX transmitter or compatible Atlona switcher via 48V PoE over the HDBaseT link, removing the need for an AC outlet at the display location. Bidirectional RS-232 and IR control signals travel over the same HDBaseT link, enabling control of AV sources and displays without additional cable runs. A 12V-triggered IR input allows integration with standard IR receivers for source control. The included AT-IR-CS-TX IR emitter cable enables IR blasting to connected sources. Multi-channel audio pass-through supports PCM, Dolby Atmos, DTS:X, DTS-HD Master Audio, Dolby TrueHD, and all major Dolby and DTS formats. An included mounting bracket kit facilitates installation in tight spaces. The AT-UHD-EX-70C-RX is compatible with a wide range of Atlona switching products including the UHD-PRO3, UHD-CAT, SW, CLSO, and HDVS-200 Series.

Key Features

• 4K/UHD @ 60 Hz Support — Compatible with Ultra High Definition sources and displays at 60 frames per second with 4:2:0 chroma subsampling.
• HDBaseT Receiver Up to 230 Feet — Extends HDMI signals over CAT6a/7 up to 70 meters (230 ft) at 1080p; up to 40 meters (130 ft) at 4K/UHD.
• 4K HDR10 Support @ 24 Hz — Passes 4K HDR10 content at 24 Hz with 4:2:0 chroma subsampling and 10-bit color.
• HDCP 2.2 Compliant — Supports High-bandwidth Digital Content Protection up to version 2.2 for compatibility with protected content.
• Remote PoE Powering — IEEE 802.3af PoE supplied by transmitter or switcher over HDBaseT; no local AC outlet required at the display.
• Bidirectional RS-232 and IR Control — Passes RS-232 and IR control signals over HDBaseT in both directions, enabling full system control without additional cable infrastructure.
• 12V IR Input — Works with standard 12-volt IR receivers for source-side AV system control.
• Multi-Channel Audio Pass-Through — Supports PCM, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
• Quarter-Rack-Width Compact Enclosure — Low-profile 1-inch (25 mm) high enclosure designed for concealed mounting behind displays and above projectors.
• Rear Panel I/O Design — All connections on rear panel for clean installation and simplified wire management.

Typical Applications

• Conference rooms and boardrooms extending 4K HDMI from a wall-mounted transmitter to a display or projector
• Classrooms and lecture halls receiving AV signals from a podium transmitter to a projector or display
• Digital signage installations requiring centralized source distribution to remote displays via HDBaseT
• Corporate video walls and multi-display systems using Atlona matrix switchers with HDBaseT outputs
• Hospitality AV installations where displays are located far from AV equipment racks
• Government and courtroom AV systems requiring reliable control pass-through alongside video

Technical Specifications

Frequently Asked Questions

Q: What is the maximum transmission distance for 4K content with the AT-UHD-EX-70C-RX?

The AT-UHD-EX-70C-RX supports 4K/UHD signals up to 40 meters (130 feet) over CAT6a or CAT7 cable. For 1080p signals, the maximum distance extends to 70 meters (230 feet) over CAT6a/7.

Q: Does the AT-UHD-EX-70C-RX need its own power supply?

No. The receiver is powered remotely via 48V Power over Ethernet supplied by the AT-UHD-EX-70C-TX transmitter or compatible Atlona switcher over the HDBaseT cable. No local AC outlet is required at the display location.

Q: Which Atlona switchers are compatible with this receiver?

The AT-UHD-EX-70C-RX is compatible with Atlona's UHD-PRO3, UHD-CAT, SW, CLSO, and HDVS-200 Series products with HDBaseT outputs, as well as the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers.

Q: Does the receiver support RS-232 and IR control?

Yes. The AT-UHD-EX-70C-RX supports bidirectional RS-232 and IR control pass-through over the HDBaseT link. The 12V IR input is compatible with standard IR receivers, and the included AT-IR-CS-TX IR emitter cable enables IR blasting to connected source devices.

Q: Is the AT-UHD-EX-70C-RX compatible with HDR content?

Yes. The unit supports 4K HDR10 at 24 Hz with 4:2:0 chroma subsampling and 10-bit color, suitable for Ultra HD Blu-ray sources delivering HDR content at 24 frames per second.

Q: How is the receiver mounted?

The compact quarter-rack-width enclosure includes mounting brackets for installation behind displays, above projectors, or in confined spaces. The rear panel I/O layout facilitates clean cable management in these installations.
