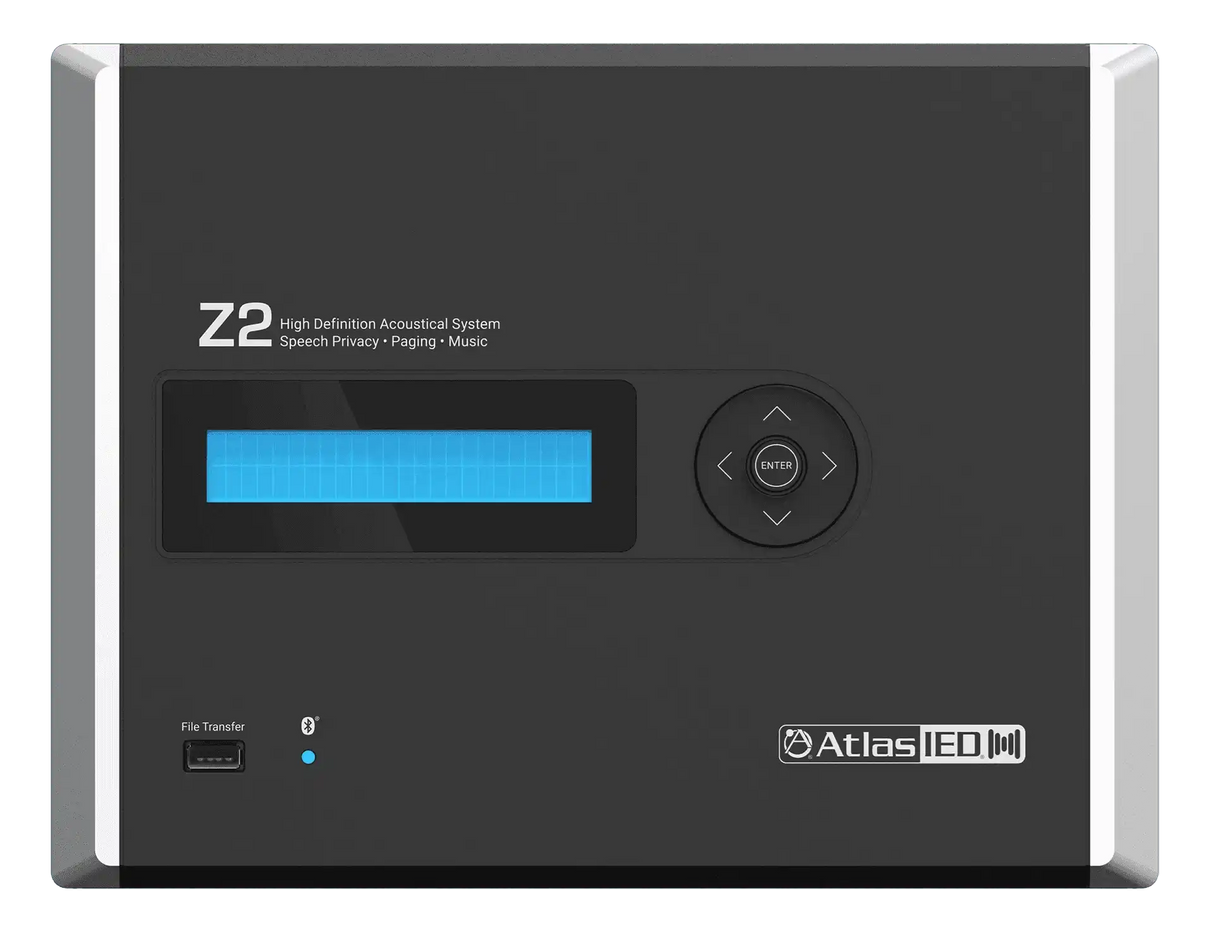

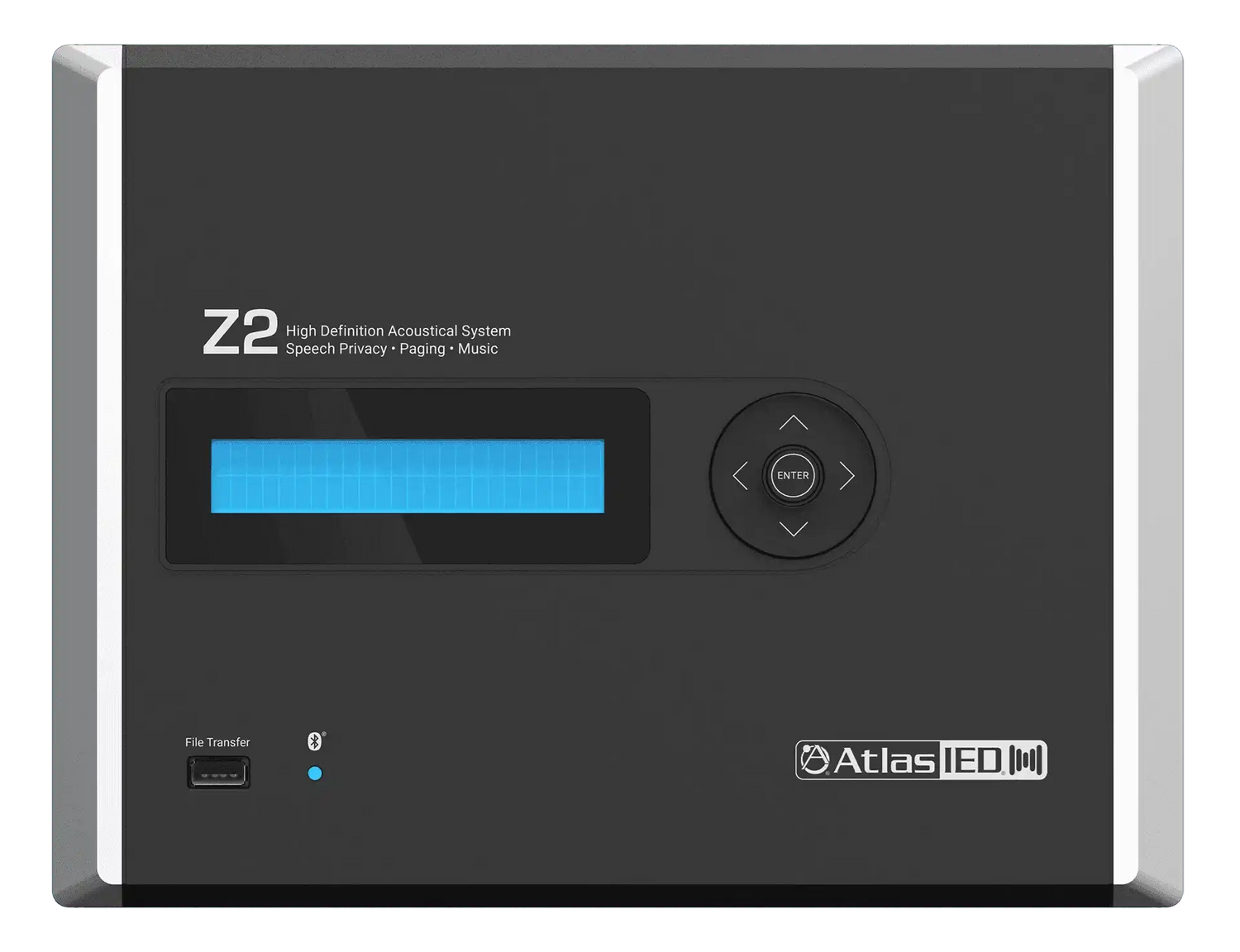

Atlas Sound Z2-B 2-Zone High Definition Acoustical System

Product Overview

The AtlasIED Z2-B is a 2-zone sound masking system that combines speech privacy, paging, and background music in a single all-in-one unit from the Z Series High Definition Acoustical System line. It delivers two zones of 70.7V/100V output and covers up to 7,000 square feet of indirect-field sound masking, making it a practical choice for open offices, medical suites, and conference areas where speech privacy is a design requirement. Integrators get a complete masking, paging, and BGM platform without assembling separate generators, mixers, and amplifiers. Installation is simplified by in-wall, surface, or rack mounting options with all wiring secured behind the front panel.

Product Description

The Z2-B provides two zones of 30-watt, 70.7V/100V output and operates in multiple configuration modes: two-zone indirect-field sound masking up to 7,000 square feet, a single zone of direct-field masking, or a split configuration with one zone masking and the other handling paging and background music. Integrated analog noise generators feed preconfigured masking filter presets selected by sound masking expert Dr. Bob Chanaud — the same proprietary Chanaud filters AtlasIED has deployed for over forty years, including in military and government facilities. Presets are user-selectable from the front panel to match the installation type, and custom presets built in the included PC project design software load via the front panel USB port.

For conference room speech privacy, the Z2-B includes a Speech Privacy Enhancement mode that can be engaged while a meeting is in progress, applying additional acoustical energy to the surrounding environment to raise privacy levels for room occupants. Activation is by hardwired switch, an iOS or Android application, or an optional wireless desktop or wall-mount switch, with an optional wired or wireless sign to indicate when the mode is active. On the audio side, a selectable mic/line input supports paging or recorded messaging with VOX priority muting, while a 3.5mm summed auxiliary input and Bluetooth streaming handle background music. Every input has EQ, high- and low-pass filters, and limiting, and each masking zone has independent EQ, level adjustment, and commissioning ramping — the controls a system designer needs to meet a specified masking spectrum. The unit mounts in-wall, on-wall, or in a rack, and the front panel display handles both programming and day-to-day end user control. Pair it with 70V loudspeakers from our AtlasIED collection to complete the commercial deployment.

Key Features

• 2-Zone 70.7V/100V Output — Two 30-watt zones cover masking, paging, and BGM from one chassis.
• Up to 7,000 sq ft Masking Coverage — Two-zone indirect-field configuration masks large open-plan areas.
• Chanaud Masking Filter Presets — Preconfigured spectra developed by Dr. Bob Chanaud and proven in government and military installations.
• Speech Privacy Enhancement Mode — On-demand boost in masking energy around conference rooms during sensitive meetings.
• Flexible Activation Options — Engage privacy mode by hardwired switch, iOS/Android app, or optional wireless switch with indicator sign.
• Integrated Paging and BGM — Selectable mic/line input with VOX priority muting plus 3.5mm aux and Bluetooth streaming.
• Per-Input Processing — EQ, high-pass and low-pass filters, and limiting on all inputs.
• Independent Zone Commissioning — Separate EQ, level, and masking ramp-up per zone for accurate system tuning.
• Three Mounting Options — In-wall, surface, or rack mount with all wiring secured behind the front panel.
• USB Preset Loading — Custom presets from the included PC design software load via the front panel USB port.

Typical Applications

• Conference rooms
• Boardrooms
• Commercial meeting spaces
• Government spaces
• Huddle rooms
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

How much area can the Z2-B mask?
In two-zone indirect-field configuration, the Z2-B covers up to 7,000 square feet of sound masking. It can also run a single direct-field zone or split masking and paging/BGM between the two zones.

Does it replace a separate paging amplifier and BGM source?
In many small-to-mid installations, yes. The mic/line input with VOX priority muting handles paging, and the aux input plus Bluetooth streaming cover background music — all with independent per-zone level control.

What is Speech Privacy Enhancement mode?
A user-activated mode that raises masking energy around a conference room while a meeting is in progress. It can be triggered by hardwired switch, mobile app, or an optional wireless switch, with an optional sign to indicate active status.

What speakers does it drive?
The Z2-B outputs 70.7V/100V constant-voltage audio, so it pairs with standard 70V commercial loudspeakers, including AtlasIED ceiling and surface-mount models.

How is the system commissioned?
Masking filter presets are selectable from the front panel, custom presets load via USB from the included PC design software, and each zone has independent EQ, level, and commissioning ramping for accurate tuning.

Is it suitable for secure government installations?
The Chanaud masking filters used in the Z Series have been approved and implemented in installations worldwide, including military and government facilities requiring secured speech privacy.

What warranty and support apply?
The Z2-B carries AtlasIED's manufacturer warranty, and Creation Networks provides design assistance and post-sale support for sound masking projects.
