Atlas Sound WPD-VC10K – Wall Plate 10kΩ Volume Level Control
Product Overview

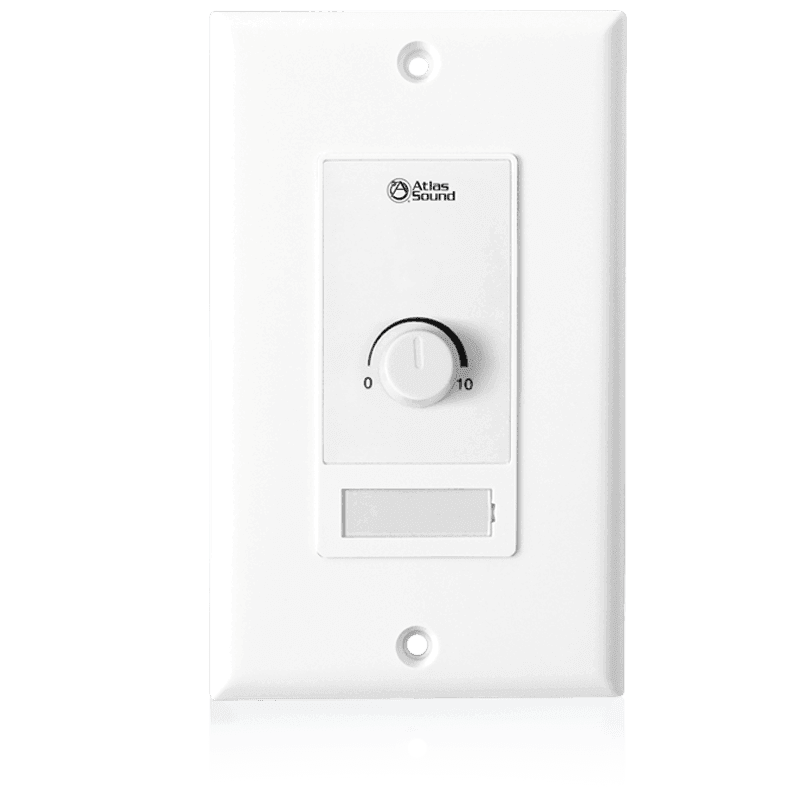

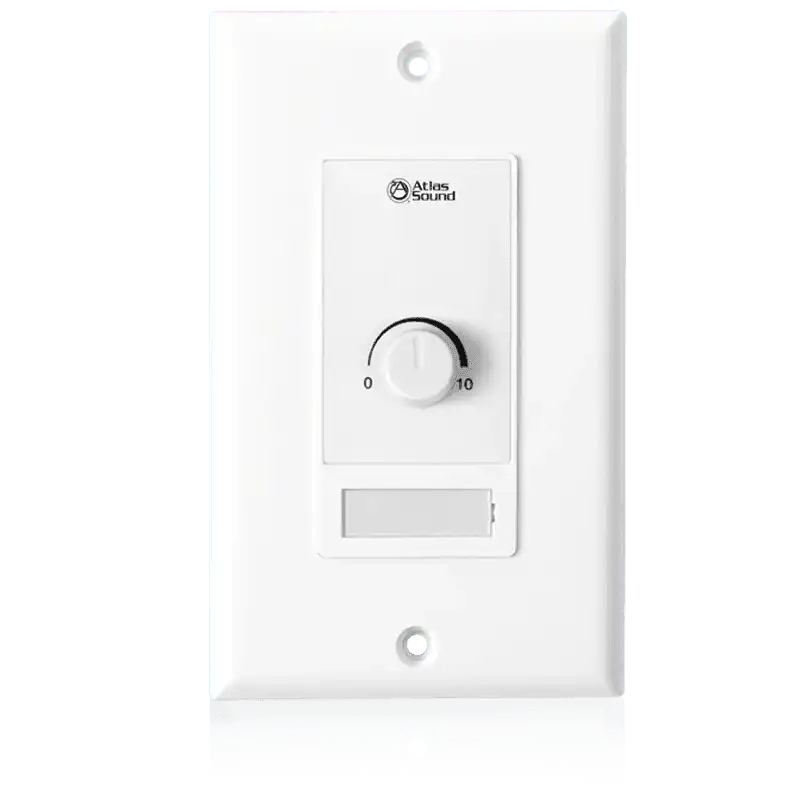

The Atlas Sound WPD-VC10K is a decor-style single-gang wall plate featuring a 10kΩ potentiometer for remote volume level control of compatible AtlasIED amplifiers and signal processors. Constructed from durable ABS plastic with a white finish, the WPD-VC10K installs in a standard single-gang electrical box and connects to the controlled unit via a 2 or 3 conductor interface using the included removable Phoenix-style connector. It is designed to operate at distances up to 200 feet from the amplifier using 22-gauge wire, making it practical for distributed AV systems across medium-sized commercial spaces.
Product Description
The WPD-VC10K provides local volume adjustment at listener locations in distributed commercial audio systems, allowing occupants in a specific zone to control audio levels without requiring access to rack-mounted amplifier controls. The 10kΩ potentiometer is compatible with the VCA (Voltage Controlled Attenuator) input of AtlasIED amplifiers that accept this control type. The 2 or 3 conductor interface accommodates both VCA 2-wire and VCA 3-wire configurations, giving the installer flexibility to match the wiring scheme of the controlled amplifier. The removable Phoenix-style 3-position connector with 5.08mm pin spacing simplifies field termination and allows the wall plate to be disconnected from the cable without cutting wires — a practical advantage when servicing or replacing the control. The removable label guard accepts a standard identification label, enabling clear designation of the zone or area controlled by each wall plate. ABS construction offers impact resistance and dimensional stability in standard commercial interior environments. The 4.5-inch height and 2.5-inch width match standard decor-style electrical plate dimensions, integrating with common wall plate frames for a finished appearance in offices, classrooms, and hospitality spaces.
Key Features
- 10kΩ Potentiometer — Compatible with VCA inputs on AtlasIED amplifiers for remote volume control.
- 2 or 3 Conductor Interface — Supports both VCA 2-wire and 3-wire configurations.
- Up to 200 ft Operating Distance — Functions at up to 200 feet from the controlled unit using 22-gauge wire.

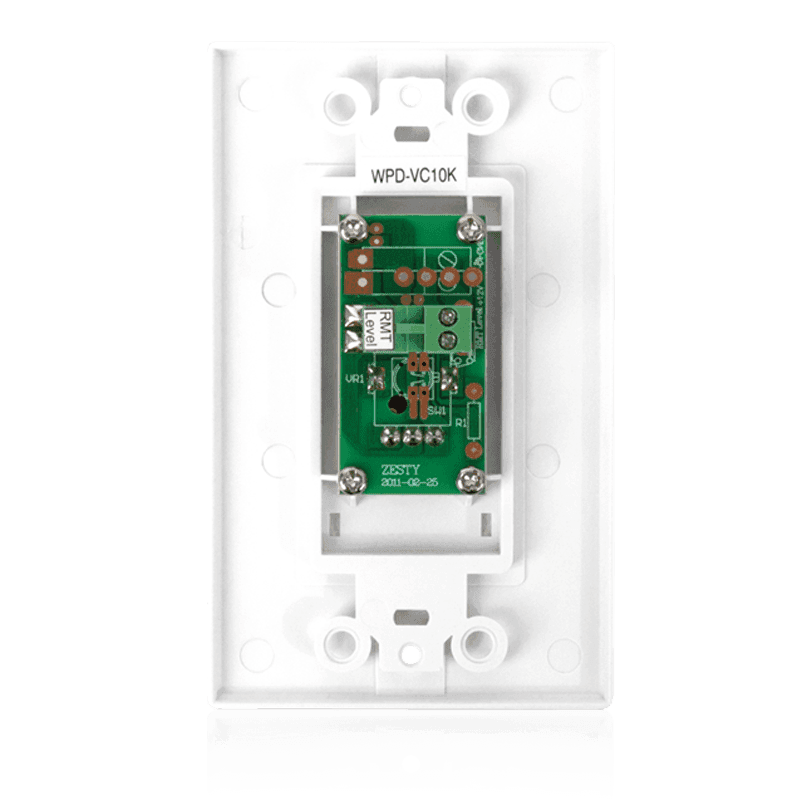

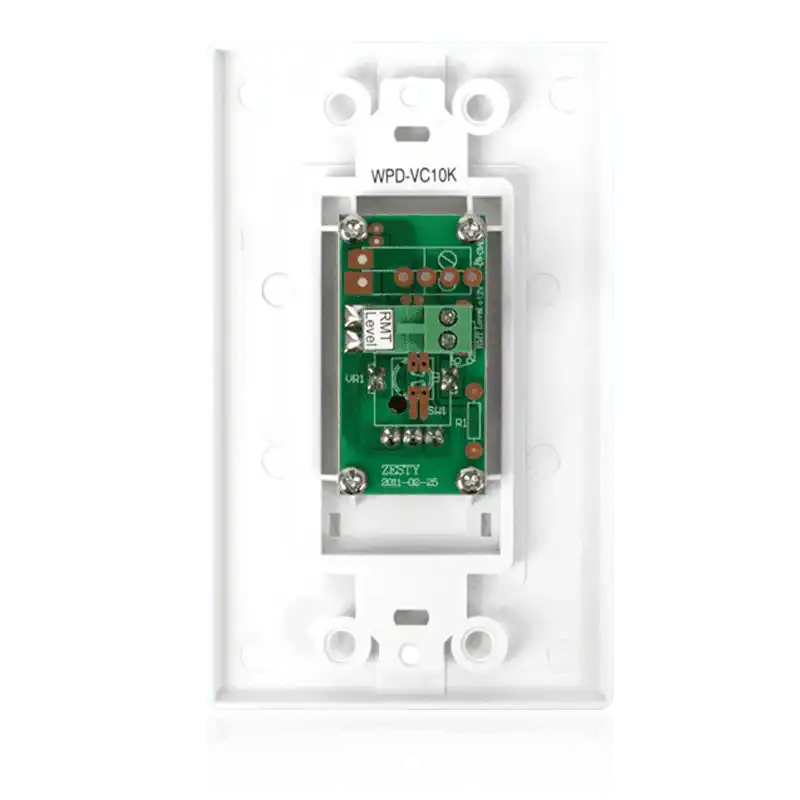

- Removable Phoenix Connector — 3-position, 5.08mm pin spacing for tool-free field termination and service.
- Removable Label Guard — Accepts zone identification labels for clean, professional installation documentation.
- Single-Gang Form Factor — Fits standard single-gang electrical boxes; white decor finish integrates with commercial interiors.
Technical Specifications
| Specification | Value |
|---|---|
| Control Type | 10kΩ Potentiometer |
| Interface | 2 or 3 Conductor |
| Connector | Removable 3-Position Phoenix, 5.08mm Pin Spacing |
| Max Cable Distance | 200 ft using 22-gauge wire |
| Height | 4.5" (114 mm) |
| Width | 2.5" (63 mm) |
| Depth | 0.24" (6.4 mm) |
| Material | ABS Plastic |
| Warranty | 60 months from date of purchase |
